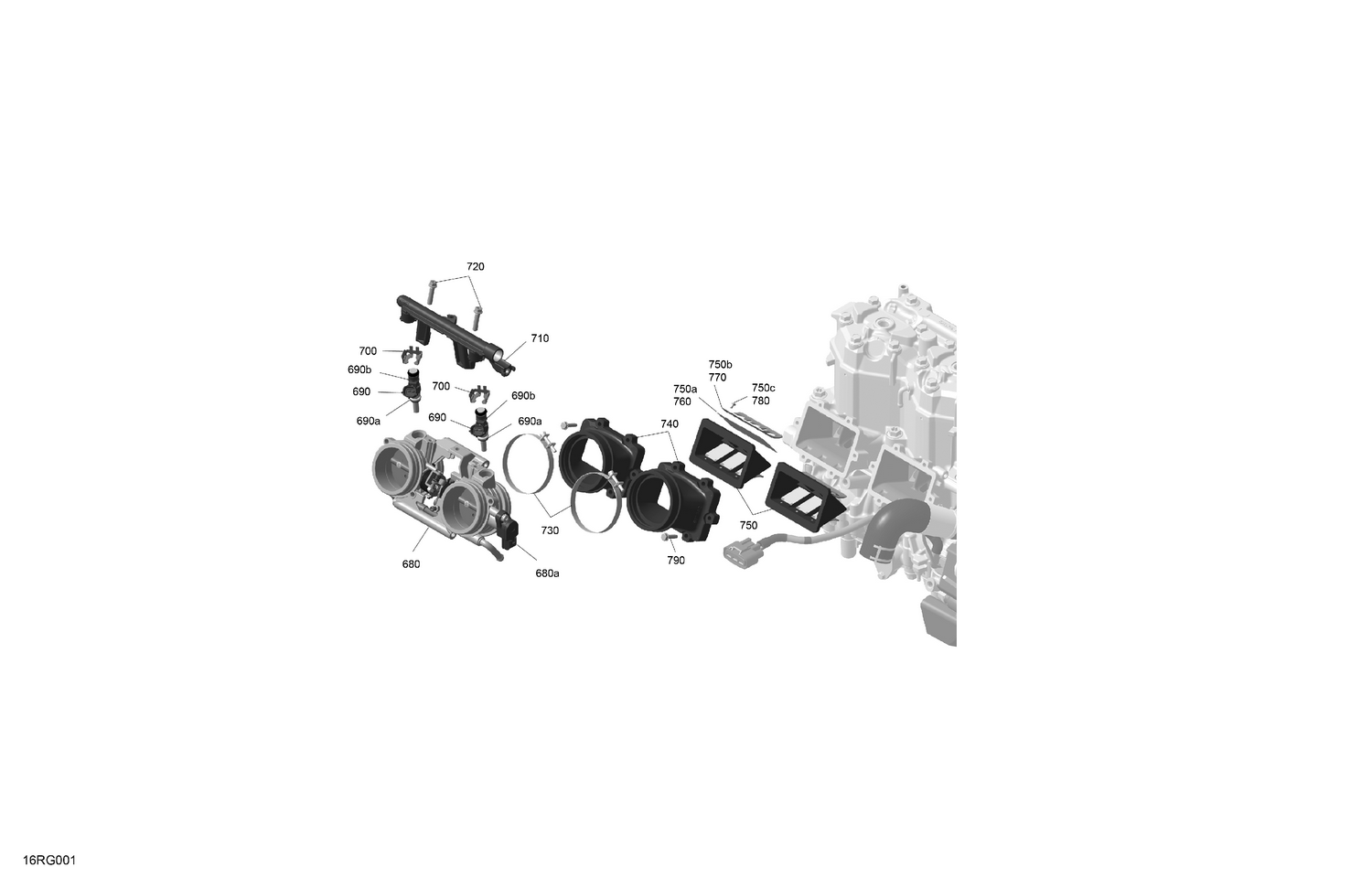

01- ROTAX - Electronic Fuel Injection
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 680a | 420866680 | Throttle Valve Position Sensor |
| 690a | 420831050 | O-Ring |
| 690b | 420430775 | O-Ring |
| 700 | 420853031 | Clip |
| 710 | 420874159 | Fuel Rail |
| 720 | 420440234 | Torx Flange Screw M6 X 25 |
| 730 | 420251208 | Clamp |
| 740 | 420867392 | Intake Socket |
| 750a | 420924532 | Reed Pedal |
| 750b | 420924539 | Reed Pedal Stop |
| 750c | 420941215 | Phillips Screw M3 X 5 |
| 760 | 420924532 | Reed Pedal |
| 770 | 420924539 | Reed Pedal Stop |
| 780 | 420941215 | Phillips Screw M3 X 5 |
