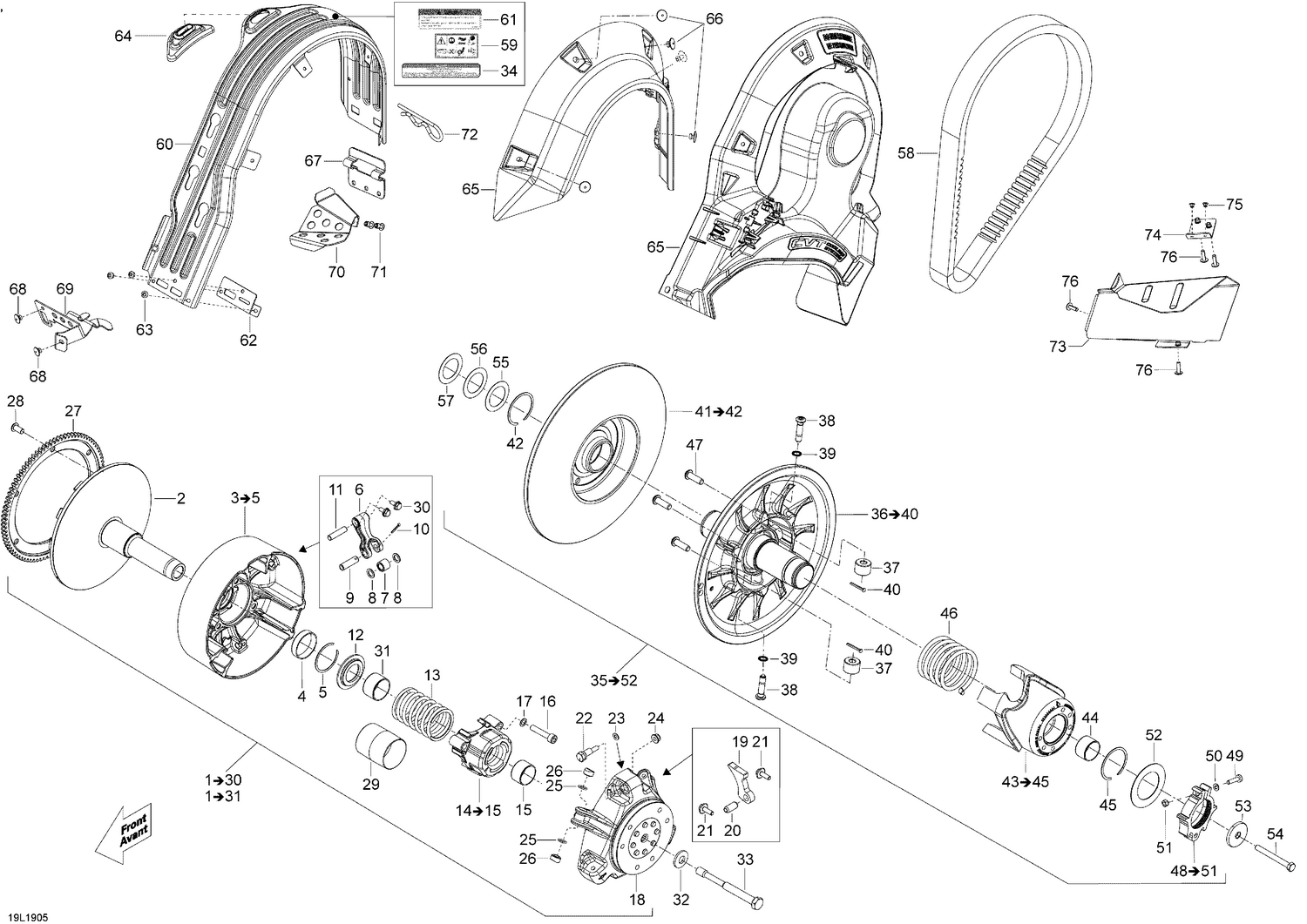

05- Pulley - Commander - 800R E-TEC
Parts (64)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 417223232 | Fixed Flange Ass'y |
| 4 | 417223086 | Cushion |
| 5 | 293370071 | Double Circlip |
| 6 | 417222671 | Roller ass'y |
| 7 | 417222947 | Roller |
| 8 | 417004302 | Stopper Washer |
| 9 | 417222594 | Long full pin 18.8g |
| 10 | 250400060 | Cotter Pin |
| 11 | 417223164 | Pannel Nut M6 X 1.0 |
| 12 | 417222312 | Jousen vaste |
| 13 | 414742100 | SPRING YELLOW/GREEN - Call your local BRP dealership |
| 15 | 417009204 | Spring (Red / White, 356-600N / 80-135lbs) |
| 16 | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 17 | 250200009 | Ribbed Lock Washer 8 mm |
| 18 | 417223666 | Governor Cup Ass'y |
| 19 | 417222508 | Ramp (413) |
| 20 | 250400050 | Spring Pin M10 X 22 |
| 21 | 250000418 | Flanged Hex. Screw M6 X 18, Scotch Grip |
| 22 | 417223501 | Calibration Screw |
| 23 | 417005600 | Drive Pulley Bolt |
| 24 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 25 | 732401030 | Driven Pulley Ass'y |
| 26 | 417223271 | Fixed Flange Ass'y |
| 27 | 417225071 | Ring Gear_Starter This part replaces 417223739. |
| 28 | 250000533 | Hex. Flanged Screw M8 x 16, Scotch Grip |
| 29 | 417009205 | Loctite 271, 10ml |
| 30 | 250000416 | Hex. Flanged Screw M6 x 16, Scotch Grip |
| 31 | 417223471 | Bushing |
| 32 | 250200144 | Conical Spring Washer M14 |
| 33 | 417300409 | TRA 7 Bolt (M14 X 153.5 mm) |
| 34 | 516005503 | Decal, Notice, Drive Pulley Bolt |
| 36 | 417127466 | Fixed Flange Ass'y |
| 41 | 417127366 | Sliding Flange Ass'y |
| 43 | 417127411 | Cam Ass'y (40º) |
| 46 | 417127243 | Spring (White / White, 476-705N / 107-158lbs) |
| 47 | 250000757 | Screw-Torx Button Head M8 X 25 S.Gr |
| 48 | 415129604 | Pulley Adjuster Ass'y |
| 49 | 205052544 | Socket Head Screw M10 x 1.5 |
| 50 | 234051410 | Flat Washer M5 |
| 51 | 232551414 | Elastic Stop Nut M5 |
| 52 | 417127155 | Washer |
| 53 | 517302322 | Vahvike aluslevy |
| 54 | 207287544 | Hex. Cap Screw M8 X 75 |
| 55 | 417300252 | Spacer |
| 56 | 417300265 | Spacer |
| 57 | 504112000 | Justering bricka |
| 58 | 417300571 | Drive Belt This part replaces 417300531. |
| 59 | 516003919 | Warning label (EU models) |
| 60 | 417300357 | Belt Guard |
| 61 | 516006900 | Driven Pulley Shield Warning Decal |
| 62 | 417300380 | Reinforcement |
| 63 | 390909200 | Avex Rivet |
| 64 | 417300381 | Guide rubber |
| 65 | 417300441 | Reinforcement |
| 66 | 293150103 | Pop Rivet 3/16 |
| 67 | 417300363 | Belt Guard Bracket |
| 68 | 293150104 | Pop Rivet 3/16 |
| 69 | 417300364 | Belt Guard Bracket |
| 70 | 518325626 | Brake tube protector |
| 71 | 293150163 | Rivet Hucklok |
| 72 | 114045200 | Hair Pin |
| 74 | 417300497 | Air Duct Bracket |
| 75 | 293150102 | Rivet avex 12 mm. |
| 76 | 250000722 | Torx Truss Screw M6 x 20 |
