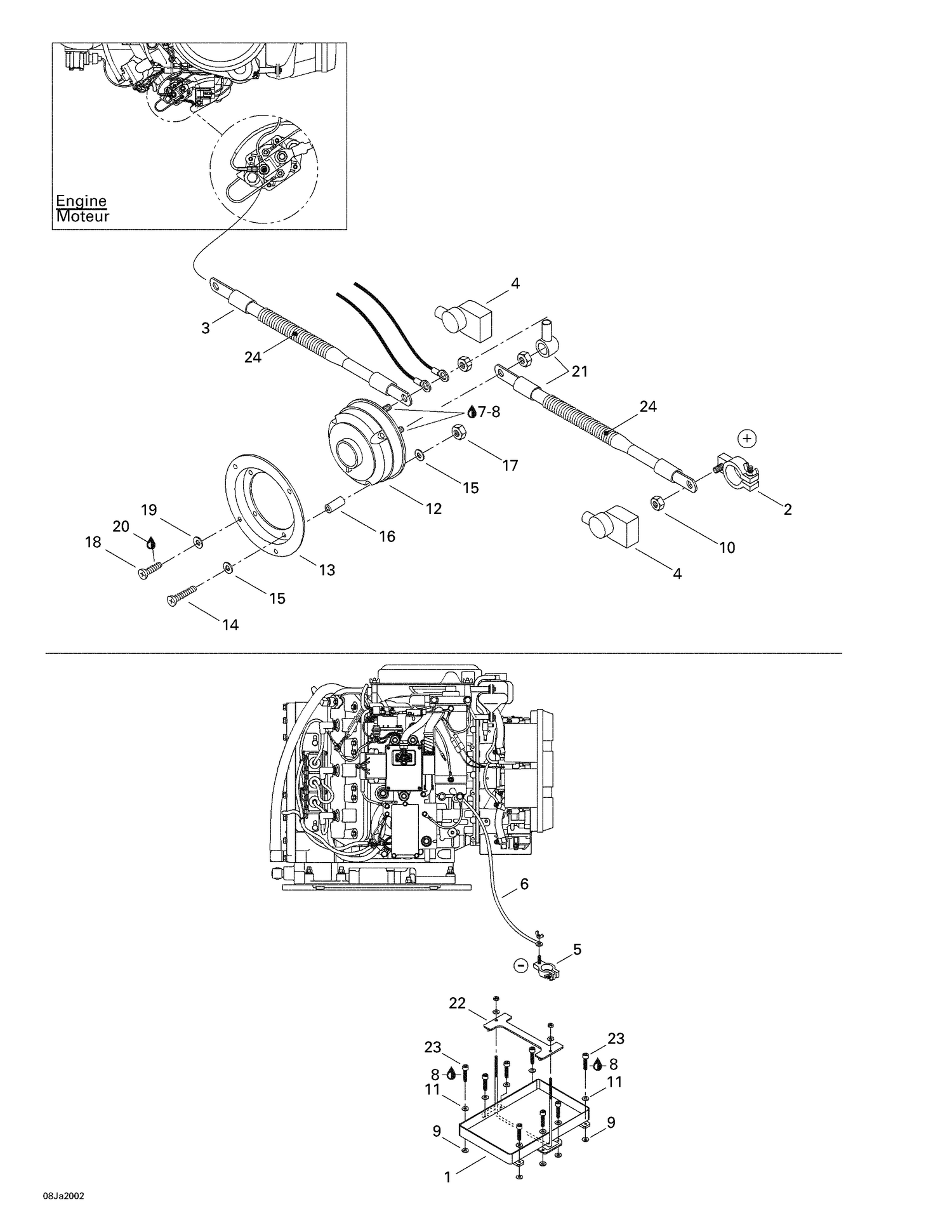

| Ref | Part Number | Description |
|---|
| 1 |
204471008 |
BATTERY SUPPORT - Call your local BRP dealership This part replaces 204470341. |
| 2 |
204470349 |
POSITIVE BATTERY POLE - Call your local BRP dealership |
| 3 |
204470386 |
Positive Cable, Red |
| 4 |
204470388 |
Red Boot |
| 5 |
204470348 |
NEGATIVE BATTERY POLE - Call your local BRP dealership |
| 6 |
204470389 |
Battery Ground Cable |
| 7 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 8 |
293800060 |
Loctite 243, 10 ml |
| 9 |
211200029 |
FLAT WASHER, PLASTIC - Call your local BRP dealership |
| 10 |
211100063 |
HEX. NUT 3/8-16 - Call your local BRP dealership |
| 11 |
234061600 |
Stainless Flat Washer M6 |
| 12 |
204470329 |
Battery Switch |
| 13 |
204470259 |
SWITCH SUPPORT - Call your local BRP dealership |
| 14 |
208652560 |
Phillips Screw M5 X 25 |
| 15 |
234051600 |
Flat Washer M5, Stainless |
| 16 |
204470330 |
NYLON SPACER - Call your local BRP dealership |
| 17 |
232551600 |
Hex. Elastic Nut M5 |
| 18 |
208642560 |
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership |
| 19 |
234041600 |
Flat Washer 4 mm, Stainless |
| 20 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 21 |
204470387 |
Positive Switch Cable |
| 22 |
204471290 |
TOP BATTERY SUPPORT - Call your local BRP dealership This part replaces 204470340. |
| 23 |
205062560 |
Socket Head Screw M6 X 25 |
