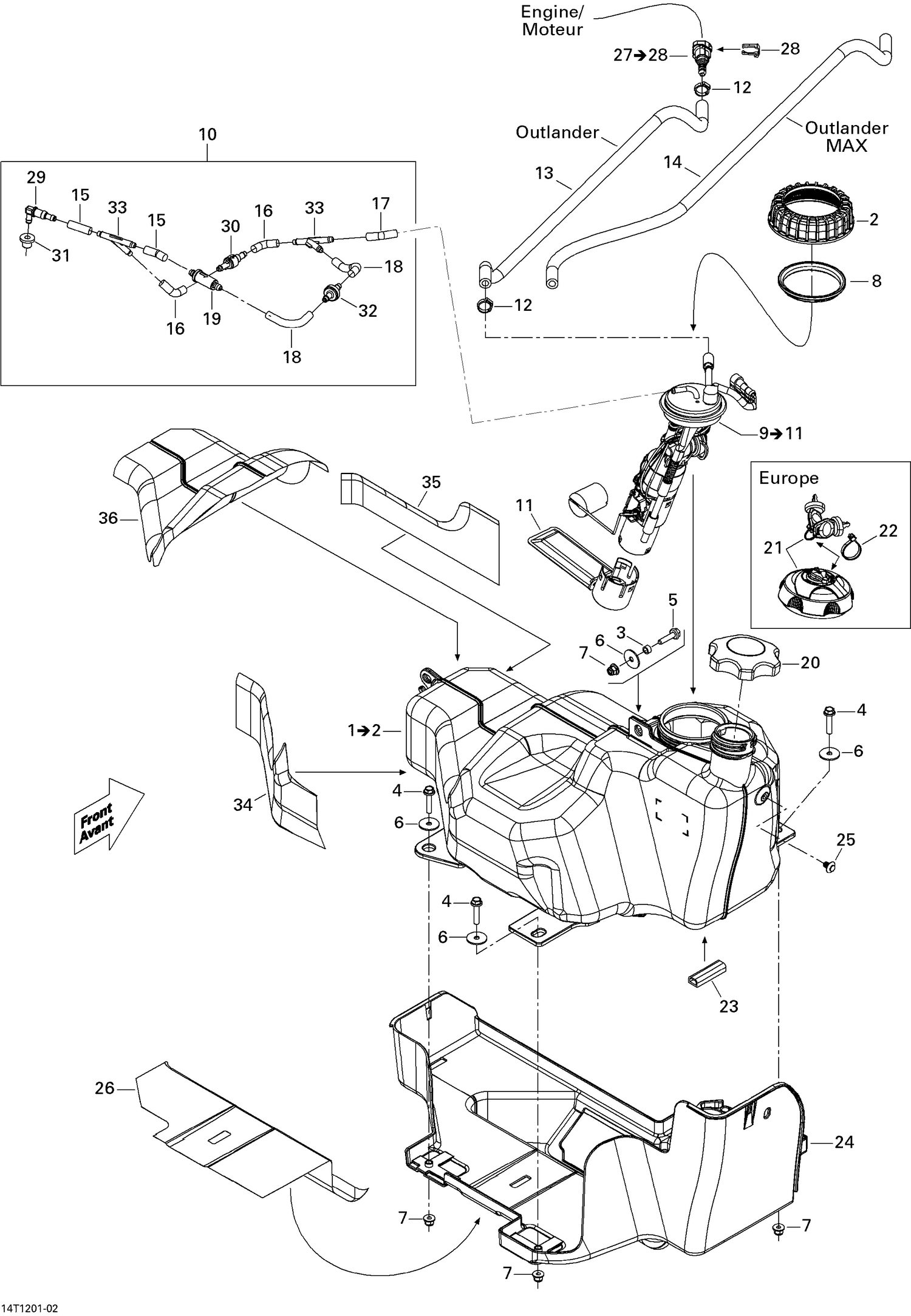

02- Fuel Tank
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 513033040 | Nut, Fuel Pump Module |
| 3 | 293900104 | Bushing |
| 4 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 5 | 207662534 | Hex. Flange Screw M6 X 25 |
| 6 | 224060251 | Washer |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 8 | 709000208 | Seal |
| 10 | 715001288 | Fuel Vent Kit |
| 11 | 709000389 | Fuel Pre-Filter Kit |
| 12 | 293650046 | Oetiker Clamp |
| 13 | XXX | Not Available As Spare Parts |
| 14 | 219704440 | Was 709000163 Fuel Line |
| 15 | 219704410 | Polyurethane Hose 10000Mm Long |
| 16 | 219704410 | Polyurethane Hose 10000Mm Long |
| 17 | 219704410 | Polyurethane Hose 10000Mm Long |
| 18 | 219704410 | Polyurethane Hose 10000Mm Long |
| 19 | 709000330 | Filter |
| 20 | 513033025 | Fuel Tank Cap |
| 23 | 219704365 | Was 293200017 Neoprene Seal |
| 24 | 709000207 | TANK PROTECTOR - Call your local BRP dealership |
| 25 | 293150168 | PLASTIC TUKLOCK RIVET - Call your local BRP dealership |
| 26 | 709000360 | REFLECTING SHEET - Call your local BRP dealership |
| 28 | 513033135 | Locking Clip |
| 29 | 414580600 | Elbow Male Connector |
| 30 | 513033469 | Check Valve |
| 31 | 293720029 | Grommet |
| 32 | 275500398 | Check Valve |
| 33 | 293710059 | Y-Fitting |
| 34 | 709000204 | REFLECTING SHEET - Call your local BRP dealership |
| 35 | 709000205 | REFLECTING SHEET - Call your local BRP dealership |
