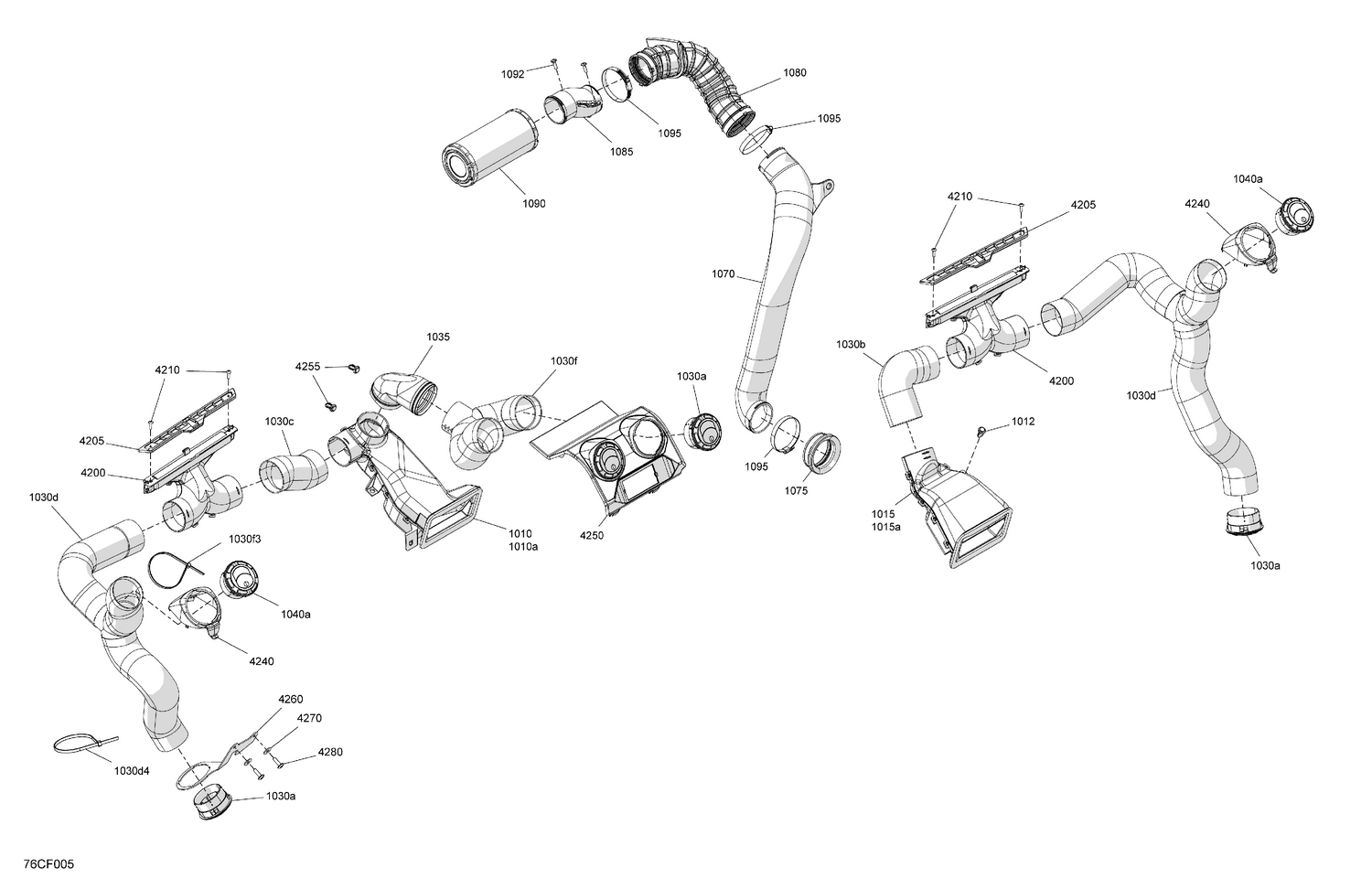

07- Enclosure Cab - Air Conditioning System
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1010a | 705800428 | LH Manifold |
| 1012 | 293150230 | Tuflok Plastic Rivet |
| 1015a | XXX | Not Available As Spare Parts |
| 1030a | 705800436 | Grille Scoop |
| 1030b | 705800706 | Duct Ventilation Kit |
| 1030c | 705800706 | Duct Ventilation Kit |
| 1030d4 | 293750094 | Anchorage Tie Wrap |
| 1030f3 | 293750094 | Anchorage Tie Wrap |
| 1035 | 705800690 | Adaptor |
| 1040a | 705800436 | Grille Scoop |
| 1070 | 705800377 | Intake Duct |
| 1075 | 705800437 | Lower Intake Fitting |
| 1080 | 705800438 | Upper Intake Fitting |
| 1085 | 705800439 | Upper Intake Duct |
| 1090 | 705800395 | Air Filter |
| 1092 | 250000720 | Torx Screw K50 X 16 |
| 1095 | 293650118 | Norma Gear Clamp |
| 4200 | 705800501 | Central Adapter |
| 4205 | 705800425 | Front Ventilation Grille |
| 4210 | 250000759 | Torx Truss Pt K40 X 16 |
| 4240 | 705800426 | Side Grille Support |
| 4250 | 705800427 | Central Grille Support |
| 4255 | 293150230 | Tuflok Plastic Rivet |
| 4260 | 705801099 | LH Lower Grille Support |
| 4270 | 234062670 | Stainless Steel Flat Washer |
