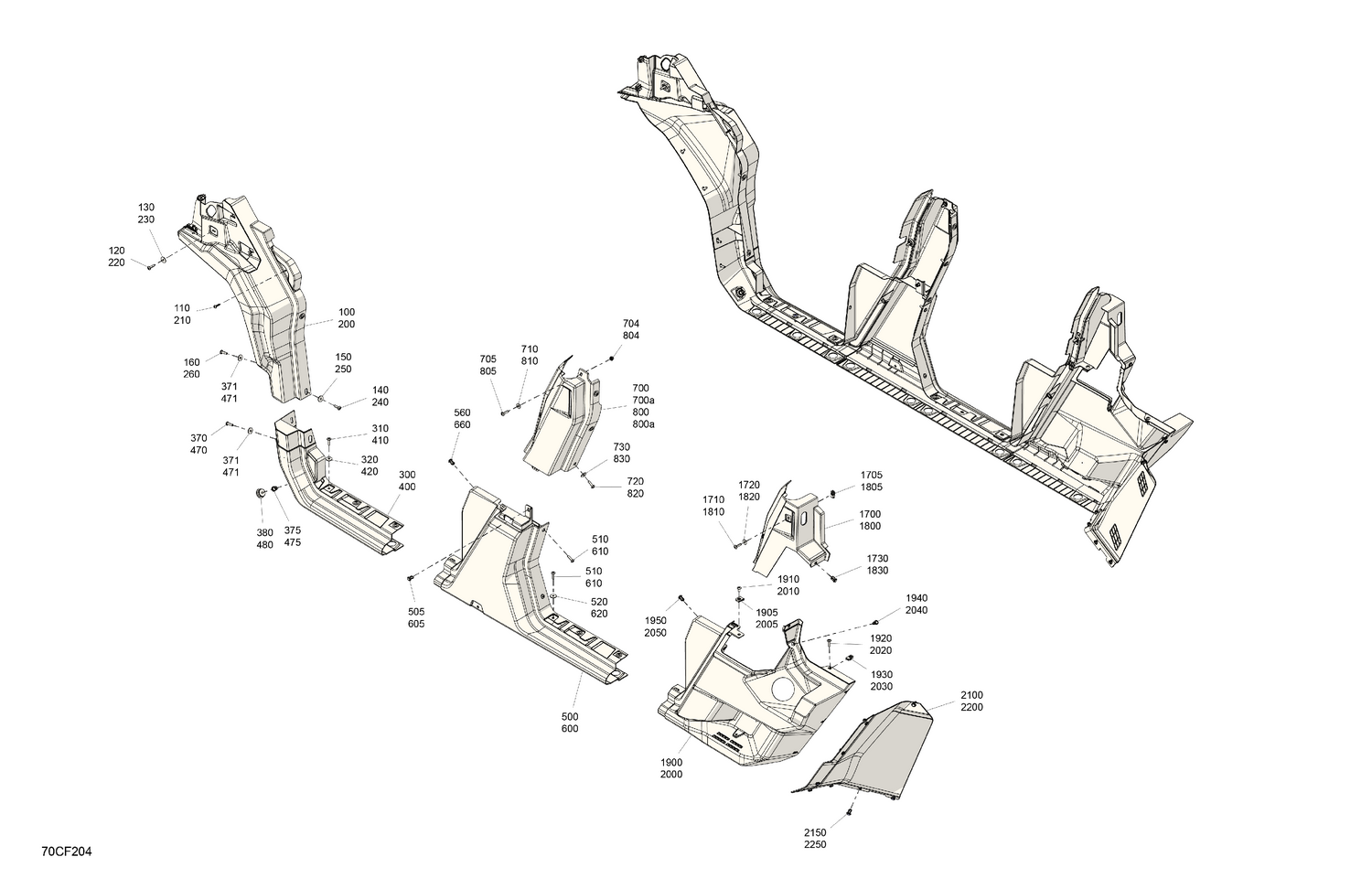

07- Body - System
Parts (77)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 705017731 | LH Front Mud Guard |
| 110 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 120 | 250000807 | Torx Truss Screw M6 X 25 |
| 130 | 250200162 | Flat Washer M6.6 X 22 |
| 140 | 250000807 | Torx Truss Screw M6 X 25 |
| 150 | 250200162 | Flat Washer M6.6 X 22 |
| 160 | 250000807 | Torx Truss Screw M6 X 25 |
| 200 | 705017732 | RH Front Mud Guard |
| 210 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 220 | 250000807 | Torx Truss Screw M6 X 25 |
| 230 | 250200162 | Flat Washer M6.6 X 22 |
| 240 | 250000807 | Torx Truss Screw M6 X 25 |
| 250 | 250200162 | Flat Washer M6.6 X 22 |
| 260 | 250000807 | Torx Truss Screw M6 X 25 |
| 300 | 705018368 | LH Front Side Panel |
| 310 | 250000807 | Torx Truss Screw M6 X 25 |
| 320 | 250200162 | Flat Washer M6.6 X 22 |
| 370 | 250000807 | Torx Truss Screw M6 X 25 |
| 371 | 250200162 | Flat Washer M6.6 X 22 |
| 375 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 380 | 708305071 | Spacer |
| 400 | 705018369 | RH Front Body Panel |
| 410 | 250000807 | Torx Truss Screw M6 X 25 |
| 420 | 250200162 | Flat Washer M6.6 X 22 |
| 470 | 250000807 | Torx Truss Screw M6 X 25 |
| 471 | 250200162 | Flat Washer M6.6 X 22 |
| 475 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 480 | 708305071 | Spacer |
| 500 | 705018446 | LH Middle Side Panel |
| 505 | 293150230 | Tuflok Plastic Rivet |
| 510 | 250000807 | Torx Truss Screw M6 X 25 |
| 520 | 250200162 | Flat Washer M6.6 X 22 |
| 560 | 293150230 | Tuflok Plastic Rivet |
| 600 | 705018447 | RH Middle Side Panel |
| 605 | 293150230 | Tuflok Plastic Rivet |
| 610 | 250000807 | Torx Truss Screw M6 X 25 |
| 620 | 250200162 | Flat Washer M6.6 X 22 |
| 660 | 293150230 | Tuflok Plastic Rivet |
| 700a | 705010601 | LH Middle Cage Cover |
| 704 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 705 | 250000807 | Torx Truss Screw M6 X 25 |
| 710 | 234062670 | Stainless Steel Flat Washer |
| 720 | 250000807 | Torx Truss Screw M6 X 25 |
| 730 | 250200162 | Flat Washer M6.6 X 22 |
| 800a | 705010602 | RH Middle Cage Cover |
| 804 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 805 | 250000807 | Torx Truss Screw M6 X 25 |
| 810 | 234062670 | Stainless Steel Flat Washer |
| 820 | 250000807 | Torx Truss Screw M6 X 25 |
| 830 | 250200162 | Flat Washer M6.6 X 22 |
| 1700 | 715011318 | LH Rear Cage Trim |
| 1705 | 250100198 | Panel Nut M6 X 1.0 |
| 1710 | 250000807 | Torx Truss Screw M6 X 25 |
| 1720 | 234062670 | Stainless Steel Flat Washer |
| 1730 | 293150230 | Tuflok Plastic Rivet |
| 1800 | 715011319 | RH Rear Cage Trim |
| 1805 | 250100198 | Panel Nut M6 X 1.0 |
| 1810 | 250000807 | Torx Truss Screw M6 X 25 |
| 1820 | 234062670 | Stainless Steel Flat Washer |
| 1830 | 293150230 | Tuflok Plastic Rivet |
| 1900 | 705017733 | LH Rear Fender |
| 1905 | 250100208 | Panel Nut M6 X 1.0 |
| 1910 | 250000789 | Torx Truss M6X14 |
| 1920 | 250000722 | Torx Screw M6 X 20 |
| 1930 | 250100198 | Panel Nut M6 X 1.0 |
| 1940 | 293150230 | Tuflok Plastic Rivet |
| 1950 | 293150230 | Tuflok Plastic Rivet |
| 2000 | 705017734 | RH Rear Fender |
| 2005 | 250100208 | Panel Nut M6 X 1.0 |
| 2010 | 250000789 | Torx Truss M6X14 |
| 2020 | 250000722 | Torx Screw M6 X 20 |
| 2030 | 250100198 | Panel Nut M6 X 1.0 |
| 2040 | 293150230 | Tuflok Plastic Rivet |
| 2050 | 293150230 | Tuflok Plastic Rivet |
| 2100 | 705017744 | LH Rear Deflector |
| 2150 | 293150230 | Tuflok Plastic Rivet |
| 2200 | 705017745 | RH Rear Deflector |
