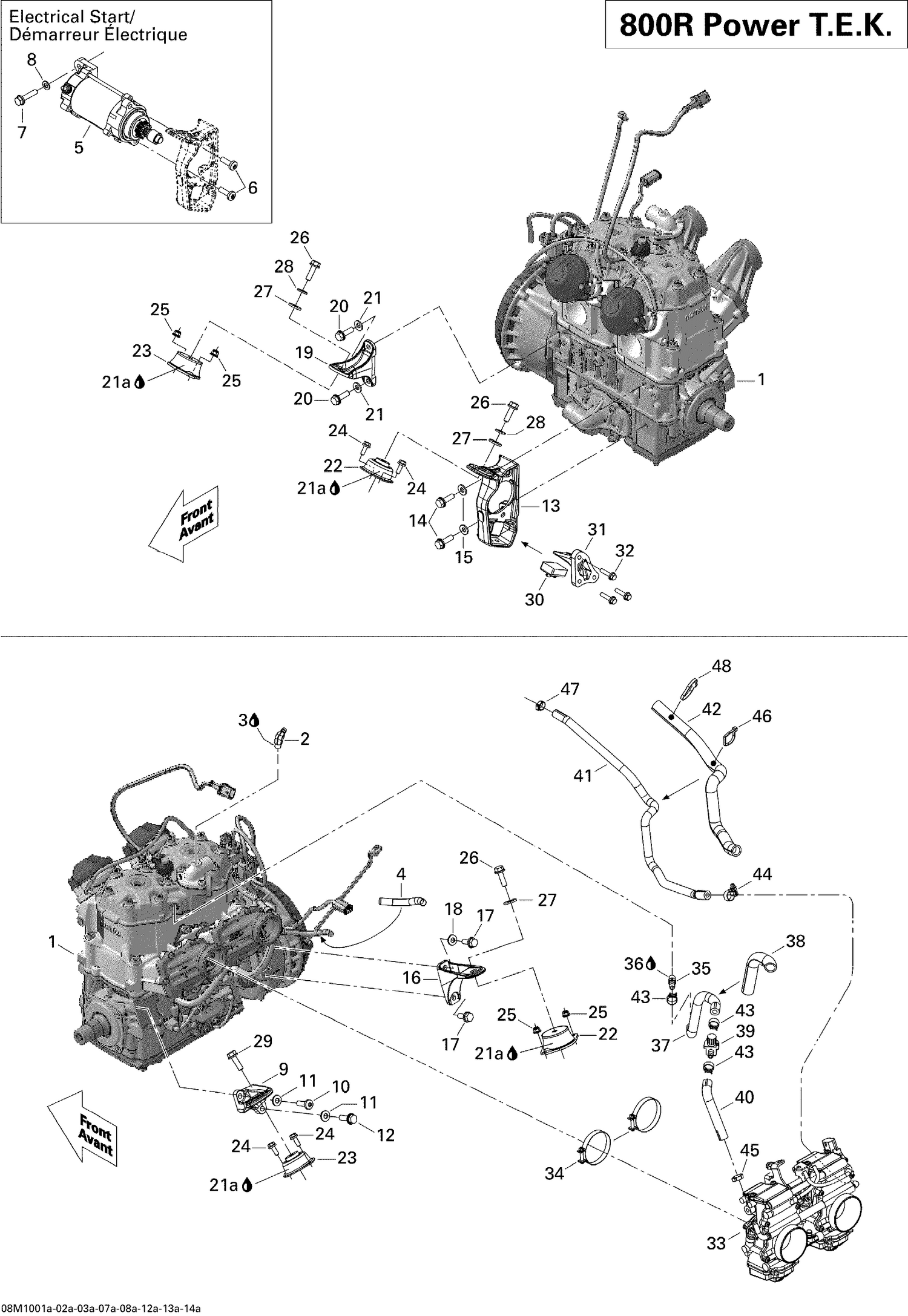

01- Engine And Engine Support 1- 800R PTEK

01- Engine And Engine Support 1- 800R PTEK

Parts (44)

RefPart NumberDescription
1 400800322 Engine 800R
2 293700045 ELBOW FITTING 90 - Call your local BRP dealership
3 219704455 Was 293800018 Loctite 592, 50 ml
4 219704407 Tubing 10 MM 1000MM Long
9 512060478 Rear Support, PTO
10 250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
11 234281474 Conical Spring Washer M8
12 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
13 512060714 Front Support, PTO This part replaces 512060561.
14 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
15 234281474 Conical Spring Washer M8
16 512060559 Rear Support, MAG
17 207582044 Hex. Flange Screw M8 X 20, Scotch Grip
18 234281474 Conical Spring Washer M8
19 512060469 Front Support, MAG
20 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
21 234281474 Conical Spring Washer M8
21a 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
22 512060729 Rubber Mount This part replaces 512060457.
23 512061507 Vibration Damper This part replaces 512060387.
24 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
25 233261414 Hex. Flange Elastic Nut M6 x 1.0
26 207583086 Hex. Flange Screw M8 X 30, Scotch Grip
27 503183200 Yellow, Washer
28 234281474 Conical Spring Washer M8
29 250000796 Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000361.
30 512060179 STOPPER - Call your local BRP dealership
31 512060576 Stopper Support This part replaces 512060489.
32 207562544 Hex. Flange Screw M6 X 25
33 403138805 CARBURATOR KIT, TM40-B397 - Call your local BRP dealership
34 512059835 Gemi Clamp
35 512060196 Male Connector 1/8"-27 NPT
36 219704455 Was 293800018 Loctite 592, 50 ml
37 512060357 HOSE FORMED ENGINE OUTLET - Call your local BRP dealership
38 219704408 Tubing 16 Mm 1000Mm Long
39 512059324 Valve 5/16”
40 512060353 Hose Formed
41 512060347 Hose Formed
42 219704408 Tubing 16 Mm 1000Mm Long
43 414655700 Spring Clamp
44 293650084 Norma Clamp
45 293650125 Oetiker Clamp
46 414115200 Tie-Rap 180 mm
47 293650046 Oetiker Clamp
