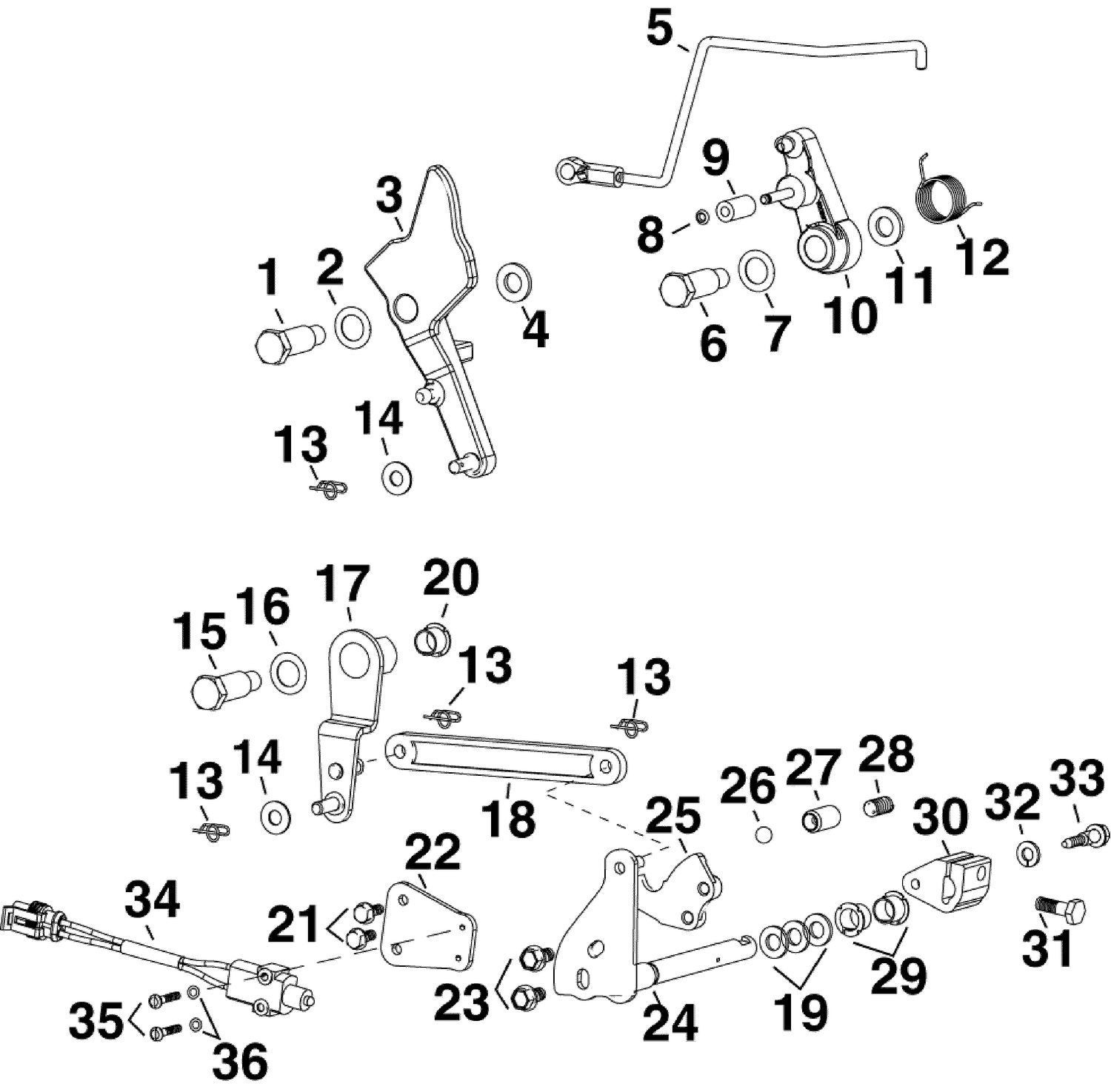

| Ref | Part Number | Description |
|---|
| 1 |
0347338 |
SCREW, Cam to C/C |
| 3 |
5005186 |
THROTTLE CAM |
| 4 |
0908398 |
WASHER |
| 5 |
5005626 |
LINK, Cam to shaft-TPS |
| 6 |
0347338 |
SCREW, Cam to C/C |
| 7 |
0127386 |
RONDELLE |
| 8 |
0324678 |
JOINT TORIQUE Galet de came de papillon |
| 9 |
0432639 |
GALET, contre-came |
| 10 |
5005187 |
THROTTLE LEVER |
| 11 |
0908398 |
WASHER |
| 12 |
0353032 |
SPRING , Throttle lever return |
| 15 |
0350895 |
SCREW, Shift arm to C/C |
| 17 |
5006419 |
LEVER, Shift |
| 18 |
0331224 |
LINK, Shift lever to shift arm |
| 19 |
0202026 |
LOCK WASHER, Stud |
| 20 |
0315081 |
BAGUE, arbre de commande de sens de marche vers bloc-cylindres |
| 22 |
0350611 |
BRACKET, Neutral switch |
| 24 |
5005238 |
LEVER & SHAFT Assembly, Shift |
| 25 |
0340955 |
DETENT SHIFT LEVER |
| 26 |
0315164 |
BALL, Shift detent |
| 27 |
0334241 |
GUIDE |
| 28 |
0334338 |
SCREW, Lever to shift rod |
| 29 |
0312708 |
BUSHING |
| 30 |
0350592 |
LEVER , Shift rod |
| 31 |
0328695 |
CLAMP, Engine cable |
| 33 |
0327590 |
PIN, Shift lever |
| 34 |
0586780 |
INTERRUPTEUR, de sécurité au point mort |
