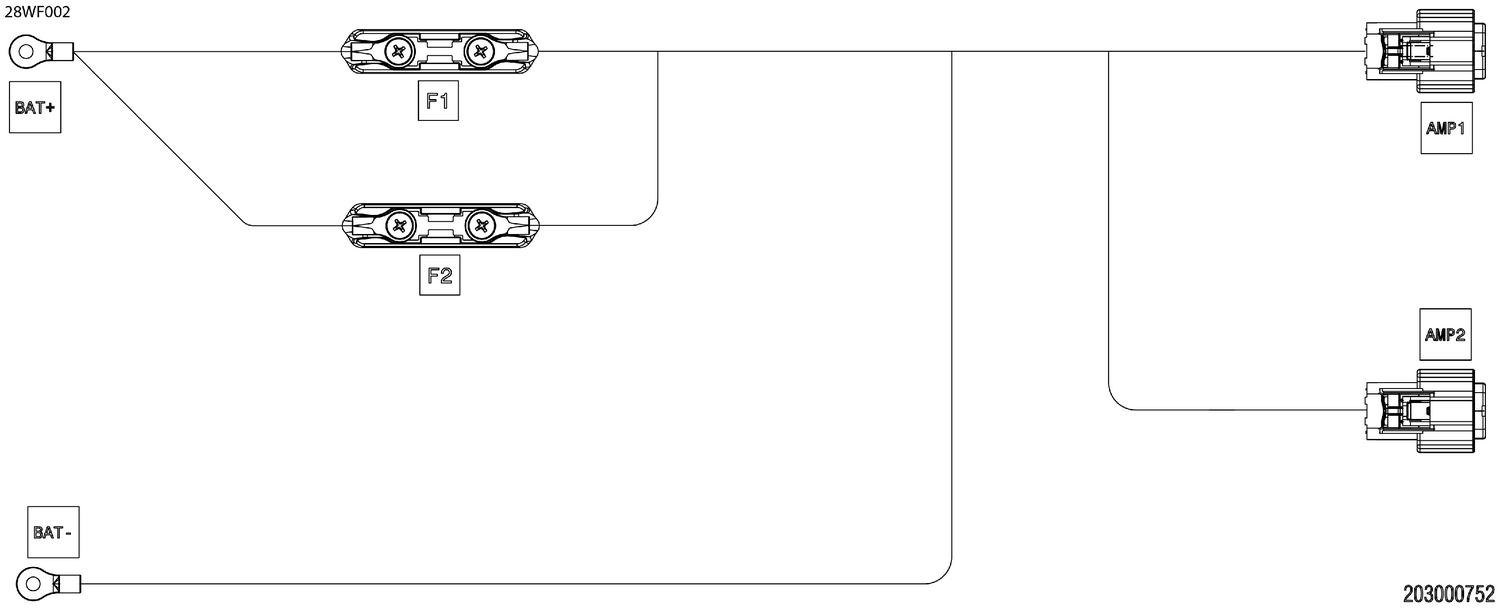

08- ELECTRIC - Accessories Wiring Harness - 278004236
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| AMP1 | 710008706 | Connector Molex Female 2 Cavities |
| AMP1 | 710008707 | Female Molex Terminal |
| AMP2 | 710008706 | Connector Molex Female 2 Cavities |
| AMP2 | 710008707 | Female Molex Terminal |
| F1 | 208651200 | Phillips Screw M5 X 12 |
| F1 | 232551414 | Elastic Stop Nut M5 |
| F1 | 515177995 | Terminal Ring |
| F1 | 710007204 | Fuse Holder Support |
| F1 | 710009399 | Fuse 40 A |
| F2 | 232551414 | Elastic Stop Nut M5 |
| F2 | 515177995 | Terminal Ring |
| F2 | 710007204 | Fuse Holder Support |
| F2 | 710009399 | Fuse 40 A |
| 1140 | 278004236 | Accessories Wiring Harness |
