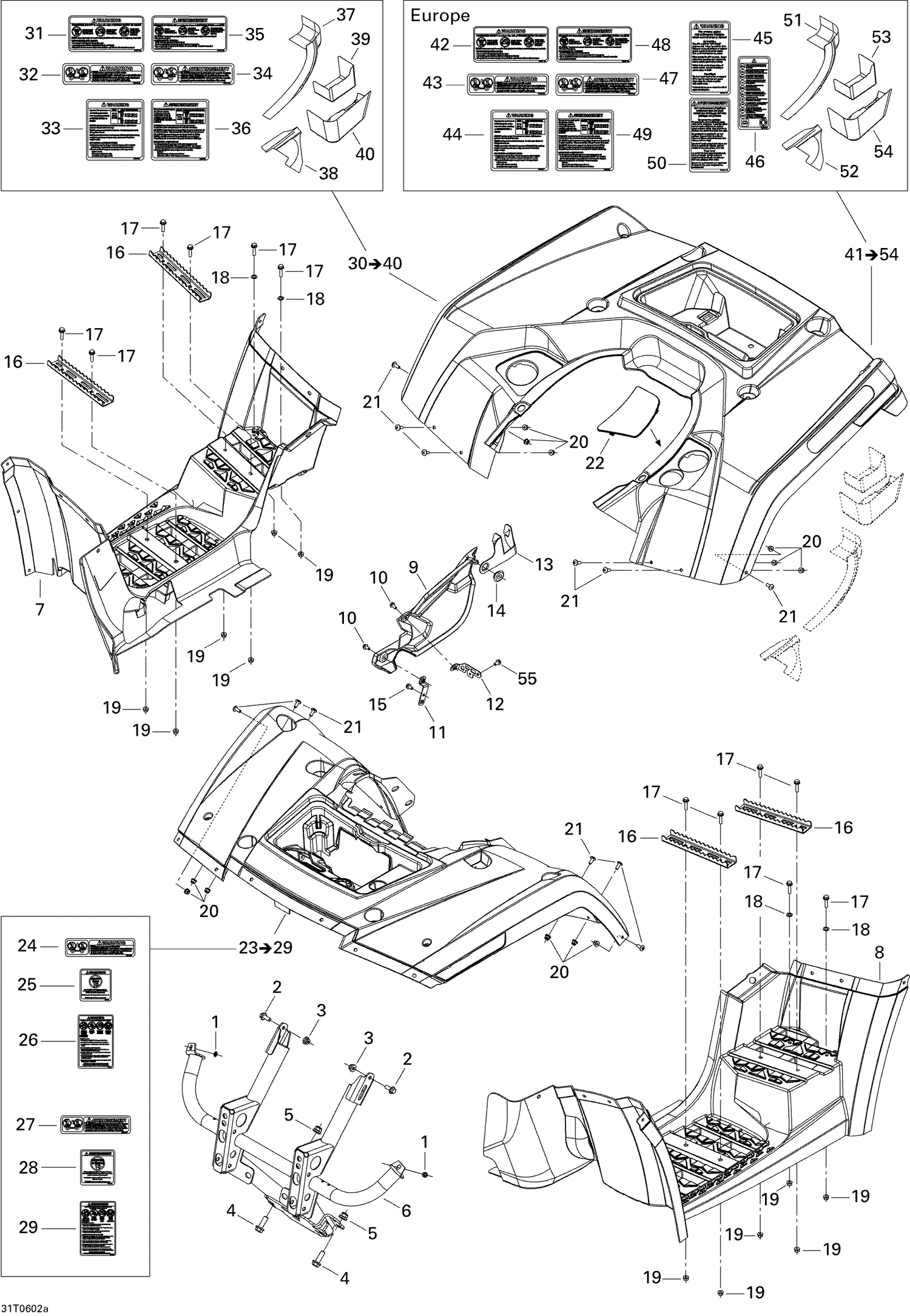

| Ref | Part Number | Description |
|---|
| 1 |
732610072 |
Push Nut |
| 2 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 3 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 4 |
207603044 |
Hex. Flange Screw M10 X 30 |
| 5 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 6 |
705003196 |
Front Bumper This part replaces 705001827. |
| 7 |
705002487 |
RH Footboard This part replaces 705001981. |
| 8 |
705003633 |
LH Footboard This part replaces 705001940. |
| 9 |
705003839 |
ENGINE COVER - Call your local BRP dealership This part replaces 705001462. |
| 10 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 11 |
705003646 |
Engine Cover Support This part replaces 705000657. |
| 12 |
705011461 |
Engine Cover Support This part replaces 705001826. |
| 13 |
705002121 |
ENGINE COVER SUPPORT - Call your local BRP dealership |
| 14 |
705005156 |
Oval Washer |
| 15 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 16 |
705003648 |
Footrest This part replaces 705000428. |
| 17 |
207662554 |
Hex. Flange Screw M6 X 25 This part replaces 207662584. |
| 18 |
234161471 |
Lock Washer M6, Black |
| 19 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 20 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 21 |
250000755 |
Torx Screw M6 X 16 This part replaces 250000261. |
| 22 |
705017923 |
LH Rear Body Panel Cap This part replaces 705001910. |
| 24 |
704901089 |
Warning Decal, Load |
| 25 |
704901753 |
Warning Decal, Under 16 Years Old This part replaces 704900642. |
| 26 |
704901749 |
Warning Decal, Death And Injuries This part replaces 704900904. |
| 27 |
704901090 |
Warning Decal, Load |
| 28 |
704900436 |
WARNING DECAL, UNDER 16 YEARS OLD - Call your local BRP dealership |
| 29 |
704900905 |
Warning Decall, Death And Injuries |
| 37 |
705002085 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 38 |
705002014 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 39 |
705002189 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 40 |
705002191 |
Reflective Sheet |
| 46 |
704901177 |
WARNING DECAL, MULTILINGUAL - Call your local BRP dealership |
| 51 |
705002085 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 52 |
705002014 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 53 |
705002189 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 54 |
705002191 |
Reflective Sheet |
