Parts Catalog

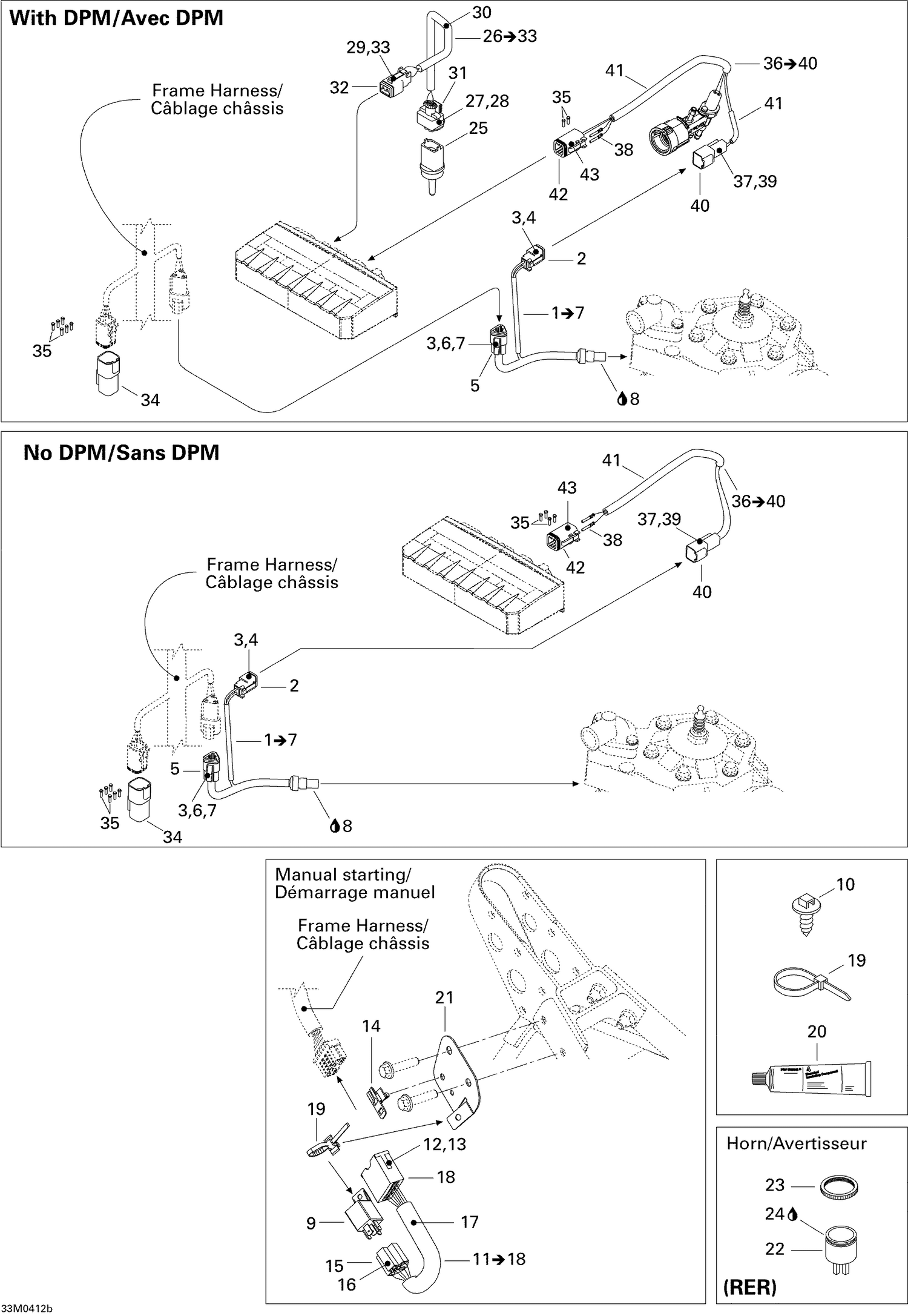

10- Electrical System 2

Parts (33)

Ref	Part Number	Description
2	515175670	Female Terminal Housing, 2 Circuits
3	278000632	Female Terminal
4	515175675	Female Lock, 2 Circuits
5	515175671	FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
6	515175676	Female Lock, 3 Circuits
7	293000052	Sealing Cap
8	219704455	Was 293800018 Loctite 592, 50 ml
9	710010053	Relay This part replaces 410113200.
10	293730040	Mount Dart This part replaces 293730018.
12	515175232	Male Terminal
13	515175273	MALE TERMINAL - Call your local BRP dealership
14	515175283	Housing Support
15	409209900	Female Housing, 5 Circuits
16	561503100	FEMALE TERMINAL - Call your local BRP dealership
17	219704400	Was 409901800 Tubing (13 mm)
18	515175720	MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
19	414115200	Tie-Rap 180 mm
20	219704453	Was 293550004 Dielectric Grease, 150 g
21	515176020	HARNESS SUPPORT - Call your local BRP dealership
27	278000998	Female Terminal
28	278000999	Wire Seal
29	278000632	Female Terminal
30	219704424	Vinyl Tubing, Low Temp 3000Mm Long
31	515175588	FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership
32	515175670	Female Terminal Housing, 2 Circuits
33	515175706	Female Lock, 2 Circuits
34	515175668	Male Terminal Housing, 6 Circuits
37	278000631	Male Terminal
38	278000632	Female Terminal
39	409207500	Male Lock, 2 Circuits
40	515175665	Male Terminal Housing, 2 Circuits
41	409901300	LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership
42	515175673	Male Housing, 6 Circuits
