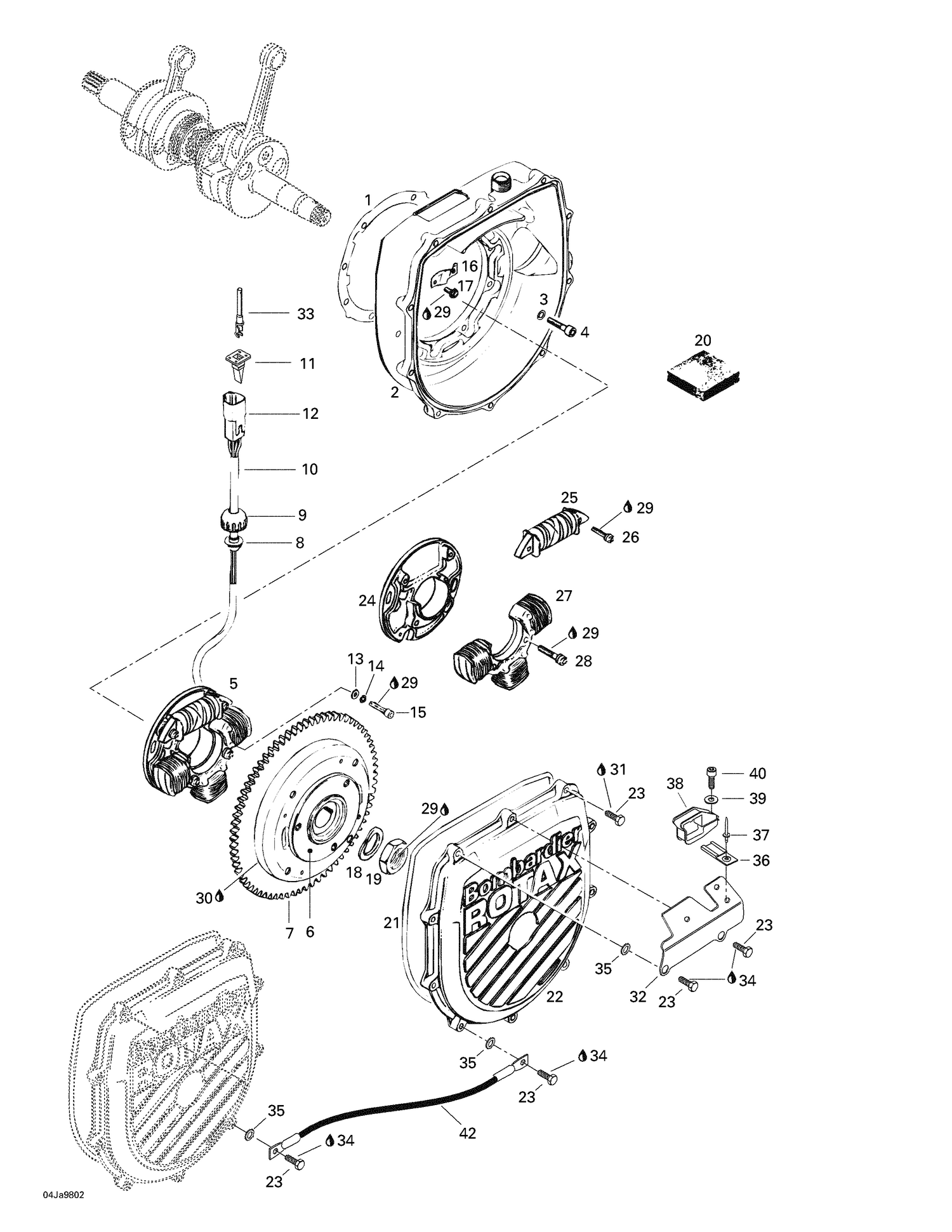

| Ref | Part Number | Description |
|---|
| 1 |
290850605 |
GASKET - Call your local BRP dealership |
| 2 |
290810099 |
Ignition Housing (Silver) |
| 3 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 4 |
205062544 |
Socket Head Screw M6 X 25 This part replaces 290840861. |
| 5 |
420886725 |
ARMATURE PLATE ASS'Y - Call your local BRP dealership This part replaces 290886725. |
| 6 |
290995118 |
Flywheel |
| 7 |
290834060 |
Starter Gear 77 Teeth |
| 8 |
293720034 |
Grommet |
| 9 |
278000100 |
Electric Wire Cap |
| 10 |
290260931 |
Tubing Isolation (75 mm) |
| 11 |
278000636 |
Female Wedge, 4 Circuits |
| 12 |
278000635 |
Female Housing, 4 Circuits |
| 13 |
420827800 |
WASHER - Call your local BRP dealership |
| 14 |
420945750 |
Lock Washer |
| 15 |
420840515 |
SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership |
| 16 |
290853080 |
Retainer Plate |
| 17 |
215050848 |
Hex. Screw M5 x 8 |
| 18 |
420945759 |
Lock Washer, 22 mm |
| 19 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 20 |
290860680 |
Protection Mat |
| 21 |
290831555 |
O-Ring |
| 22 |
290810146 |
Ignition Cover |
| 23 |
290841543 |
Taptite Screw |
| 24 |
420886725 |
ARMATURE PLATE ASS'Y - Call your local BRP dealership This part replaces 290886725. |
| 25 |
410915200 |
GENERATING COIL - Call your local BRP dealership |
| 26 |
420940810 |
SCREW M5 X 22 WITH WASHER - Call your local BRP dealership |
| 27 |
410916200 |
Lighting Coil |
| 28 |
410913900 |
SCREW M6 X 25 WITH WASHER - Call your local BRP dealership |
| 29 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 30 |
219703000 |
Sealant Loctite 648 This part replaces 420899788. |
| 31 |
293800023 |
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 32 |
204250026 |
Regulator Support |
| 33 |
278000631 |
Male Terminal |
| 34 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 35 |
234461608 |
External Serrated Lock Washer 6 mm This part replaces 217161600. |
| 36 |
270000141 |
Clip |
| 37 |
204000081 |
Pop Rivet 3/16" |
| 38 |
270000158 |
Adaptor |
| 39 |
234061600 |
Stainless Flat Washer M6 This part replaces 213200001. |
| 40 |
205061660 |
Socket Screw M6 X 16 This part replaces 215961660. |
| 41 |
290886317 |
Engine Gasket Set (Not Shown) |
