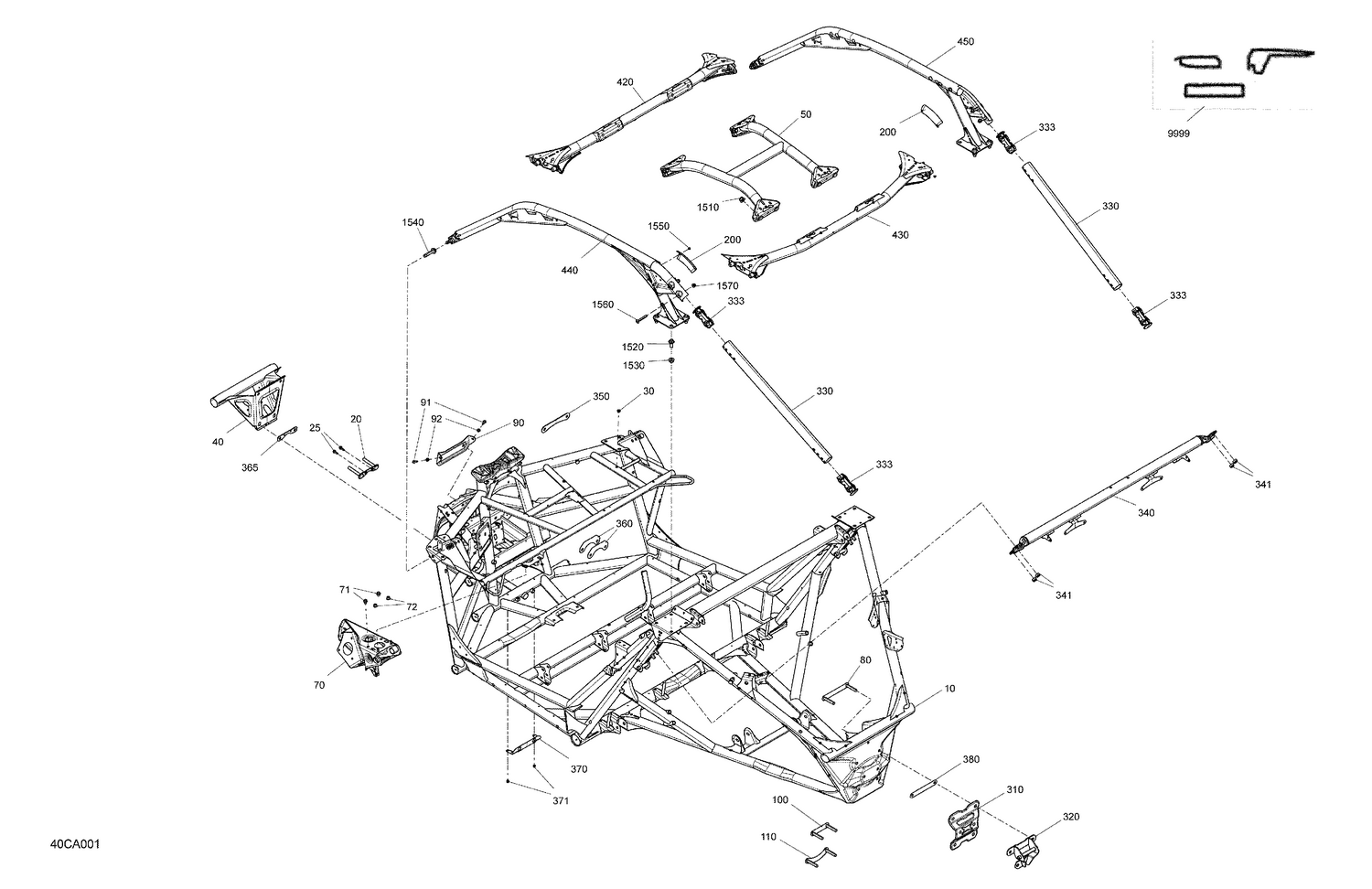

| Ref | Part Number | Description |
|---|
| 10 |
715008510 |
Black, Frame Ass'y This part replaces 715006649. |
| 20 |
705211561 |
Front Plate This part replaces 705207424. |
| 25 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 30 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 40 |
705210400 |
Deep Black, Front Bumper This part replaces 705205746. |
| 50 |
705206774 |
Added Cage |
| 70 |
705206924 |
DPS Support |
| 71 |
207581244 |
Hex. Flange Screw M8 X 12, Scotch Grip |
| 72 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 80 |
705206852 |
Rear Upper Plate |
| 90 |
705206877 |
Stifner Plate |
| 91 |
207661654 |
Hex. Flange Screw M6 X 16 |
| 92 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 100 |
705211558 |
Rear Central Plate This part replaces 705206853. |
| 110 |
705206854 |
Rear Plate |
| 200 |
705205926 |
Black, LH Link Plate |
| 310 |
705205750 |
Rear Plate |
| 320 |
715004450 |
Black, Rear Attachement Hook |
| 330 |
705210066 |
Deep Black, Rear Pillar This part replaces 705205751. |
| 333 |
705210648 |
Sleeve This part replaces 705209210. |
| 340 |
705210001 |
Safety Belt Anchorage This part replaces 705208518. |
| 341 |
232521416 |
Elastic Stop Nut M12 |
| 350 |
705211552 |
Connecting Plate This part replaces 705207425. |
| 360 |
705210249 |
Retaining Plate This part replaces 705205295. |
| 365 |
705211553 |
Front Plate This part replaces 705207438. |
| 370 |
706203122 |
Support |
| 371 |
390402200 |
Pop Rivet 3/16" |
| 380 |
705206069 |
Front Upper Plate |
| 420 |
705210068 |
Deep Black, Front Cross Member This part replaces 705208578. |
| 430 |
705210070 |
Deep Black, Rear Cross Member This part replaces 705208585. |
| 440 |
715008494 |
Black, LH Cage Ass'y This part replaces 715006630. |
| 450 |
715008500 |
Black, RH Cage Ass'y This part replaces 715006637. |
| 1510 |
233221466 |
Elastic Flange Nut M12 |
| 1520 |
207523056 |
Hex. Flange Screw M12 X 30, Scotch Grip |
| 1530 |
233121466 |
Hex Flange Nut m12 |
| 1540 |
250000857 |
Flange Screw M12 X 60 This part replaces 250000987. |
| 1550 |
293150102 |
Rivet 3/16" |
| 1560 |
250000901 |
Torx Truss M8 X 65 |
| 1570 |
250100025 |
Elastic Flange Nut M8 |
