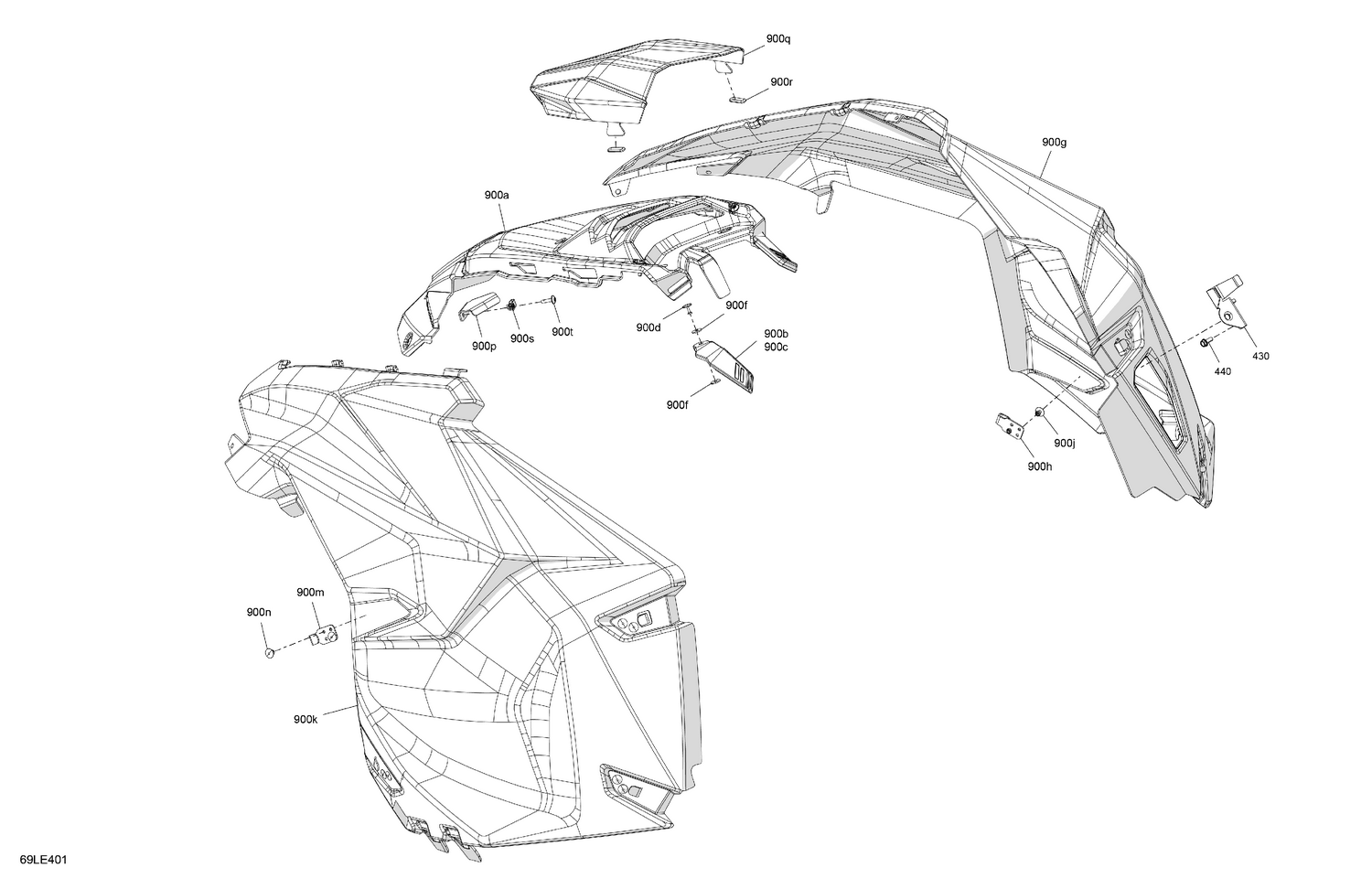

07- Body - Side Panels
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 430 | 517309558 | Rope Guide |
| 440 | 250001062 | Hex. Flanged Screw M6 X 16 |
| 900a | 517309470 | Deep Black, Central Hood |
| 900b | 517309479 | LH Short Latch |
| 900c | 517309478 | RH Short Latch |
| 900d | 293150308 | Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 900f | 250200025 | Washer M5 |
| 900g | 517309722 | Bright White, RH Panel |
| 900h | 517309736 | Latch Base |
| 900j | 293150308 | Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 900k | 517309723 | Bright White, LH Panel |
| 900m | 517309736 | Latch Base |
| 900n | 293150308 | Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 900p | 517309474 | Front Mounting Clamp |
| 900q | 517309477 | Windshield |
| 900r | 517309737 | Locking Ring |
| 900s | 250000958 | Panel Nut M5 X 0.8 |
