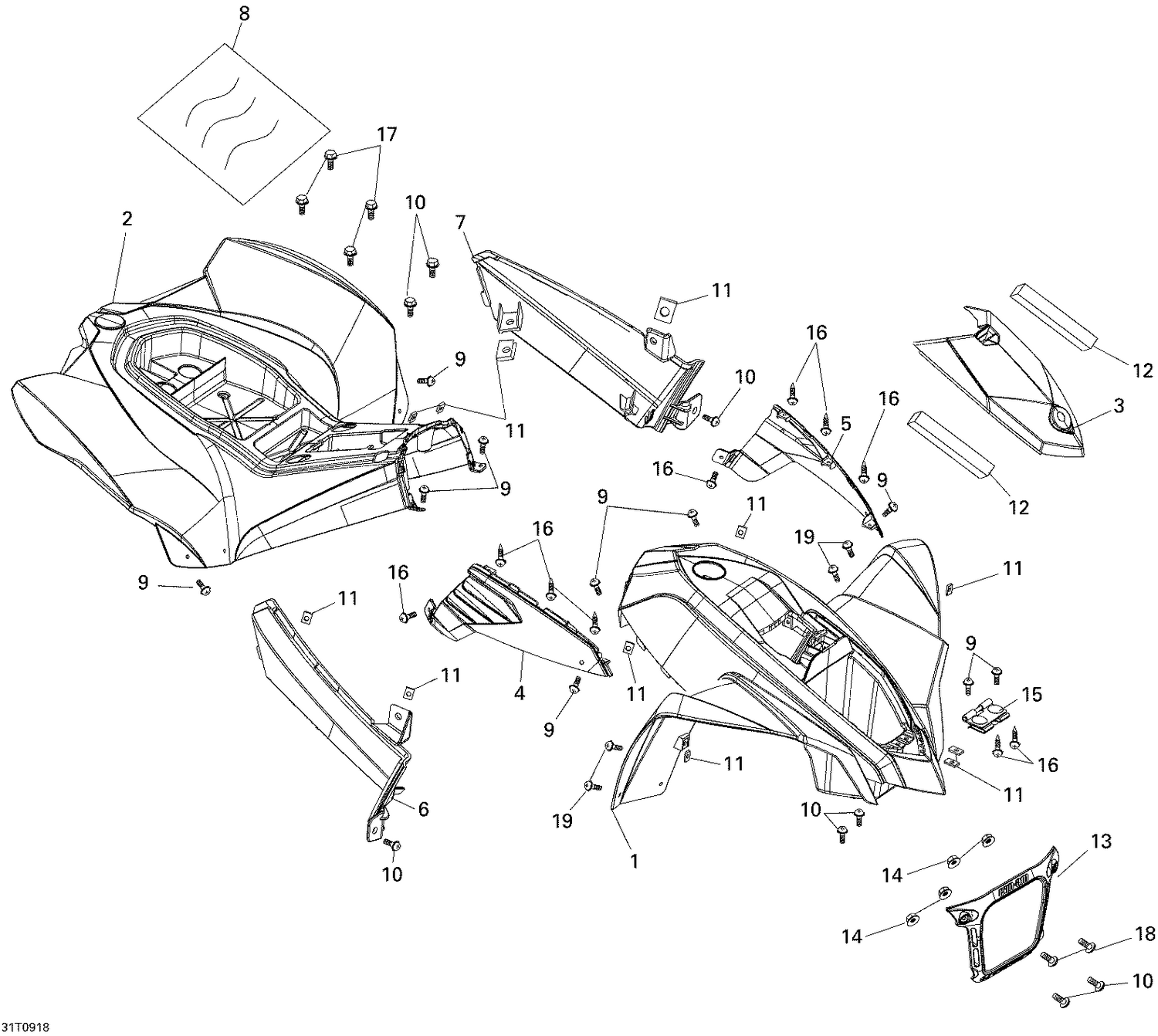

09- Body And Accessories NA
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V83007DGF000 | Front Fender Black Ds90X This part replaces V81101DGF00H. |
| 2 | V82012DGF01H | Rear Fender, Black This part replaces V81102DGF00H. |
| 3 | V82103DGF00HLL | Cargo Cover This part replaces V81103DGF00H. |
| 4 | V80104DGF010BK | RH Front Side Panel |
| 5 | V80105DGF010BK | LH Front Side Panel |
| 6 | V80116DGF000BKLL | RH Rear Side Panel This part replaces V80116DGF000BK. |
| 7 | V80117DGF000BKLL | LH Rear Side Panel This part replaces V80117DGF000BK. |
| 8 | V18450DGF000LL | Heat Insulation Sheet This part replaces V18450DGF000. |
| 9 | V930000601201LL | Round Head Screw This part replaces V9300006012. |
| 10 | V930000601501LL | Round Head Screw This part replaces V9300006015. |
| 11 | V9034506000KLL | Spring Nut This part replaces V9034506000K. |
| 12 | V81146DGF020 | Waterproof Strip |
| 13 | V82113DGF01H | SKID PLATE, YELLOW - Call your local BRP dealership This part replaces V81113DGF00H. |
| 14 | V9035006000 | Lock Nut |
| 15 | V50262DGF030LL | Cargo Cover Hinge This part replaces V50262DGF020. |
| 16 | V9309304012LL | Tapping Screw This part replaces V9309304012. |
| 17 | 207661244 | Hex. Flange Screw M6 X 12 |
| 18 | V9300006035 | Round Haed Bolt M6 X 35 |
