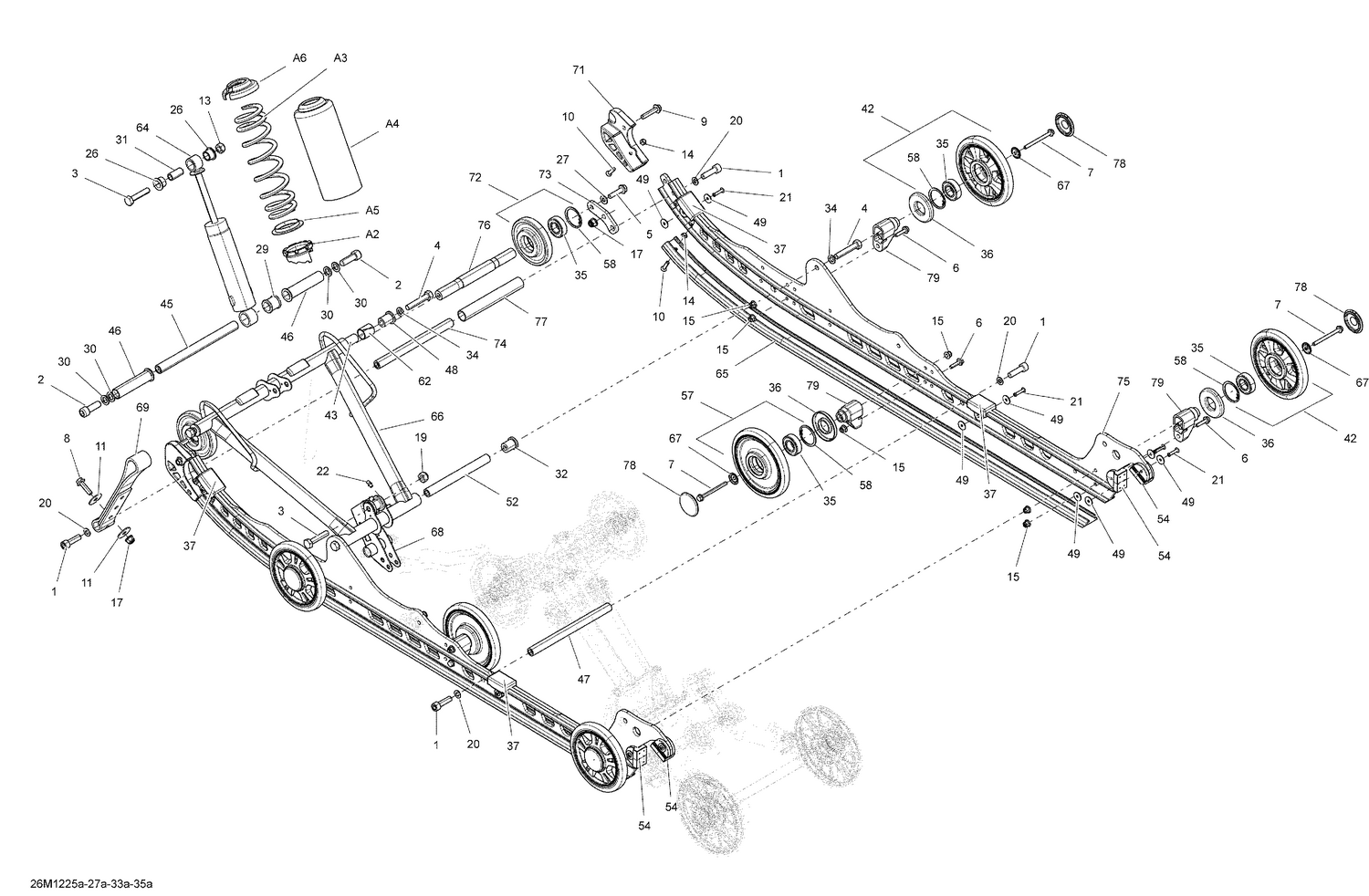

| Ref | Part Number | Description |
|---|
| A2 |
505073625 |
Adjustment Cam This part replaces 505070150. |
| A3 |
503191882 |
Black, Spring |
| A4 |
503193663 |
Protector This part replaces 503191126. |
| A5 |
503191872 |
Spring Guide |
| 1 |
205503544 |
Socket Head Screw M10 X 35, Scotch Grip |
| 2 |
205523544 |
Socket Head Screw M12 X 35, Scotch Grip |
| 3 |
207005044 |
Hex. Screw M10 X 1.5 X 50 |
| 4 |
207205586 |
HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership |
| 6 |
250000522 |
Hex Flange Screw M6 x 25 |
| 7 |
250001027 |
Hex. Flange Screw M6 X 70 This part replaces 250000475. |
| 8 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 9 |
207684044 |
Hex. Flange Screw M8 X 40 |
| 10 |
208562531 |
Phillips Screw M6 X 25 |
| 11 |
224081301 |
Flat Washer |
| 13 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 14 |
232561414 |
Elastic Stop Nut M6 |
| 15 |
250100130 |
ELASTIC FLANGE NUT M6 - Call your local BRP dealership |
| 17 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 19 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 20 |
503189564 |
Washer |
| 21 |
293150142 |
Pop Rivet 3/16" |
| 22 |
408200700 |
Grease Fitting |
| 26 |
503189117 |
Urethane Bushing |
| 27 |
503189157 |
Washer |
| 29 |
503189271 |
Bushing |
| 30 |
503189276 |
Washer |
| 31 |
503189282 |
Bushing |
| 32 |
503189324 |
Bushing |
| 34 |
503192496 |
Washer |
| 35 |
503190396 |
Ball Bearing |
| 36 |
503190434 |
Labyrinth Seal |
| 37 |
503190576 |
Rubber Stopper |
| 42 |
503191152 |
Black, Wheel Ass'y 147 mm |
| 43 |
503191215 |
Upper Shaft |
| 45 |
503189272 |
CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258. |
| 46 |
503191259 |
Center Bushing |
| 47 |
503191260 |
Axle Strap |
| 48 |
503191262 |
Bushing |
| 49 |
503191273 |
Washer |
| 52 |
503191279 |
Lower Shaft |
| 54 |
503191291 |
Rubber Stopper |
| 57 |
503191311 |
Black, Wheel Ass'y 147 mm |
| 58 |
415129371 |
Retaining Ring |
| 62 |
503191556 |
Extended Bushing |
| 64 |
503192266 |
Center Shock |
| 65 |
503192618 |
Black Slider, 154" |
| 66 |
503191752 |
Front Arm |
| 67 |
503191820 |
Wheel Cup M6 |
| 68 |
503192211 |
Rocker |
| 69 |
503192360 |
Stopper Strap |
| 71 |
503192610 |
RH Protector |
| 72 |
503192611 |
Black, Wheel Ass'y, 100 mm |
| 73 |
503192612 |
Plate |
| 74 |
503192613 |
Axle Strap |
| 75 |
503193397 |
Runner This part replaces 503192617. |
| 76 |
503192644 |
Front Wheel Axle |
| 77 |
503196943 |
Spacer This part replaces 503192678. |
| 78 |
503192771 |
Black, Wheel Cap |
| 79 |
503193894 |
Casted Support This part replaces 503193082. |
