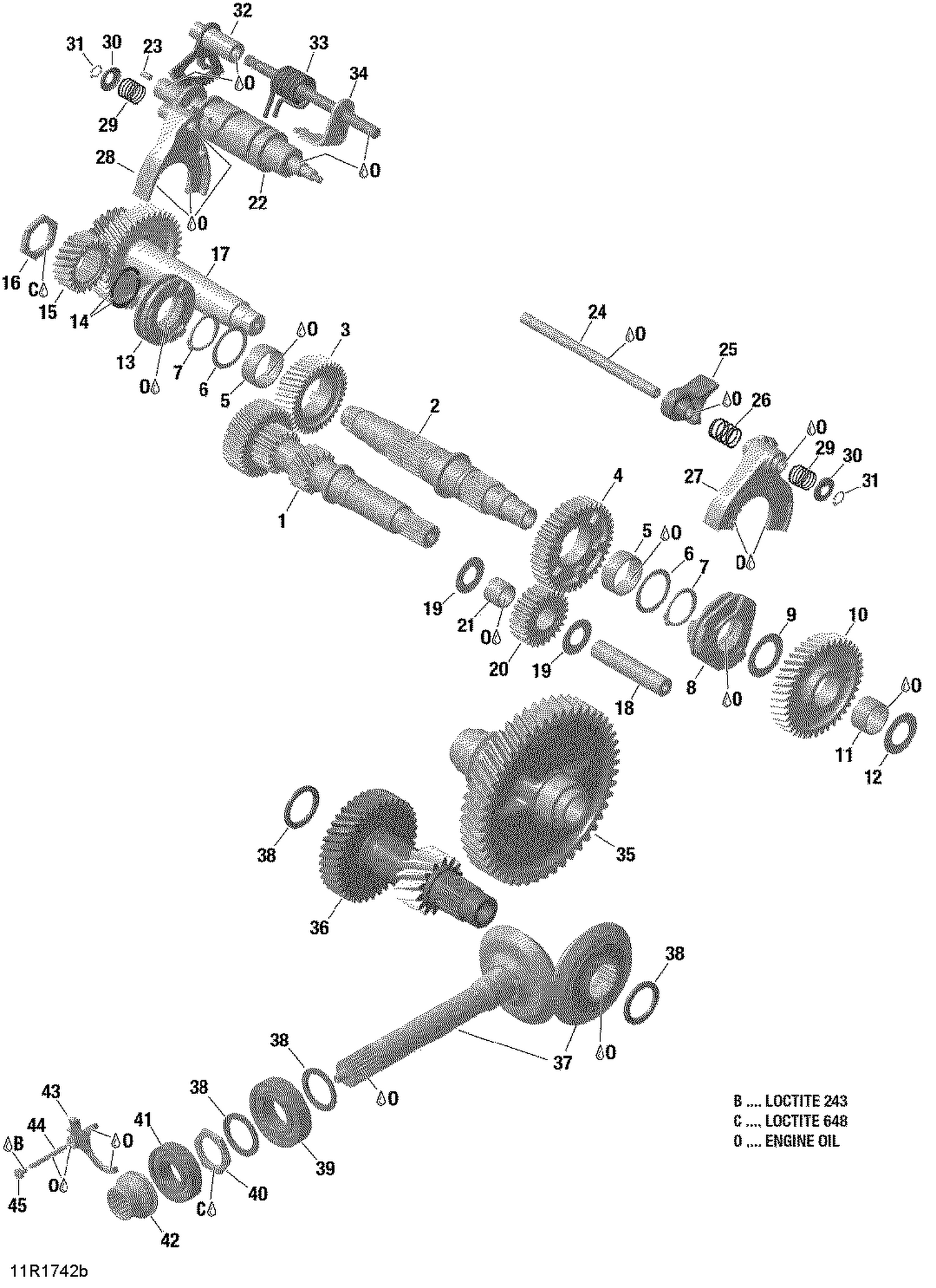

05- Gear Box Components - Without Lockable Rear Differential

05- Gear Box Components - Without Lockable Rear Differential

Parts (40)

RefPart NumberDescription
1 420637506 Counter Shaft This part replaces 420637505.
3 Not Available As Spare Part - Gear Pinion, 38 Teeth
4 Not Available As Spare Part - Gear Pinion, 39 Teeth
5 Not Available As Spare Part - Needle Cage
6 Not Available As Spare Part - Thrust Washer
7 Not Available As Spare Part - Retaining Ring
8 Not Available As Spare Part - Shifting Sleeve
9 Not Available As Spare Part - Thrust Washer
10 Not Available As Spare Part - Gear Pinion, 39 Teeth
11 Not Available As Spare Part - Needle Cage
12 Not Available As Spare Part - Thrust Washer
13 Not Available As Spare Part - Shifting Sleeve
14 Not Available As Spare Part - Half-Ring
15 Not Available As Spare Part - Intermediate Gear, 21 Teeth
16 Not Available As Spare Part - Hex. Nut M34
17 420637545 Intermediate Shaft Ass'y
19 Not Available As Spare Part - Intermediate Shaft Ass'y
20 Not Available As Spare Part - Intermediate Gear, 24 Teeth
21 Not Available As Spare Part - Needle Cage
23 420932780 Needle Pin
25 420657476 Shifting Block This part replaces 420657475.
26 420638075 Spring
27 420257001 Shift Fork Ass'y This part replaces 420657537.
28 420657559 Gearshift Fork Ass'y This part replaces 420657427.
29 420638070 Spring
30 420427140 Spring Seat
31 420945470 Retaining Ring
32 Not Available As Spare Part - Toothed Segment
33 Not Available As Spare Part - Hairpin Valve Spring
34 Not Available As Spare Part - Switch Shaft
35 420934085 Drive Gear 48T
36 Not Available As Spare Part - Pinion Drive Shaft Ass.
37 Not Available As Spare Part - Bevel Gear Set
38 Not Available As Spare Part - Shim
39 Not Available As Spare Part - Ball Bearing
40 Not Available As Spare Part - Hex. Nut M34
41 Not Available As Spare Part - Ball Bearing
42 420257674 Shifting Sleeve This part replaces 420257673.
43 420257606 Shifting Fork
44 420832650 Needle Pin
