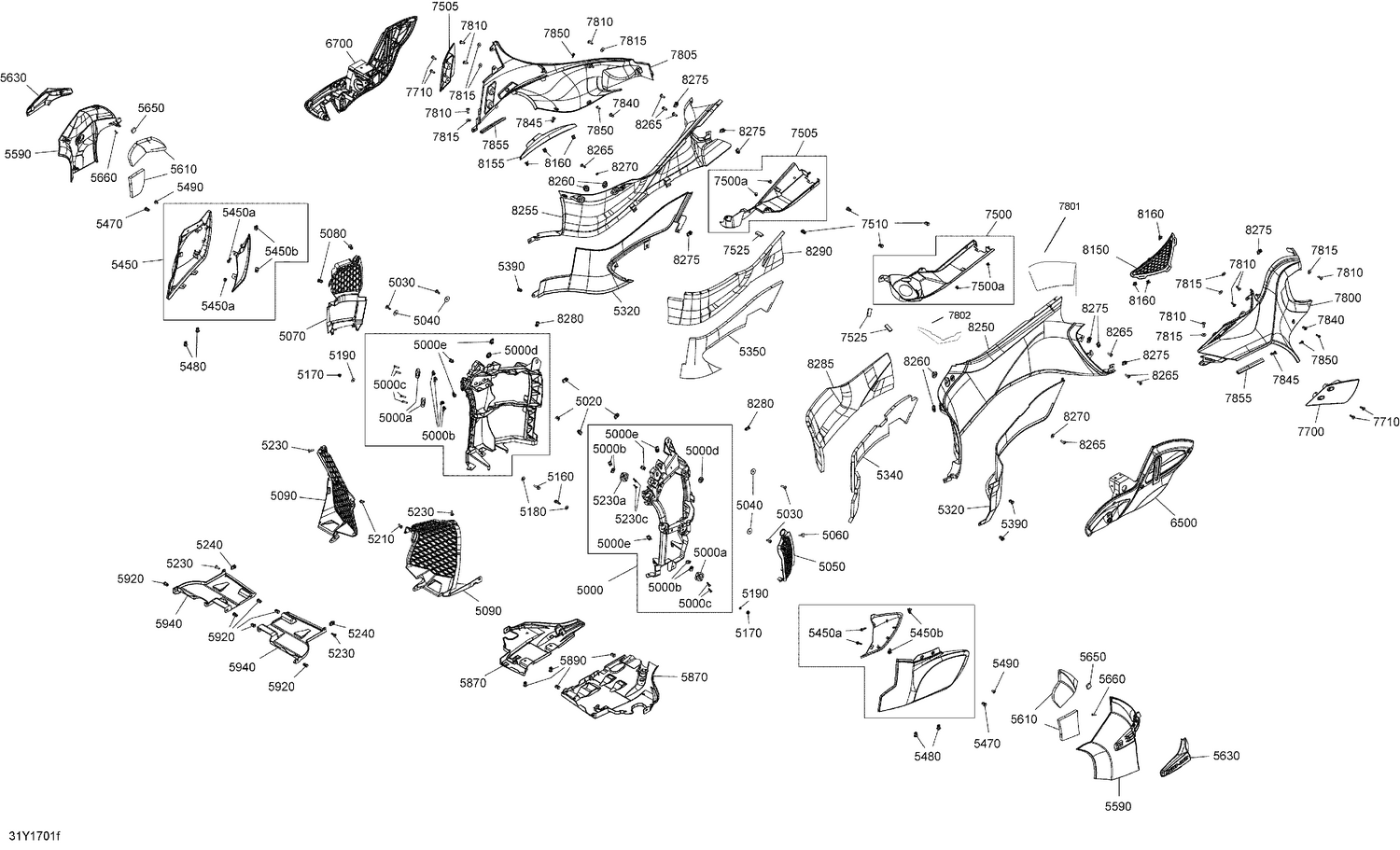

09- Body And Accessories - Body - All Models
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 5000a | 705005055 | Grommet Ass'y |
| 5000b | 250100176 | Panel Nut M5 X 0.8 |
| 5000c | 207152060 | Hex. Screw M5 X 20 |
| 5000d | 705003264 | Grommet |
| 5000e | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 5020 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 5030 | 250000722 | Torx Screw M6 X 20 |
| 5040 | 250200029 | Washer M6 |
| 5050 | 705007307 | LH Side Grille |
| 5060 | 708000759 | Rubber Stopper |
| 5070 | 705004803 | RH Side Grille |
| 5080 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 5090 | 705004789 | LH Radiatior Moulding |
| 5090 | 705004790 | RH Radiatior Moulding |
| 5160 | 207662544 | Hex. Flange Screw M6 X 25 |
| 5170 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 5180 | 234062410 | Flat Washer 6 mm |
| 5190 | 250100163 | Pressure Nut |
| 5210 | 210261650 | Hex. Flange Screw M6 X 16 |
| 5230 | 250000722 | Torx Screw M6 X 20 |
| 5240 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 5320 | 705006820 | LH Lower Pannel |
| 5320 | 705007736 | RH Lower Pannel |
| 5390 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 5450a | 207652044 | Hex.Flange Screw M5 X 20 |
| 5450b | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 5470 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 5480 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 5490 | 250000767 | Torx Truss Screw M6 X 12 |
| 5650 | 293830143 | Rubber Pad |
| 5660 | 250000759 | Torx Truss Pt K40 X 16 |
| 5870 | 705004610 | LH Deflector Pannel |
| 5870 | 705004611 | RH Deflector Pannel |
| 5890 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 5920 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 5940 | 705005438 | LH Skid Plate |
| 5940 | 705005439 | RH Skid Plate |
| 7500a | 293750044 | Tie Rap Mount |
| 7505 | 705004632 | RH Tank Cover Ass'y |
| 7510 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 7525 | 219704364 | Neoprene Seal (1PAC=3M) |
| 7700 | 705004924 | LH Lower Air Deflector |
| 7705 | 705004925 | RH Lower Air Deflector |
| 7710 | 250000712 | Torx Screw M6 X 20 |
| 7801 | 518329812 | Upper Panel Foam |
| 7801 | 518329820 | RH Upper Panel Foam |
| 7802 | 518329821 | LH Upper Panel Foam |
| 7810 | 250000722 | Torx Screw M6 X 20 |
| 7815 | 234062670 | Stainless Steel Flat Washer |
| 7840 | 705003842 | Knob |
| 7845 | 705003746 | Angled Knob |
| 7850 | 250000459 | Torx Screw, K50X16 |
| 7855 | 219704368 | Seal Tray 1000Mm Long |
| 8150 | 705003385 | LH Upper Side Panel Grille |
| 8155 | 705003386 | RH Upper Side Panel Grille |
| 8160 | 517302785 | Edge Clip |
| 8260 | 705000321 | Oval Washer |
| 8265 | 250000722 | Torx Screw M6 X 20 |
| 8270 | 234062670 | Stainless Steel Flat Washer |
| 8275 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 8280 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
