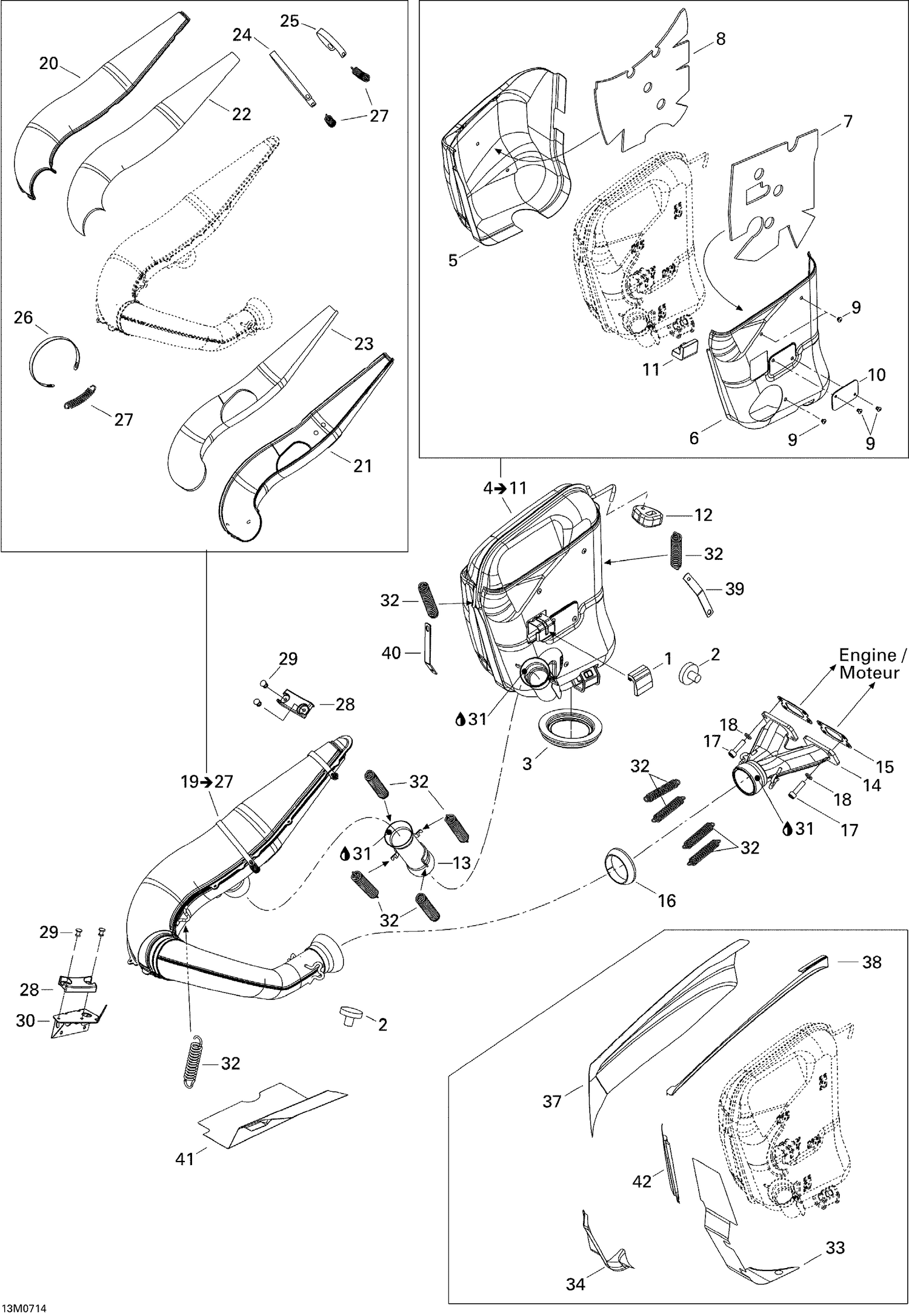

| Ref | Part Number | Description |
|---|
| 1 |
514053372 |
UPPER STOPPER - Call your local BRP dealership |
| 2 |
514053654 |
Rubber Bumper |
| 3 |
514054240 |
EXHAUST GROMMET - Call your local BRP dealership |
| 4 |
514054059 |
Muffler Ass'y |
| 5 |
514054100 |
RH DEFLECTOR - Call your local BRP dealership |
| 6 |
514053843 |
HEAT DEFLECTOR LH - Call your local BRP dealership |
| 7 |
514053844 |
INSULATING WOOL LH - Call your local BRP dealership |
| 8 |
514053947 |
INSULATING WOOL RH - Call your local BRP dealership |
| 9 |
390910000 |
Pop Rivet 3/16” |
| 10 |
514053429 |
Reinforcement |
| 11 |
514054223 |
LOWER STOPPER - Call your local BRP dealership |
| 12 |
514052704 |
RUBBER BUMPER - Call your local BRP dealership |
| 13 |
514054249 |
EXHAUST ELBOW - Call your local BRP dealership |
| 14 |
420673065 |
Exhaust Manifold |
| 15 |
420831849 |
Gasket 1.0 mm |
| 16 |
514053644 |
Exhaust Gasket |
| 17 |
205083044 |
Socket Head Screw M8 X 30 |
| 18 |
514053837 |
Washer |
| 20 |
514054208 |
Rear Upper Half-enveloppe |
| 21 |
514054209 |
REAR LOWER HALF-ENVELOPPE - Call your local BRP dealership |
| 22 |
514054244 |
Upper Insulating Wool |
| 23 |
514054243 |
Lower Insulating Wool |
| 24 |
514053502 |
Retaining Strap |
| 25 |
514053491 |
RETAINING STRAP - Call your local BRP dealership |
| 26 |
514053498 |
Retaining Strap |
| 27 |
514053643 |
Spring |
| 28 |
514053352 |
BUMPER - Call your local BRP dealership |
| 29 |
293150104 |
Pop Rivet 3/16" |
| 30 |
514054131 |
SUPPORT - Call your local BRP dealership |
| 31 |
293800090 |
Sealant, Loctite, 80 ml |
| 32 |
415107100 |
Spring |
| 33 |
514053560 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 34 |
514053622 |
Reflective Sheet |
| 37 |
514054291 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 38 |
514054292 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 39 |
514053725 |
SPRING BRACKET - Call your local BRP dealership |
| 40 |
514053393 |
Spring Bracket |
| 41 |
514054133 |
REFLECTIVE SHEET - Call your local BRP dealership |
