08- Rear Suspension

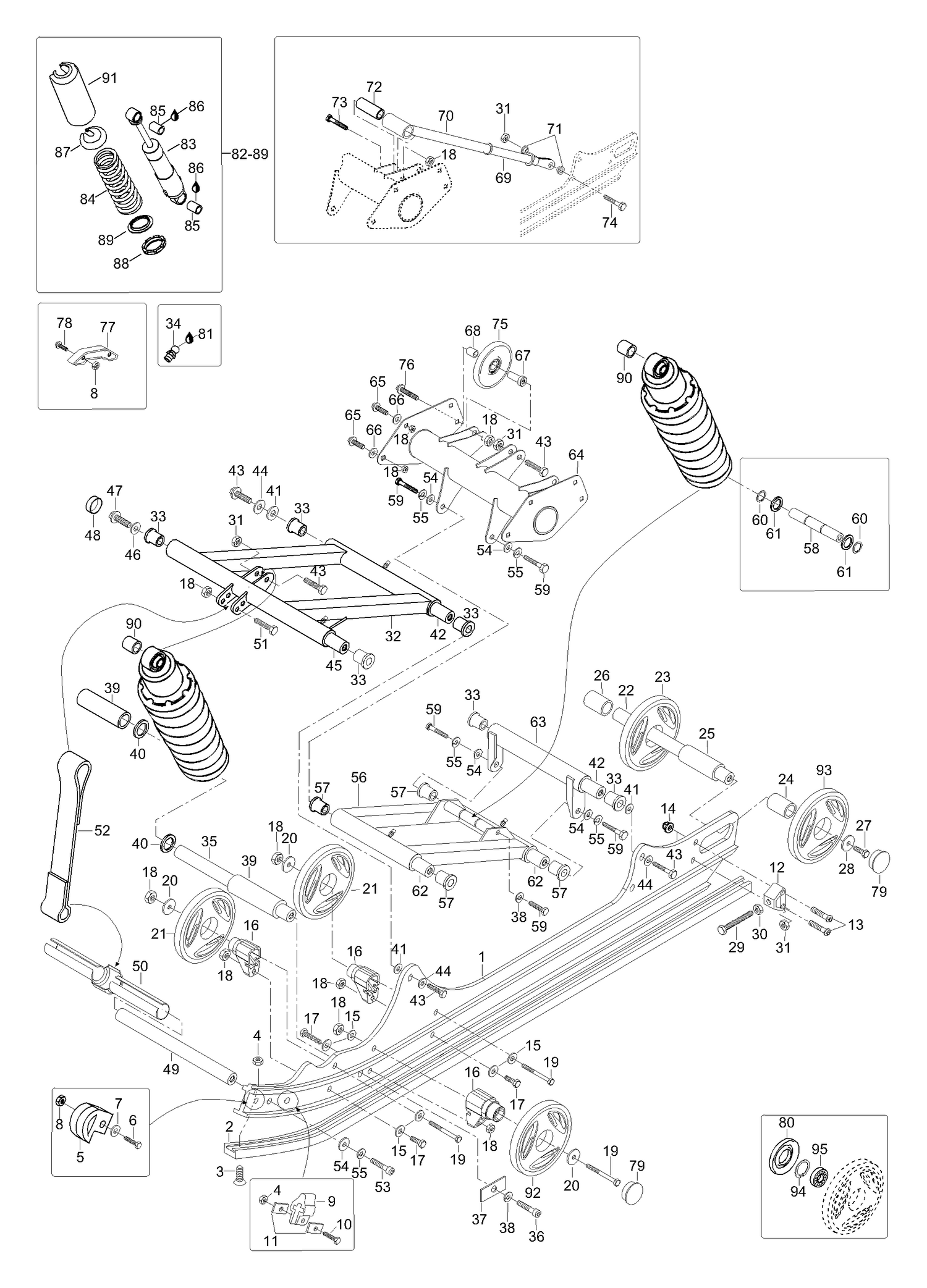

08- Rear Suspension

Parts (94)

RefPart NumberDescription
1 5246388 Runner
2 605355362 Slider shoe This part replaces 5347724.
3 40059 Allen screw M6 x 60
4 33010 Lock Nut M6 (1=10Pcs)
5 605348954 Runner protector
6 40031 Screw M6 x 25
7 20003 Washer
8 233261414 Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200.
9 5442328 STOPPER-RUBBER - Call your local BRP dealership
10 40032 Screw M6 x 30
11 548470 Washer
12 5341633 Tensioner
13 40392 Screw M8 x 45
14 233281414 Hex. Flange Elastic Nut M8 This part replaces 33201.
15 234081410 Flat Washer 8 mm This part replaces 20104.
16 605450182 SUPPORT - Call your local BRP dealership
17 40037 Screw M8 x 25
18 232581414 Hex. Elastic Stop Nut M8 This part replaces 33011.
19 40089 M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership
20 503183100 Washer
21 503191029 Support wheel, 135mm This part replaces 503190216.
22 5341511 Rear shaft
23 503189478 Wheel black
24 5441512 Sleeve
25 5441513 Sleeve
26 5444099 Sleeve
27 40050 Screw M10 x 35
28 503183300 Washer, hardened
29 40239 Screw M10 x 100
30 232006414 Hex. Nut M10 This part replaces 33004.
31 33012 Nut elastic M10
32 5145588 Welded front arm
33 31083 Cushion
34 34011 Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership
35 5347633 Shaft, shock
36 40134 Screw Socket HD.DIN 912 This part replaces 40536.
37 5447940 Support plate
38 20068 Lock washer
39 5346649 Sleeve - Call your local BRP dealership
40 31013 Shim Ring
41 20116 Washer
42 5346900 Shaft
43 40016 Screw M10 x 45
44 512056700 Lock washer
45 5346135 Shaft
46 20090 Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership
47 40243 Screw M12 x 60
48 5448025 Cap
49 5343471 Shaft
50 605349381 Retainer for stopper strap - Call your local BRP dealership
51 207084544 Hex. Screw M8 X 45 This part replaces 40008.
52 605449385 Stopper strap
53 40134 Screw Socket HD.DIN 912
54 20105 Washer, hardened
55 20047 Shim B10 DIN127 -St Zne(1=10pcs) - Call your local BRP dealership
56 605349313 Rear Arm Weld
57 31068 Cushion
58 605449317 Shaft
59 40014 Screw M10 x 40
60 293370056 Circlip 20X1.75 DIN471 This part replaces 31007.
61 31091 Shim ring 20x28x1 DIN 988(1=10pcs) - Call your local BRP dealership
62 5346865 SHAFT - Call your local BRP dealership
63 5345535 Rear arm
64 605249274 Upper arm
65 40058 Locking screw M8 x 20
66 20005 WASHER M10 - Call your local BRP dealership
67 5447945 Sleeve
68 5447946 Sleeve
70 5347851 Pipe
71 5447853 SLIDE BEARING - Call your local BRP dealership
72 5447848 Bearing sleeve - Call your local BRP dealership
73 40011 Hex screw M8 x 60 DIN931(1=10pcs)e - Call your local BRP dealership
74 40042 Screw M10 x 35
75 46027 Idler Wheel - Call your local BRP dealership
76 40150 Locking screw M8 x 90
77 503192731 SLIDING PAD - Call your local BRP dealership This part replaces 5343191.
78 207764044 BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces 40064.
79 570063600 Cap
80 572089000 LABYRINTH SEAL - Call your local BRP dealership
81 413711500 SYNTHETIC GREASE - Call your local BRP dealership
83 23175 Shock, center
83 23176 Shock, rear
84 25053 Spring, center
84 25057 Spring, rear
85 31094 Cushion
86 320006 Loctite 641
87 5346750 Spring stopper
88 230048 Cam
89 230049 Guide spring
90 5446652 Bushing
91 5346754 Shock protector
92 503190797 Support wheel, 135mm/Full Moon This part replaces 503190214.
93 503190856 Support wheel, 165mm/Full Moon This part replaces 503189374.
94 371901700 CIRCLIP - Call your local BRP dealership
