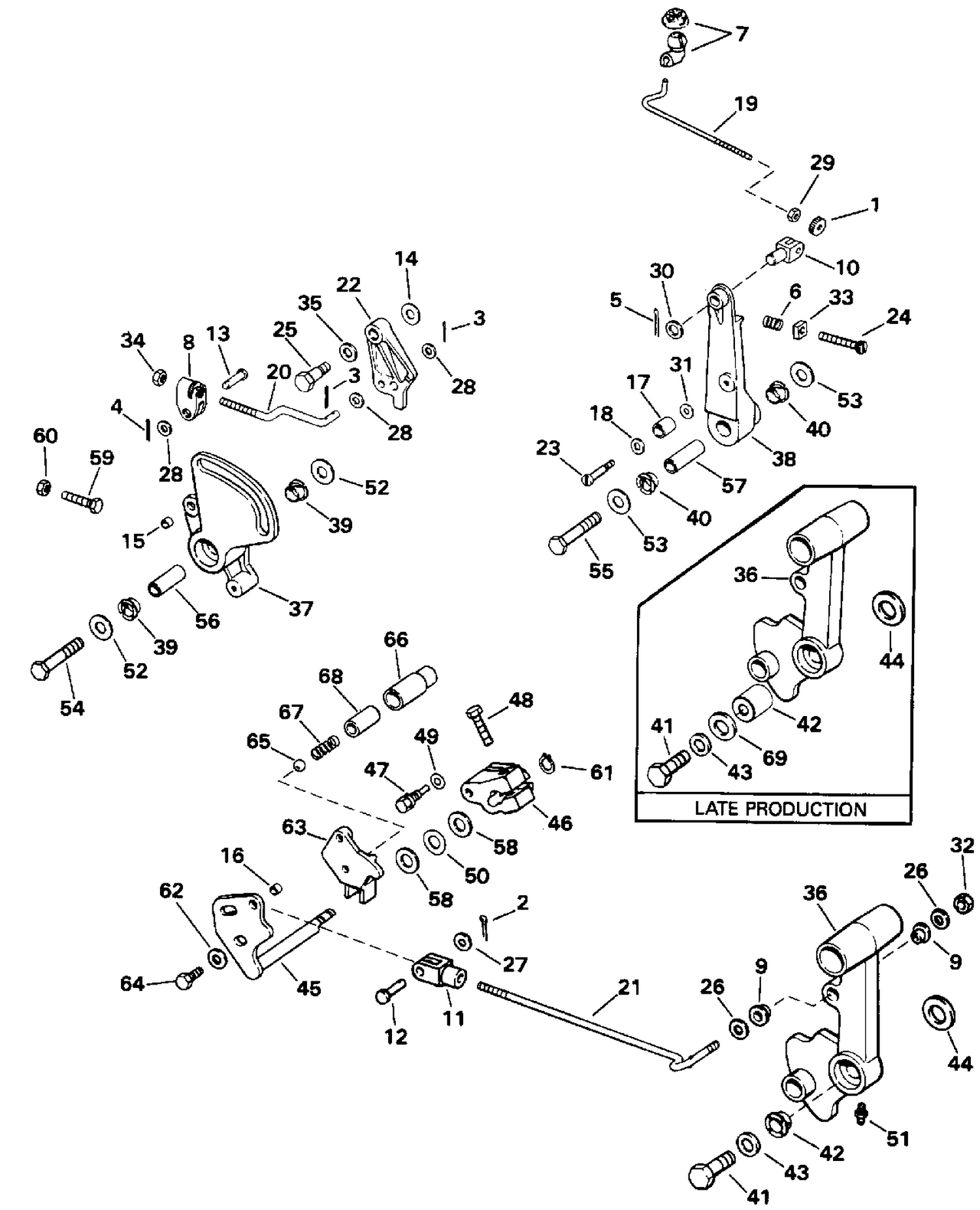

| Ref | Part Number | Description |
|---|
| 1 |
0334738 |
THUMBWHEEL |
| 5 |
0330145 |
COTTER PIN |
| 7 |
0395448 |
BALL & SOCKET ASSY |
| 8 |
0397018 |
YOKE & THUMBWHEEL |
| 10 |
0334737 |
RETAINER, Rod spark advance |
| 15 |
0320302 |
BUSHING, Laink to lever |
| 16 |
0320302 |
BUSHING, Laink to lever |
| 17 |
0432572 |
ROLLER & SLEEVE ASSY |
| 19 |
0334739 |
ROD, Spark advance |
| 20 |
0330902 |
ROD, Throttle lever to cam |
| 21 |
0330903 |
SHIFT ROD |
| 22 |
0330985 |
THROTTLE CAM |
| 23 |
0329677 |
SCREW, Roller |
| 24 |
0328699 |
LEVER, Spark control |
| 25 |
0330933 |
SCREW, reverse lock link |
| 30 |
0330179 |
WASHER |
| 35 |
0328733 |
RONDELLE ÉLASTIQUE, levier de sens de marche |
| 36 |
0436753 |
SHIFT LEVER This part replaces 0331108. |
| 37 |
0330899 |
THROTTLE LEVER |
| 38 |
0330898 |
LEVER, Spark control |
| 41 |
0331109 |
SCREW, Lever |
| 43 |
0127386 |
RONDELLE This part replaces 0303913. |
| 43 |
0206414 |
LOCKWASHER, Pivot screw |
| 45 |
0395523 |
SHIFT, Lever |
| 46 |
0326642 |
LEVER, Shift rod |
| 47 |
0327506 |
PIN, Lever to rod |
| 48 |
0908159 |
SCREW, Bearing clamp |
| 50 |
0306012 |
BOW WASHER |
| 52 |
0908398 |
WASHER |
| 53 |
0908398 |
WASHER |
| 56 |
0331577 |
SLEEVE, Spark control |
| 57 |
0331577 |
SLEEVE, Spark control |
| 58 |
0303775 |
WAHSER, Lever to hsg |
| 59 |
0328693 |
SCREW, Bracket to bracket |
| 61 |
0304612 |
RETAINING RING |
| 62 |
0329241 |
RONDELLE |
| 63 |
0330897 |
SHIFT DETENT |
| 64 |
0304027 |
VIS, arbre de commande de sens de marche |
| 65 |
0318626 |
BILLE |
| 66 |
0330896 |
SLEEVE, Detent spring |
| 68 |
0327178 |
GUIDE |
