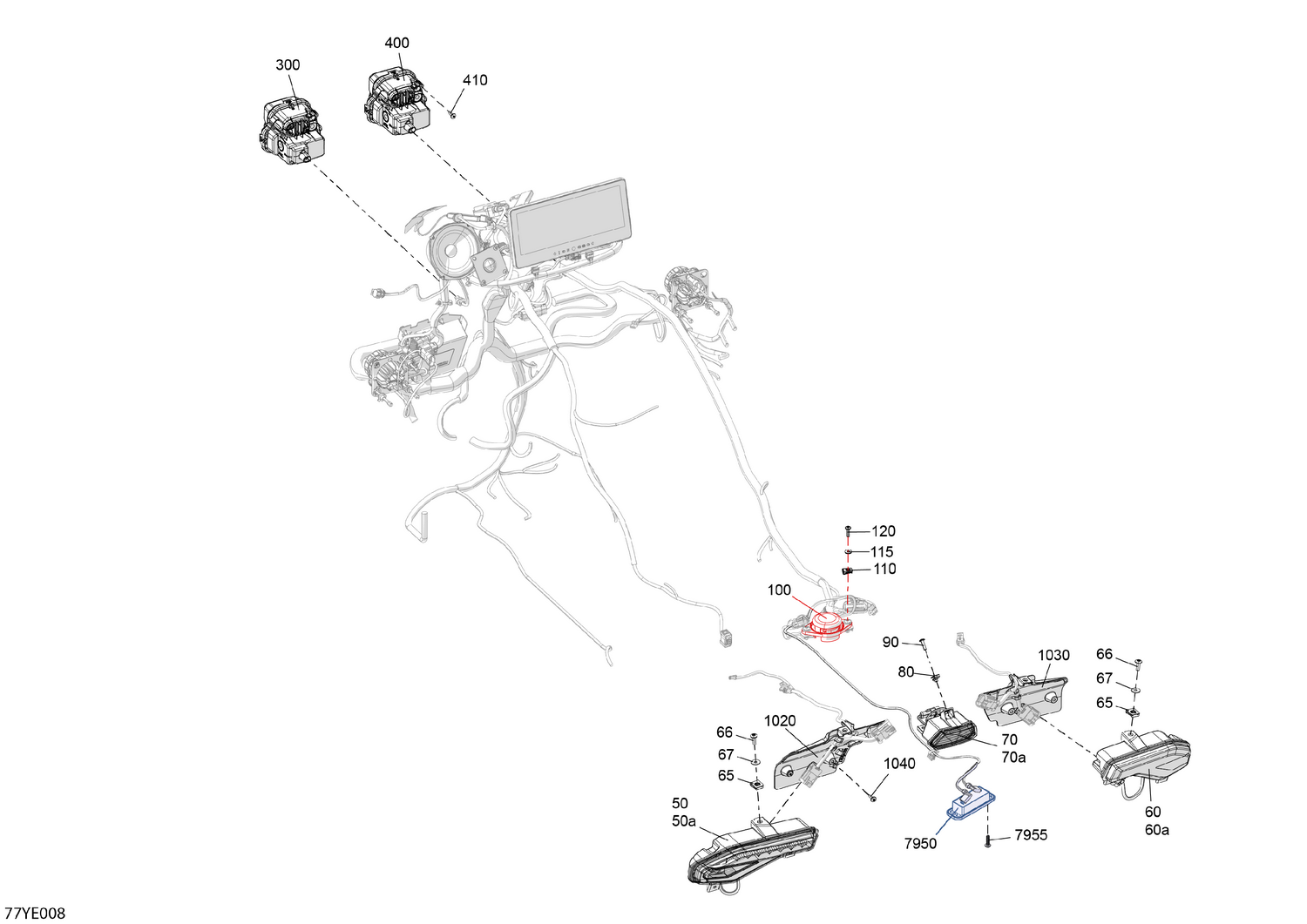

08- Electric - Vehicle Lighting
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 50a | 219800304 | Flasher Bulb |
| 60a | 219800304 | Flasher Bulb |
| 65 | 250100208 | Panel Nut M6 X 1.0 |
| 66 | 250000722 | Torx Screw M6 X 20 |
| 67 | 250200164 | Flat washer M6 |
| 70a | 219800322 | Bulb 12V 10W |
| 80 | 250000958 | Panel Nut M5 X 0.8 |
| 90 | 250000715 | Torx Truss Screw M5 X 20 |
| 100 | 710008103 | Passenger Detection Switch |
| 110 | 250100208 | Panel Nut M6 X 1.0 |
| 115 | 234062670 | Stainless Steel Flat Washer |
| 120 | 250000807 | Torx Truss Screw M6 X 25 |
| 300 | 710008694 | Front Headlight |
| 400 | 710008694 | Front Headlight |
| 410 | 250000720 | Torx Screw K50 X 16 |
| 1020 | 710004643 | LH Connector Support |
| 1030 | 710004644 | RH Connector Support |
| 1040 | 250000720 | Torx Screw K50 X 16 |
| 7950 | 710005501 | License Light |
