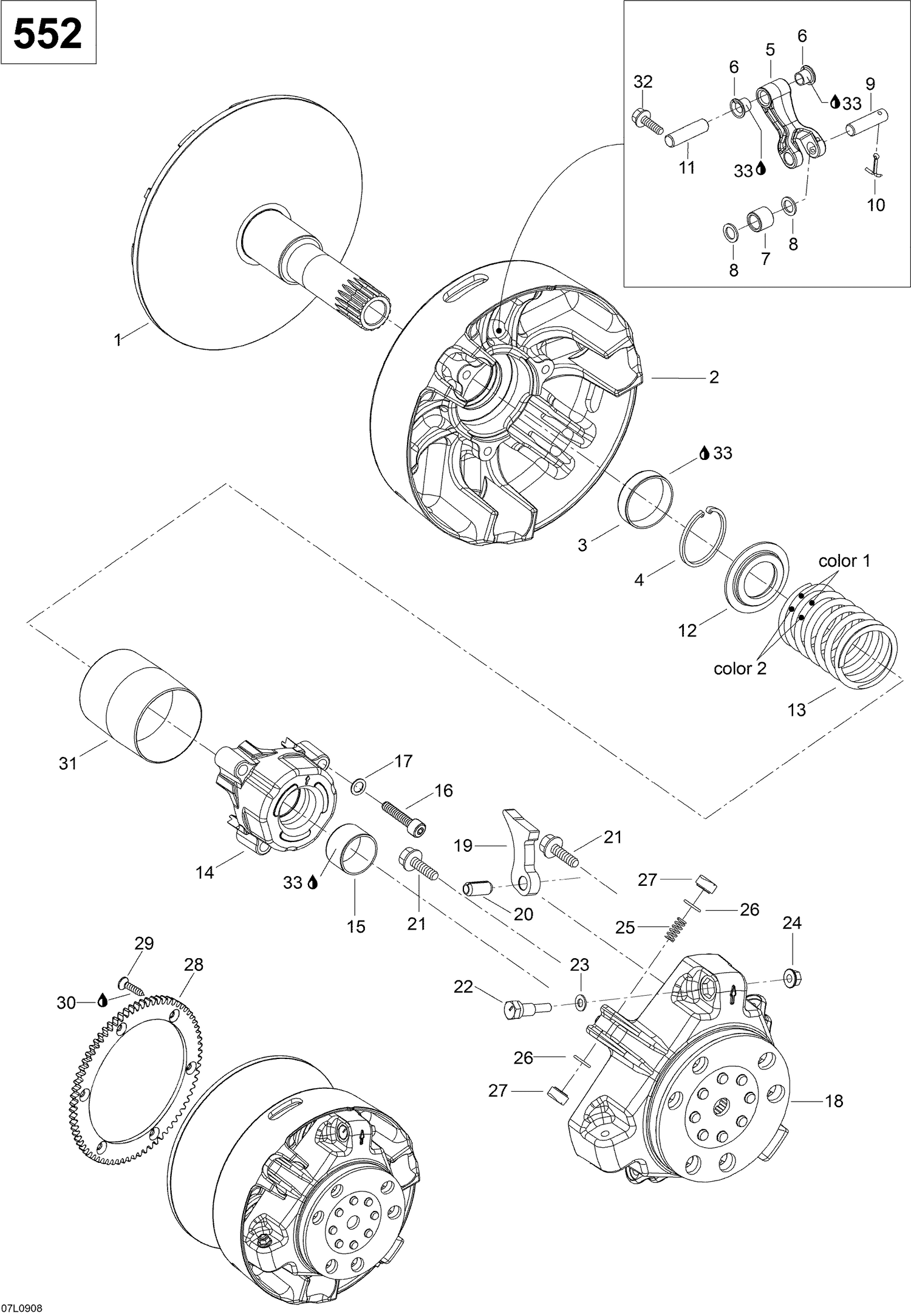

05- Drive Pulley
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 417222937 | Fixed Flange Ass'y |
| 2 | 417222181 | Sliding Flange Ass'y |
| 3 | 417222758 | Bushing |
| 4 | 293370037 | Circlip |
| 5 | 417222671 | Lever |
| 6 | 417004305 | Bushing |
| 7 | 417222947 | Roller |
| 8 | Not | Available As Spare Part - Stopper Washer |
| 9 | 417004308 | Pin |
| 10 | 250400060 | Cotter Pin This part replaces 732958001. |
| 11 | 417223164 | Lever Axle This part replaces 417009202. |
| 12 | 417222312 | Spring Seat |
| 13 | 414742100 | SPRING YELLOW/GREEN - Call your local BRP dealership |
| 14 | 417007500 | Spring Cover Ass'y |
| 15 | 417009204 | Bushing |
| 16 | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 17 | 250200009 | Lock Washer 8 mm |
| 18 | 417222213 | Governor Cup |
| 19 | 417222444 | Ramp 600 |
| 20 | 250400050 | Spring Pin M10 X 22 This part replaces 250400009. |
| 21 | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip This part replaces 250000059. |
| 22 | 417222955 | CALIBRATION SCREW - Call your local BRP dealership This part replaces 417005500. |
| 23 | 417005600 | Washer |
| 24 | 233061414 | Hex. Flange Nut M6 |
| 25 | 417005700 | Spring |
| 26 | 732401030 | O-Ring |
| 27 | 417223021 | Slider Shoe This part replaces 417005800. |
| 28 | 417225070 | Ring Gear_Starter This part replaces 417223042. |
| 29 | 236281684 | Hex. Screw M8 X 16 |
| 30 | Not | Available As Spare Part - Loctite 671, 10 ml |
| 31 | 417009205 | Guard |
| 32 | 250000412 | Hex. Flange Screw M6 X 12, Scotch Grip This part replaces 210361296. |
