Home / BRP / JOHNSON / 2000 / 5 / J5RLSSA Rope Start, Tiller, 20 IN. shaft 2000 / MIDSECTION

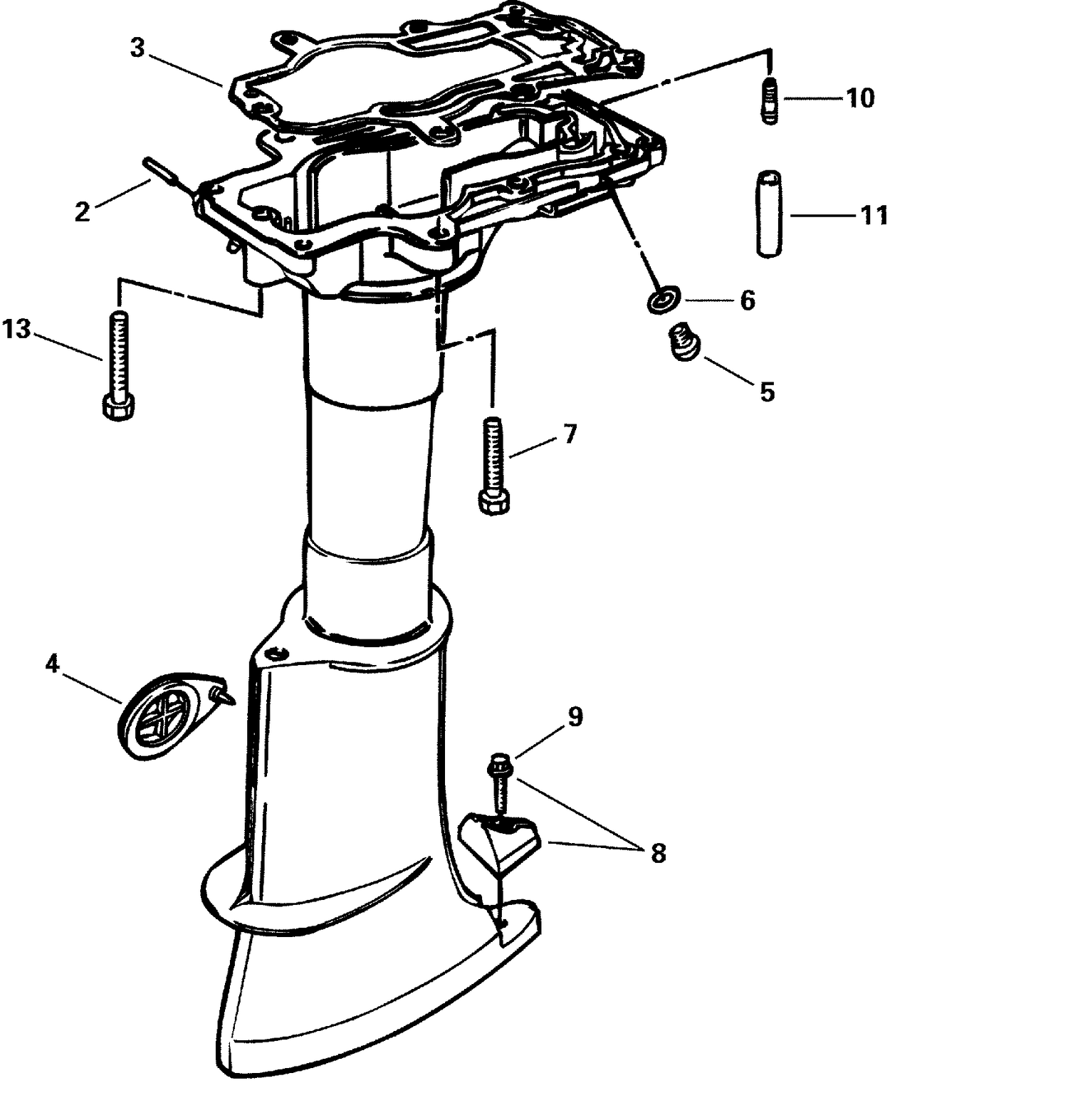

MIDSECTION

MIDSECTION

Parts (7)

RefPart NumberDescription
1 5032510 Housing This part replaces 5031187.
1 5032511 Housing This part replaces 5031188.
4 5030262 COVER, CLUTCH ADJUST HOLE
5 5030094 BOLT (10X7.5mm)
6 5030071 GASKET
7 5030045 BOLT
8 5030267 ANODE ASSY
