| Ref | Part Number | Description |
|---|
| ACC_SUBA |
515178018 |
Female Terminal |
| CL |
278002858 |
Female Housing 20 Circuits |
| CL |
278002860 |
Sealing Cap |
| CL |
515178014 |
Female Terminal |
| CL |
515178018 |
Female Terminal |
| HBL |
710000925 |
Terminal |
| HBL |
710001153 |
Seal Wire |
| HBL |
710007660 |
Housing |
| HBR |
710000925 |
Terminal |
| HBR |
710001153 |
Seal Wire |
| HBR |
710007660 |
Housing |
| HIC_SUBA |
278002852 |
Housing 20 Circuits |
| HIC_SUBA |
278002860 |
Sealing Cap |
| HIC_SUBA |
515178013 |
Male Terminal |
| HIC_SUBA |
515178223 |
Clip Connector |
| LBL |
515177192 |
Female Housing, 2 Circuits |
| LBL |
710000925 |
Terminal |
| LBL |
710001153 |
Seal Wire |
| LBR |
515177192 |
Female Housing, 2 Circuits |
| LBR |
710000925 |
Terminal |
| LBR |
710001153 |
Seal Wire |
| STR12P |
515178223 |
Clip Connector |
| STR12P |
515178578 |
Block 12 |
| 1 |
5007190 |
BEARING Assembly, Center main This part replaces 0387041. |
| 2 |
0344020 |
SCREW, Crankcase head |
| 3 |
0439475 |
CRANKCASE HEAD & BRG. ASSY. |
| 8 |
0434771 |
CRANKSHAFT Assembly |
| 9 |
0326047 |
Retaining Ring |
| 12 |
0337087 |
O-Ring |
| 16 |
0326749 |
SEAL RING |
| 17 |
0434844 |
BEARING, Wrist pin |
| 18 |
5005208 |
ROD ASSY., Connecting This part replaces 0435355. |
| 20 |
0396041 |
BEARING, Connecting rod |
| 21 |
0352960 |
BEARING RACE, Center main This part replaces 0320499. |
| 22 |
5000761 |
PISTON & RING ASSY., Port 0.020 in. O.S. |
| 22 |
5006722 |
Piston & Ring Kit This part replaces 5000762. |
| 22 |
5006723 |
Piston & Ring Kit This part replaces 5000763. |
| 22 |
5006724 |
Piston & Ring Kit This part replaces 5000764. |
| 22 |
5006725 |
Piston & Ring Kit This part replaces 0439357. |
| 22 |
5006726 |
Piston & Ring Kit This part replaces 0439358. |
| 23 |
0436254 |
RING SET, Standard |
| 25 |
5007695 |
CRANKCASE HEAD Assembly, Lower This part replaces 0434792. |

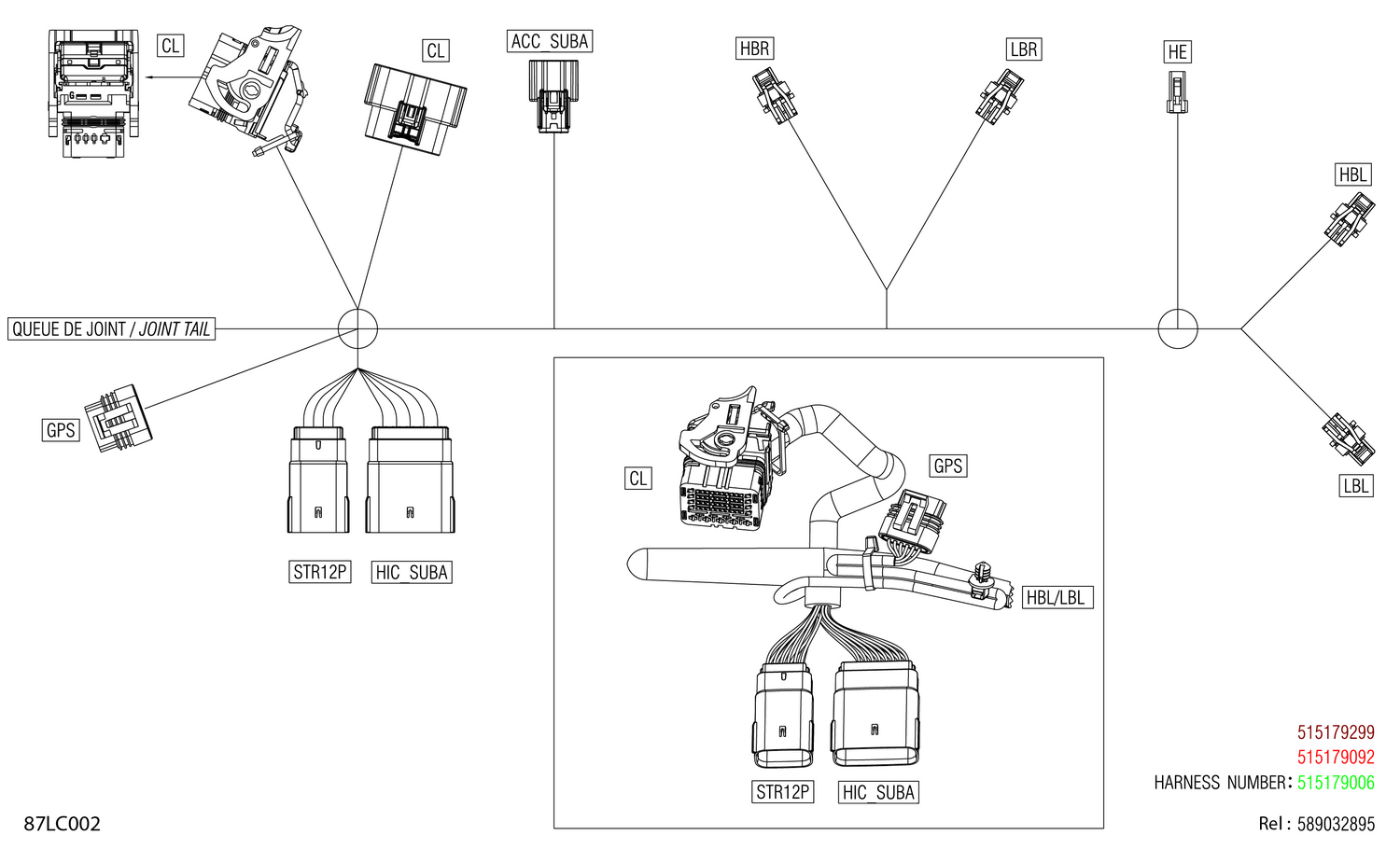

| 3800 |
515179006 |
Hood Wiring Harness |
