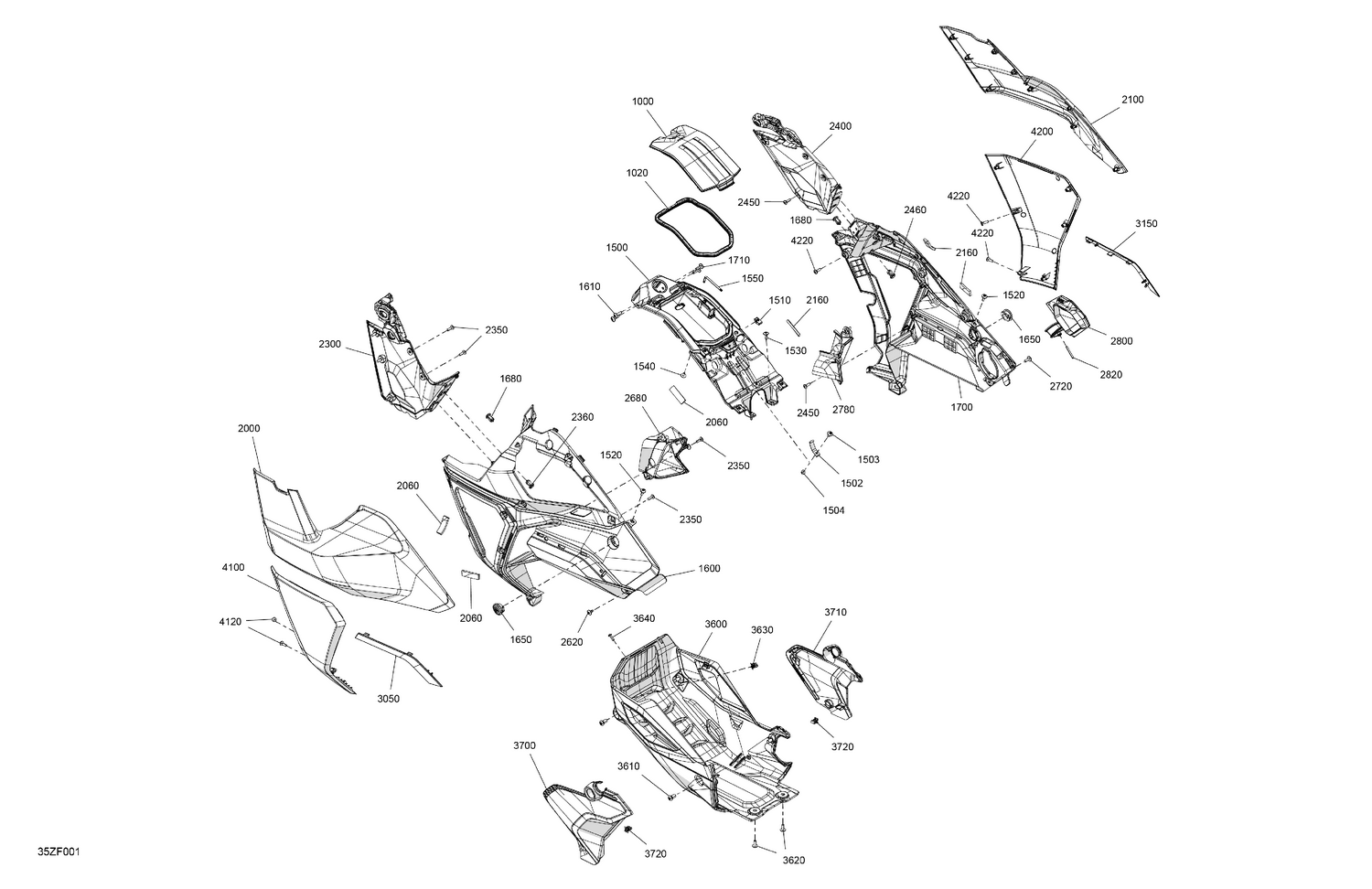

07- Body - System — Parts Catalog

Parts (46)

Ref	Part Number	Description
1000	705019856	Box Cover
1020	708200794	Neoprene Seal Joint
1500	705020277	Central Fairing
1502	708004292	Return Spring
1503	250000947	Torx-Truss M/S Nylon Patch M5X12
1504	233251494	Elastic Flange Nut M5
1510	250100209	Spring Nut U M5 X 0.8
1520	250001357	Truss Torx Screw M5 X 16
1530	250001357	Truss Torx Screw M5 X 16
1540	250000805	Plastite Screw M4 X 10
1550	705018710	Wrench
1600	705018384	LH Central Fairing
1610	250001357	Truss Torx Screw M5 X 16
1650	705018450	Quarter Turn Fastener
1680	293150230	Tuflok Plastic Rivet
1700	705018385	RH Central Fairing
1710	250001357	Truss Torx Screw M5 X 16
2000	705018296	Carbon Black, LH Fairing
2060	705019315	Acoustic Insulation
2100	705018297	Carbon Black, RH Fairing
2160	705019315	Acoustic Insulation
2300	705017707	LH Front Underbody Panel
2350	250000720	Torx Screw K50 X 16
2360	293150230	Tuflok Plastic Rivet
2400	705017708	RH Front Underbody Panel
2450	250000720	Torx Screw K50 X 16
2460	293150230	Tuflok Plastic Rivet
2620	250000947	Torx-Truss M/S Nylon Patch M5X12
2680	705017862	LH Air Deflector
2720	250001357	Truss Torx Screw M5 X 16
2780	705017863	RH Air Deflector
2800	705016323	Charging Hatch
2820	705003750	Pin
3050	705017894	Deep Black, LH Lower Panel Trim
3150	705017895	Deep Black, RH Lower Panel Trim
3600	705015815	Skid Plate
3610	250013011	Shoulder Screw M8 X 16
3620	250000534	Tork Screw M6 X 16
3630	517302785	Edge Clip
3640	250001357	Truss Torx Screw M5 X 16
3700	705017680	LH Lower Panel
3710	705017686	RH Lower Panel
3720	517302785	Edge Clip
4100	705018332	Deep Black, LH Radiator Trim
4120	250000720	Torx Screw K50 X 16
4200	705018333	Deep Black, RH Radiator Trim
