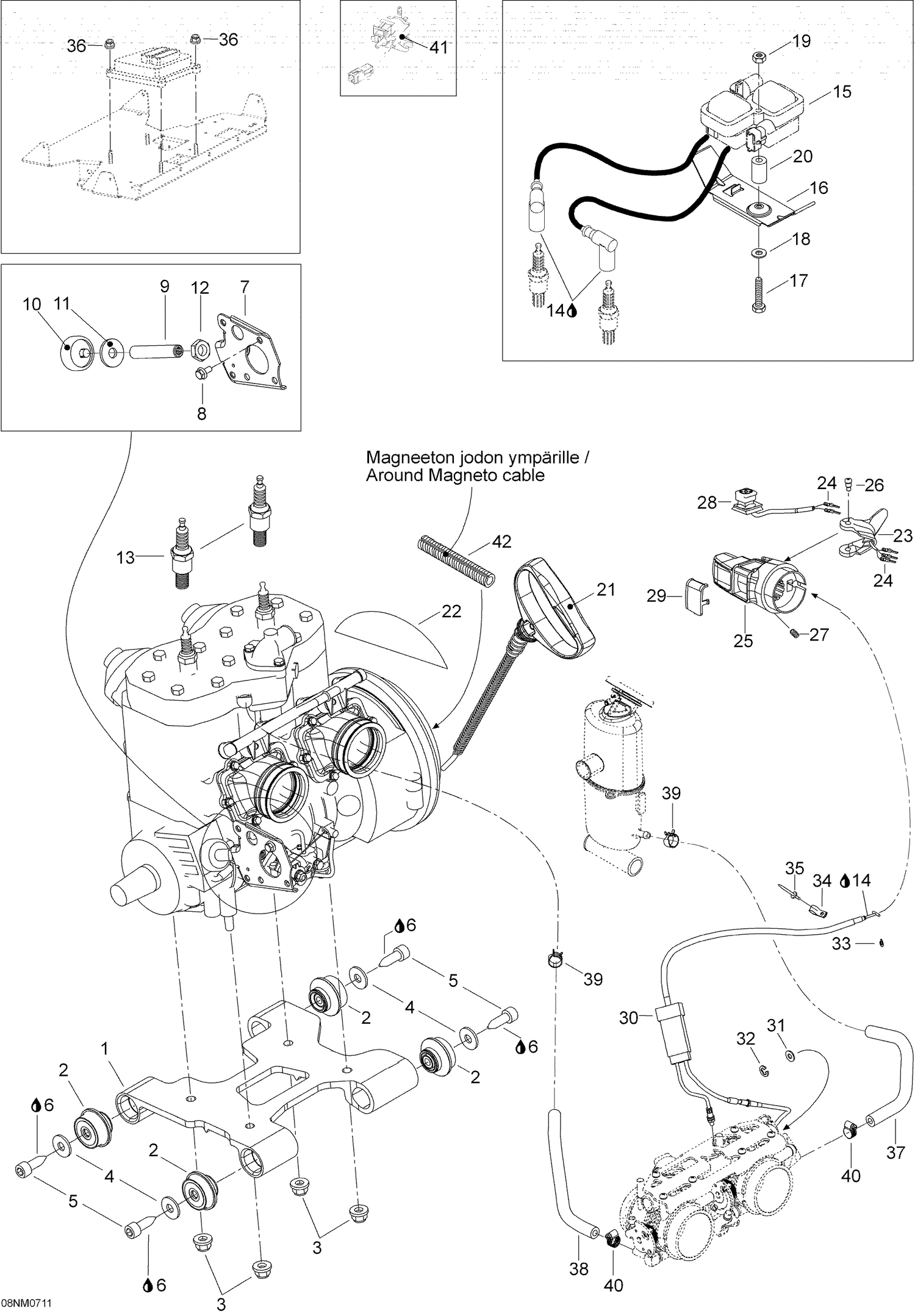

01- Engine And Engine Support
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 512060050 | Engine support |
| 2 | 512059691 | Rubber mount |
| 3 | 33074 | NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership |
| 4 | 250200014 | Flat Washer This part replaces 506151251. |
| 5 | 250000094 | Screw M10 x 30 |
| 6 | 293800060 | Liima Loctite 243, 10ml |
| 7 | 512059840 | PLATE - Call your local BRP dealership |
| 8 | 40327 | Hex. screw M6 x 12 |
| 9 | 250500007 | STOPPER SCREW - Call your local BRP dealership |
| 10 | 512059610 | STOPPER - Call your local BRP dealership |
| 11 | 20023 | Washer |
| 12 | 232170411 | Nut M14 |
| 13 | 512060028 | Spark Plug NGK BR8ECS |
| 14 | 293550004 | Grease |
| 15 | 278001546 | Ignition coil |
| 16 | 512059865 | COIL SUPPORT - Call your local BRP dealership |
| 17 | 40084 | Hex. screw M6 x 45 |
| 18 | 20003 | Washer A6,4 |
| 19 | 33010 | Lock Nut M6 (1=10Pcs) |
| 20 | 512059812 | SPACER - Call your local BRP dealership |
| 21 | 572084400 | Grip |
| 22 | 512059893 | REFLECTIVE SHEET - Call your local BRP dealership |
| 23 | 512059481 | Throttle Handle This part replaces 512059107. |
| 24 | 605642628 | CONNECTOR - Call your local BRP dealership |
| 25 | 512059763 | THROTTLE HOUSING - Call your local BRP dealership |
| 26 | 732601143 | Screw |
| 27 | 414440800 | Socket Set Screw M8 X 10 |
| 28 | 515175410 | Kill switch |
| 29 | 572100901 | Cover |
| 30 | 512060087 | THROTTLE CABLE - Call your local BRP dealership |
| 31 | 234081100 | Washer |
| 32 | 414753500 | Circlip This part replaces 31035. |
| 33 | 31038 | Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership |
| 34 | 27092 | Clamp |
| 35 | 36037 | Rivet |
| 36 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 37 | 605354600 | Hose |
| 38 | 605354601 | HOSE-FORMED - Call your local BRP dealership |
| 39 | 513033029 | Clamp |
| 40 | 605627003 | Clamp |
| 41 | 512059809 | Pidike, lämmitin |
