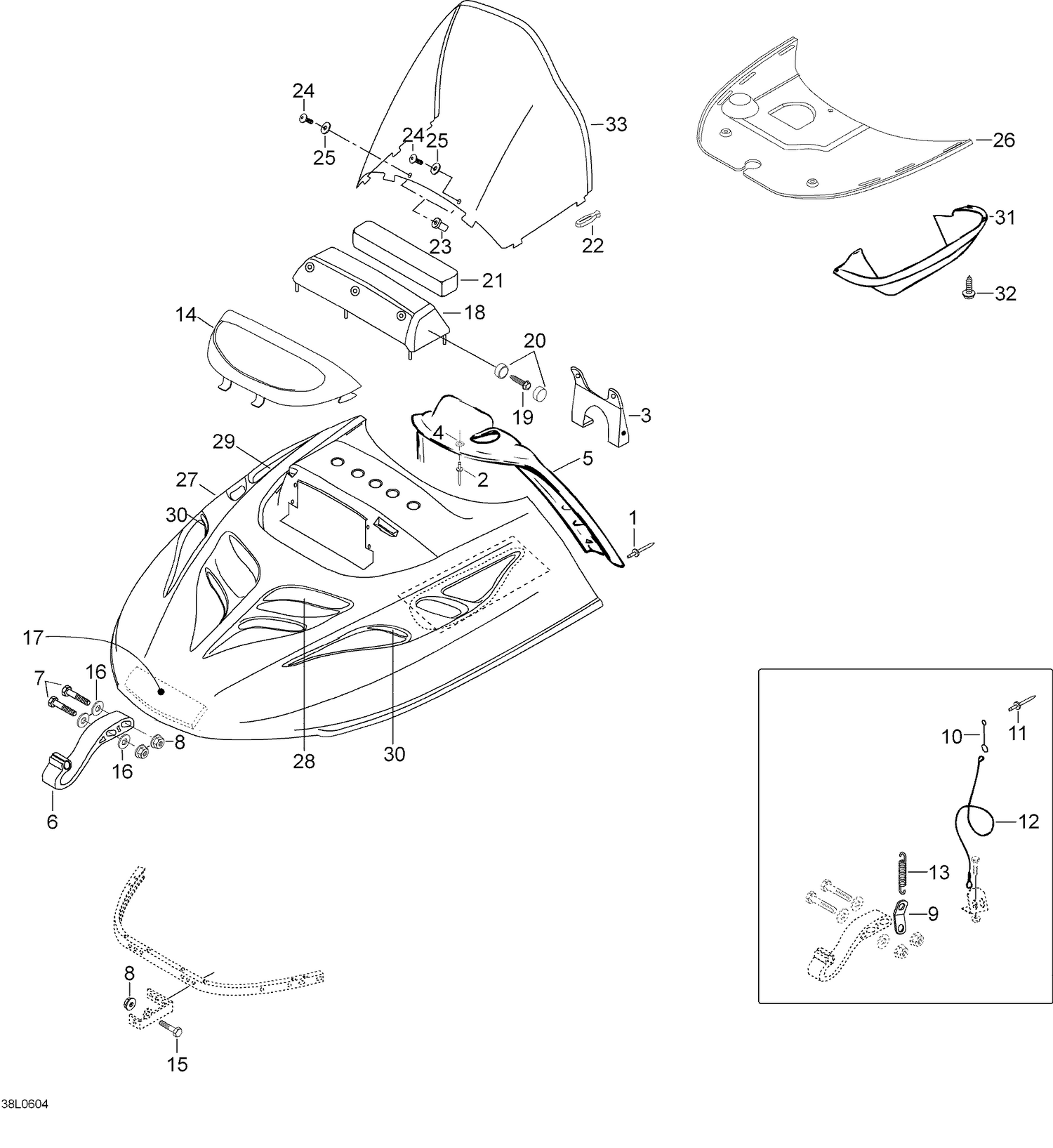

| Ref | Part Number | Description |
|---|
| 1 |
36036 |
Rivet |
| 2 |
36097 |
Rivet Profix 4.0x13 Al musta(1=50pcs) - Call your local BRP dealership |
| 3 |
5347795 |
Rear hood |
| 4 |
20062 |
Washer A4,3 |
| 5 |
605148419 |
Hinge welded |
| 6 |
5343075 |
Screw M6 x 50 |
| 7 |
40193 |
Spring plate |
| 8 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 9 |
5443123 |
Cable keeper |
| 10 |
605449395 |
CABLE KEEPER - Call your local BRP dealership |
| 11 |
36005 |
Washer |
| 12 |
5346947 |
Retainer cable |
| 13 |
5442675 |
Spring |
| 14 |
605252351 |
LAMP MOLDING - Call your local BRP dealership |
| 15 |
40084 |
Screw M6 x 45 |
| 16 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 17 |
44001 |
REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership |
| 18 |
605149010 |
INTAKE COVER - Call your local BRP dealership |
| 19 |
40901 |
Plastofast screw 5 x 20 |
| 20 |
282000 |
Nut protector |
| 21 |
605349056 |
FILTER - Call your local BRP dealership |
| 22 |
570023800 |
Latch |
| 23 |
28055 |
Well-nut |
| 24 |
40156 |
Slot sc. M5 x 20DIN7985m4.6Zne(1=10pcs) - Call your local BRP dealership |
| 25 |
20008 |
Washer A5,3 |
| 26 |
5246742 |
HOOD CENTERPLATE - Call your local BRP dealership |
| 28 |
5142669 |
Middle grill - Call your local BRP dealership |
| 29 |
5242670 |
UPPER GRILLE LH - Call your local BRP dealership |
| 29 |
5242671 |
R.H. upper grill |
| 30 |
5242672 |
R.H. lower grill - Call your local BRP dealership |
| 30 |
5342673 |
L.H. lower grill |
| 31 |
5146986 |
Cooling channel - Call your local BRP dealership |
| 32 |
414644300 |
Black, Dart |
