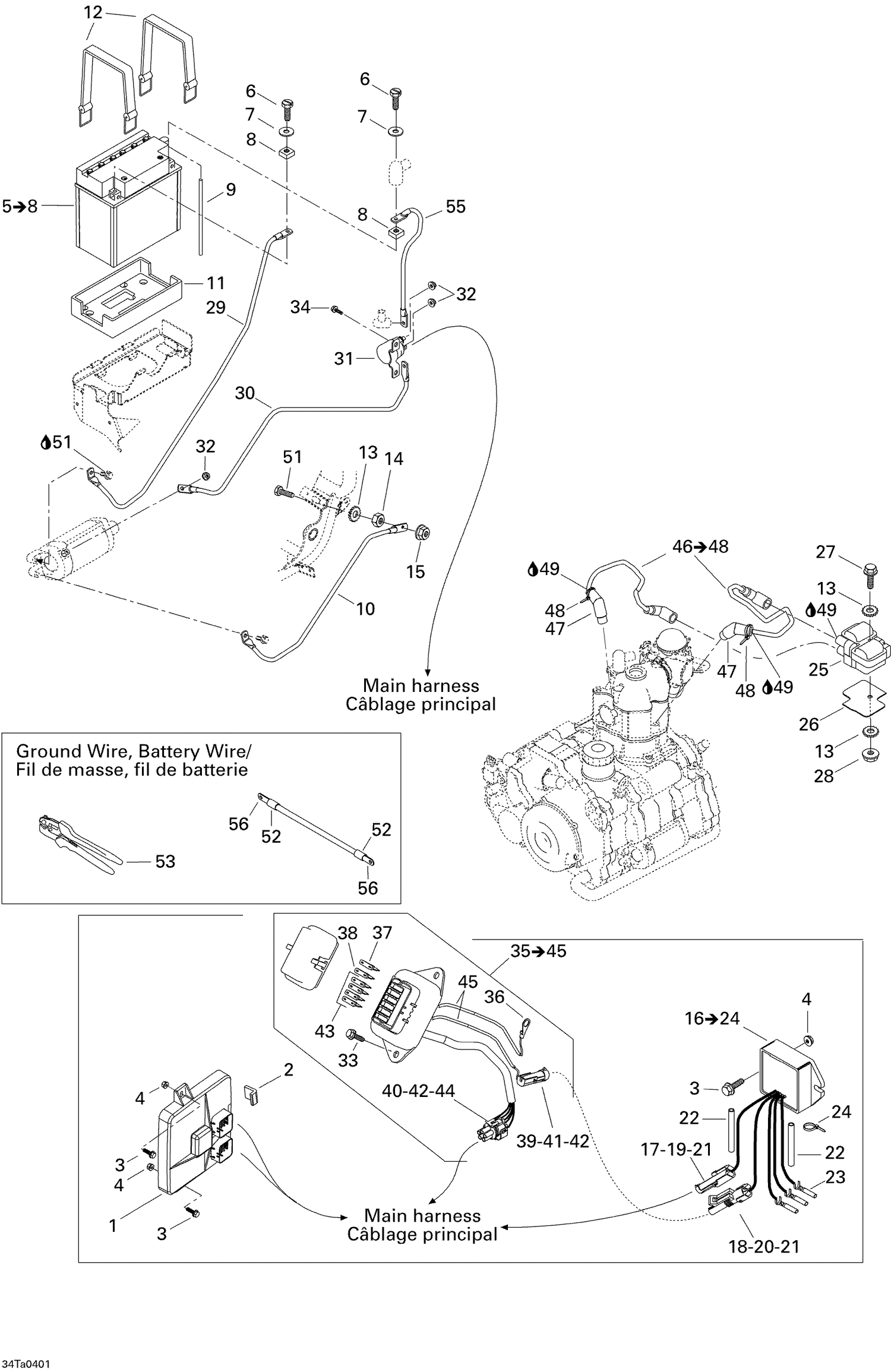

| Ref | Part Number | Description |
|---|
| 1 |
710000315 |
ELECTRONIC MODULE - Call your local BRP dealership |
| 2 |
278001166 |
MODULE PROTECTOR - Call your local BRP dealership |
| 3 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 4 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 6 |
207161644 |
Hex. Screw M6 X 16 This part replaces 211000045. |
| 7 |
211200018 |
FLAT WASHER 6 MM - Call your local BRP dealership |
| 8 |
232061414 |
Hex. Nut M6 This part replaces 211100022. |
| 9 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 10 |
710000022 |
Battery Ground Cable |
| 11 |
278001746 |
Lower Battery Pad |
| 12 |
293850097 |
Retainer Strap This part replaces 293850080. |
| 13 |
234461608 |
External Serrated Lock Washer 6 mm |
| 14 |
232061414 |
Hex. Nut M6 |
| 15 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 17 |
278000222 |
Male Terminal |
| 18 |
278000223 |
Female Terminal |
| 19 |
278000161 |
Female Housing, 1 Circuit |
| 20 |
278000219 |
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership |
| 21 |
278000218 |
Wire Seal |
| 22 |
409901300 |
LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership |
| 23 |
278001661 |
FEMALE TERMINAL - Call your local BRP dealership This part replaces 710000034. |
| 24 |
293750001 |
Tie Wrap 94 mm |
| 25 |
278001546 |
Ignition Coil |
| 26 |
710000073 |
Insulator Pad |
| 27 |
207665044 |
Hex. Flange Screw M6 X 50 |
| 28 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 29 |
710000211 |
Engine Ground Cable |
| 30 |
710000136 |
STARTER POSITIVE CABLE - Call your local BRP dealership |
| 31 |
515176011 |
Starter Relay |
| 32 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 33 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 34 |
250000061 |
Hex. Self-threaded Screw 1/4"-20 X 3/4" |
| 36 |
278001392 |
Open Barrel Terminal |
| 37 |
410917200 |
Fuse, 30 Amperes |
| 38 |
409003900 |
Fuse, 20 Amperes |
| 39 |
409004300 |
Male Terminal |
| 40 |
409007300 |
Female Terminal |
| 41 |
278000161 |
Female Housing, 1 Circuit |
| 42 |
278000218 |
Wire Seal |
| 43 |
278000343 |
Fuse, 15 Amperes |
| 44 |
710000106 |
Female Housing, 5 Circuit |
| 45 |
710000482 |
SHRINK TUBING - Call your local BRP dealership |
| 47 |
420265248 |
Spark Plug Connector This part replaces 710000041. |
| 48 |
293750001 |
Tie Wrap 94 mm |
| 49 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 50 |
293800060 |
Loctite 243, 10 ml |
| 51 |
207162044 |
Hex. Screw M6 X 20 |
| 52 |
219704447 |
Was 710000483 Heat Shrink Tubing |
| 53 |
529035730 |
Crimp Plier |
| 54 |
278001680 |
Ground Cable Battery, no 6, meter) |
| 55 |
278001690 |
Cable Battery, no 6, meter) |
| 56 |
278001682 |
Terminal 45°, Small Hole |
| 278001685 |
FLAT |
TERMINAL, BIG HOLE - Call your local BRP dealership 278001685 |
| 278001685 |
Terminal |
Plate, Gros Trou - Appelez votre concessionnaire BRP local 278001685 |
| 278001688 |
FLAT |
TERMINAL - Call your local BRP dealership 278001688 |
| 278001688 |
Terminal |
Plat - Appelez votre concessionnaire BRP local 278001688 |
| 710000048 |
Joint |
De Fil 710000048 |
| 710000048 |
Wire |
Seal 710000048 |
