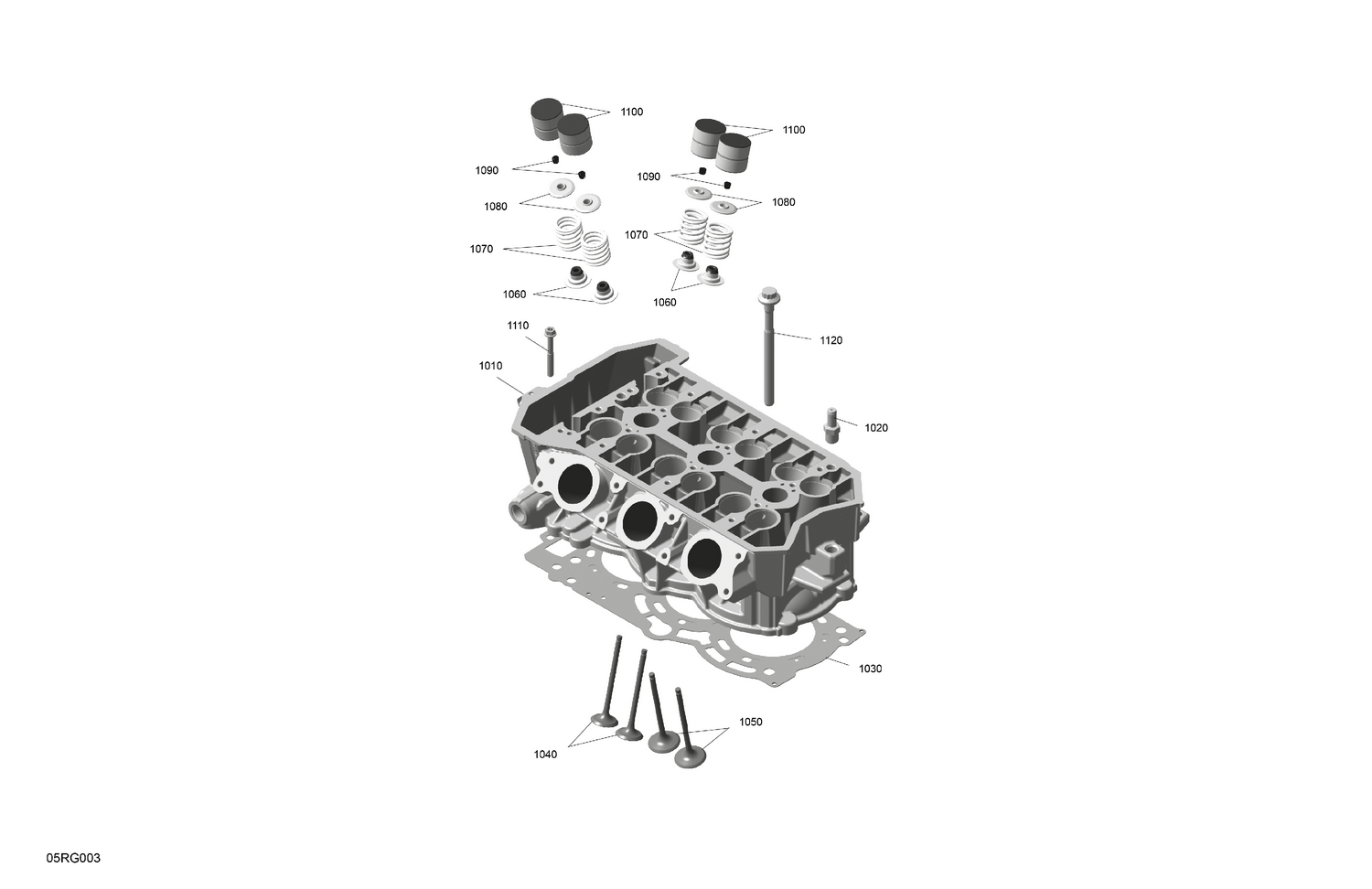

01- ROTAX - Cylinder Head
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1010 | 420413369 | Cylinder Head Ass'y |
| 1020 | 420441420 | Hose Nipple |
| 1030 | 420431816 | Cylinder Head Gasket |
| 1040 | 420855146 | Exhaust Valve 25 MM |
| 1050 | 420855131 | Intake Valve 29MM |
| 1060 | 420431671 | Valve Stem Seal |
| 1070 | 420939540 | Valve Spring |
| 1080 | 420855150 | Valve Spring Retainer |
| 1090 | 420254630 | Cotter Valve |
| 1100 | 420855165 | Valve Lifter Bucket |
| 1110 | 420440324 | Torx Flange Screw M6 X 45 |
