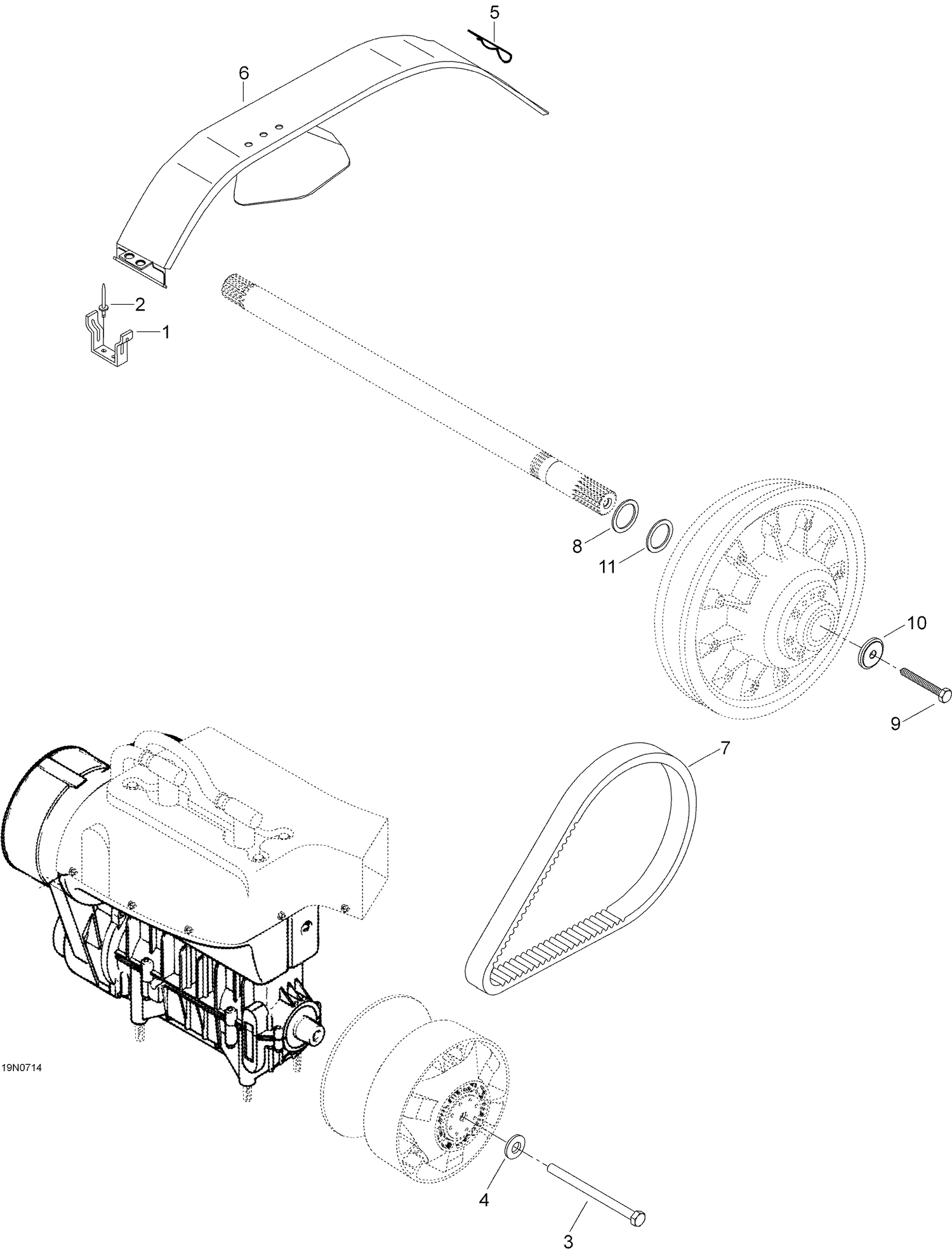

05- Pulley System
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 518202100 | Bracket |
| 2 | 36083 | Rivet |
| 3 | 417113800 | BOLT - Call your local BRP dealership |
| 4 | 20090 | Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership |
| 5 | 5442726 | Hair pin |
| 6 | 5145964 | Belt quard |
| 7 | 414633800 | Drive belt |
| 8 | 548001 | Spacer - Call your local BRP dealership |
| 9 | 40012 | HEX, SCREW M8 X 80 - Call your local BRP dealership |
| 10 | 517302322 | Washer |
