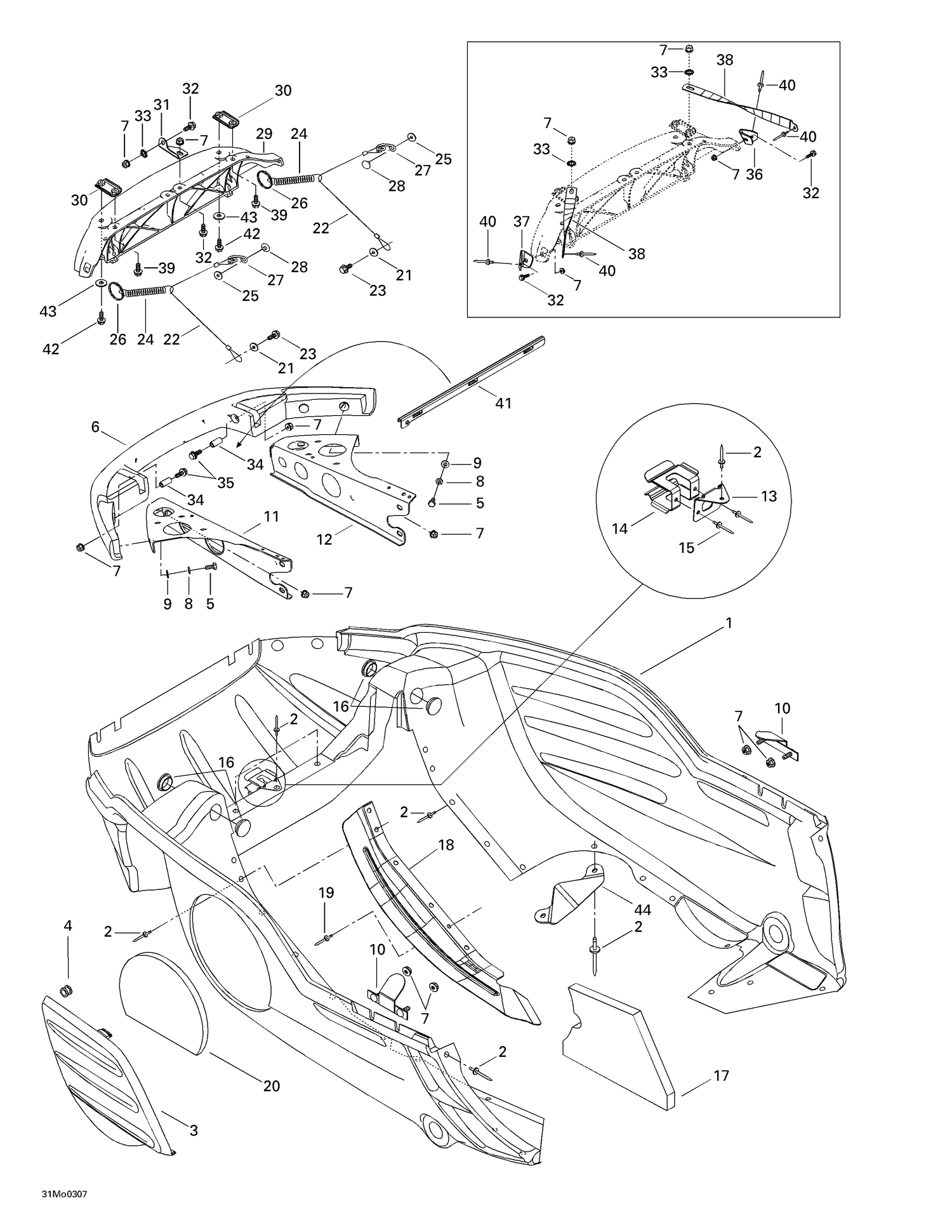

09- Bottom Pan

09- Bottom Pan

Parts (47)

RefPart NumberDescription
1 502006633 Deep Black, Bottom Pan
2 293150108 Pop Rivet 3/16” This part replaces 293150108.
3 502006506 BOTTOM PAN DOOR, BLACK, B-160 - Call your local BRP dealership
4 414036300 Grommet
5 207161444 Hex. Screw M6 X 14
6 502006719 Bumper, Black This part replaces 502006536.
7 233261414 Hex. Flange Elastic Nut M6 x 1.0
8 234161471 Lock Washer M6, Black
9 224061121 Flat Washer
10 502006645 LH Bracket
11 502006597 LH SUPPORT - Call your local BRP dealership
12 502006602 RH Support
13 502006599 Belt Support
14 517281905 Bracket
15 390402400 Pop Rivet 3/16"
16 414916600 Black, Nylon Cap
17 502006558 Bottom Foam
20 502006559 Bottom Pan Door Foam
21 391301600 Washer
22 415093900 RETAINER CABLE - Call your local BRP dealership
23 Not Available As Spare Part - Hex. Tapping Screw
24 415043300 Spring
25 517124300 Washer
26 415058300 RING - Call your local BRP dealership
27 517262800 Bracket
28 293150104 Pop Rivet 3/16"
29 517302631 Hinge
30 517302176 HINGE SIDE PLATE - Call your local BRP dealership
31 517302045 Hinge Center Plate
32 207661654 Hex. Flange Screw M6 X 16 This part replaces 207661684.
33 250200041 Lock Washer Serrated M6 This part replaces 250200000.
34 517302179 BUSHING - Call your local BRP dealership
35 207663544 Hex. Flange Screw M6 X 35
36 517302254 RH Corner Support
37 517302255 LH Corner Support
38 517302837 HOOD CLAMP - Call your local BRP dealership
39 207662544 Hex. Flange Screw M6 X 25
40 390406500 Pop Rivet 3/16"
41 502006647 Bottom Pan Reinforcement
42 207162060 Hex. Forming Screw M6 X 20
43 234062600 Flat Washer M6, Stainless
502006591 Full Moon, Bottom Pan Door 502006591
502006591 Porte De Coque, Pleine Lune, B-211 502006591
502006636 Coque, Pleine Lune, B-211 502006636
502006636 Full Moon, Bottom Pan 502006636
502006719 Bumper, Black This part replaces 502006592. 502006719
502006719 Pare-Choc, Noir This part replaces 502006592. 502006719
