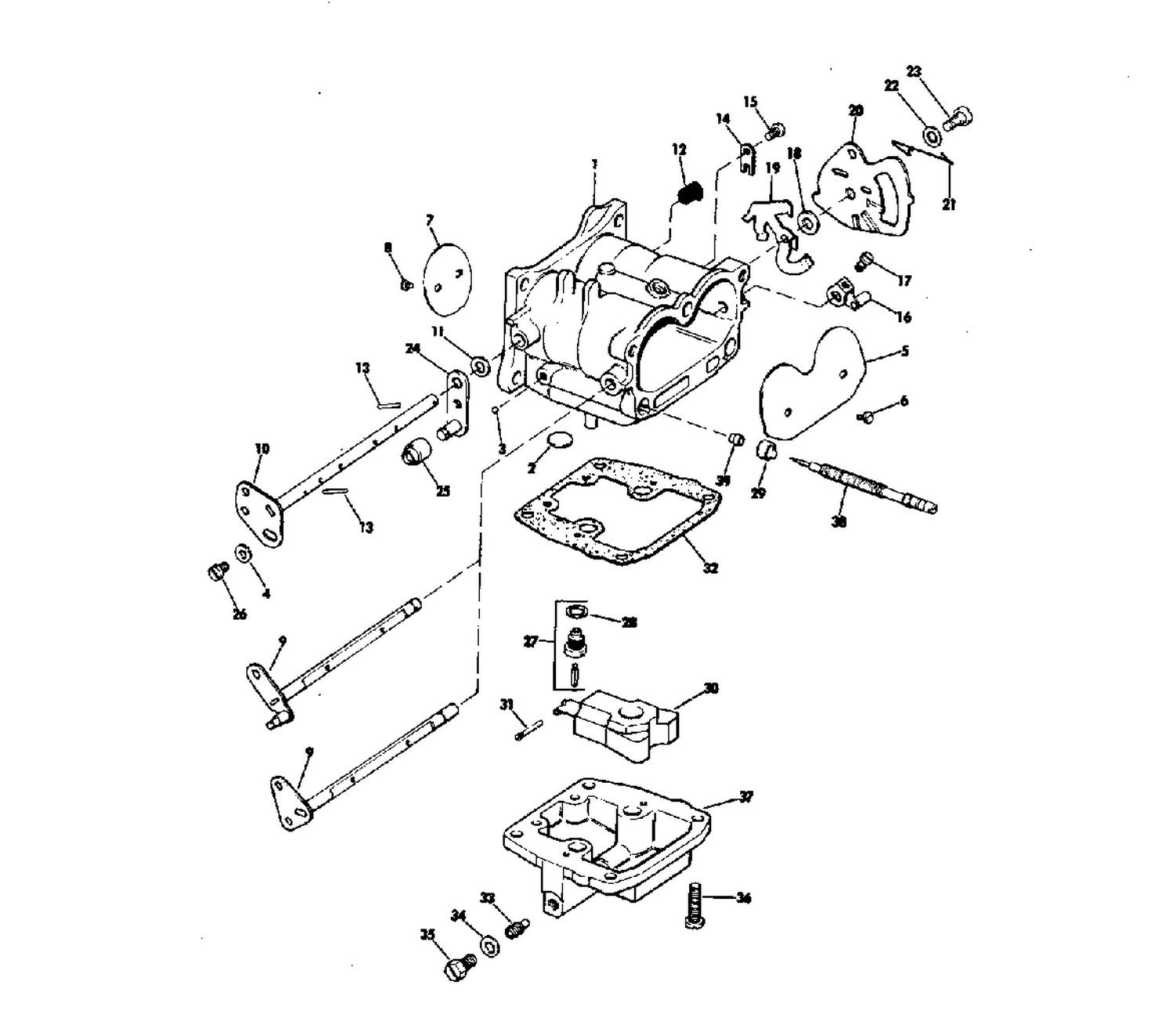

| Ref | Part Number | Description |
|---|
| 1 |
0384261 |
CARBURETOR BODY ASSEMBLY |
| 1 |
0384262 |
CARBURETOR BODY ASSEMBLY |
| 7 |
0314891 |
SPRING, Manual choke |
| 14 |
0314906 |
CLIP |
| 21 |
0314891 |
SPRING, Manual choke |
| 22 |
0310540 |
RONDELLE, arbre de verrouillage de relevage, extérieur |
| 29 |
0315232 |
RETAINER , Needle valve stbd |
| 29 |
0315253 |
RETAINER, Needle port |
| 30 |
0383437 |
FLOAT ASSEMBLY |
| 32 |
0338884 |
GASKET, Float bowl This part replaces 0314884. |
| 33 |
0317183 |
ORIFICE PLUG This part replaces 0314893. |
| 35 |
0307832 |
PLUG, Screw |
| 36 |
0307466 |
SCRES, Bowl to body |
| 37 |
0383825 |
FLOAT CHAMBER ASSEMBLY |
| 38 |
0314892 |
NEEDLE VALVE, Slow speed |
| 0384257 |
0384257 |
CARBURETOR ASSEMBLY COMPLETE, Upper |
| 0384258 |
0384258 |
CARBURETOR ASSEMBLY |
