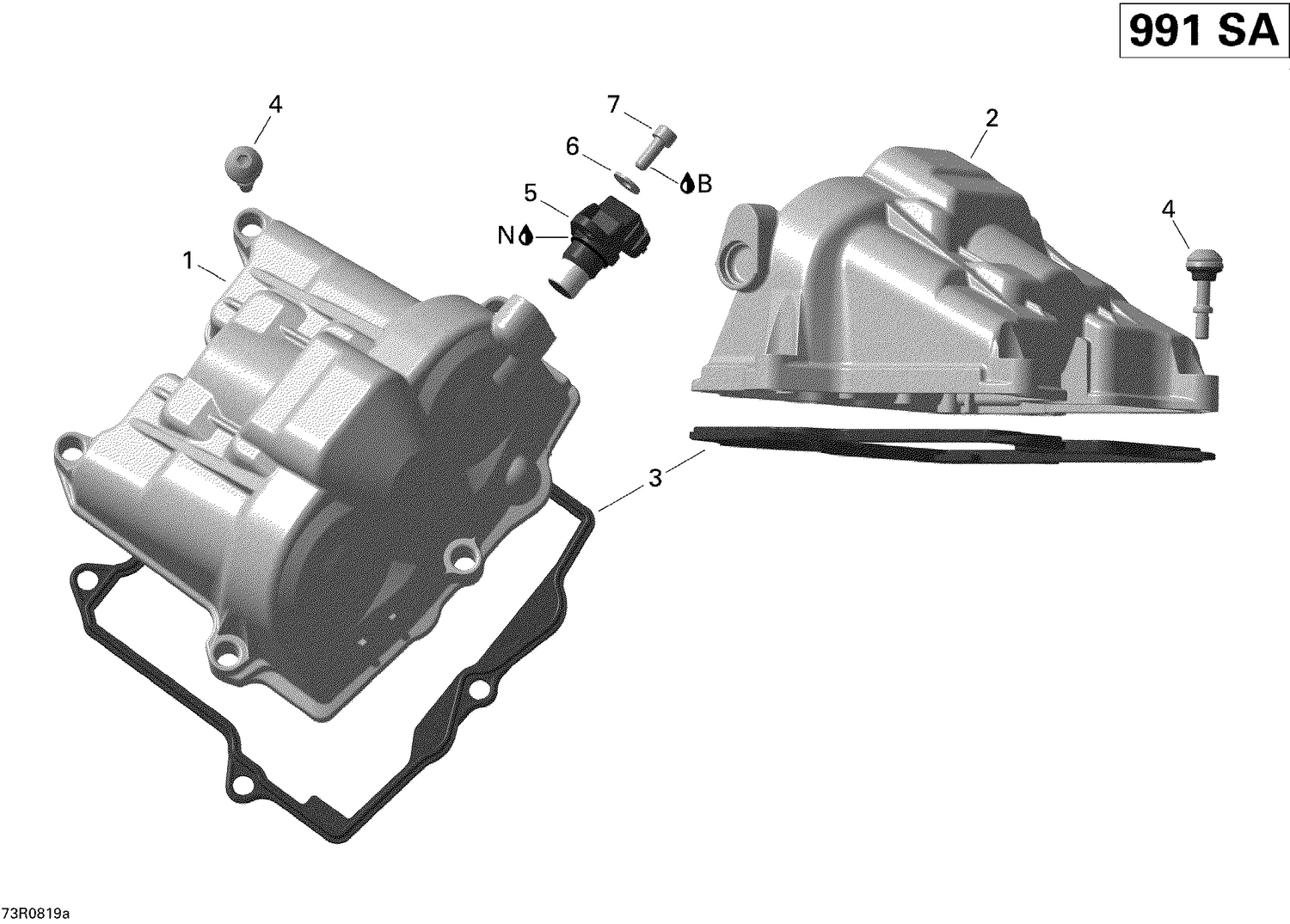

01- Valve Cover
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| 1 | 420611320 | VALVE COVER, FRONT - Call your local BRP dealership |
| 2 | 420611325 | VALVE COVER, REAR - Call your local BRP dealership |
| 3 | 420650345 | Valve Cover Gasket |
| 4 | 420241625 | Distance Screw |
| 5 | 420664046 | Camshaft Position Sensor Ass'y This part replaces 420664042. |
| 6 | 224061121 | Flat Washer |
| 7 | 420241237 | Socket Head Screw M6 x 16 This part replaces 420241236. |
