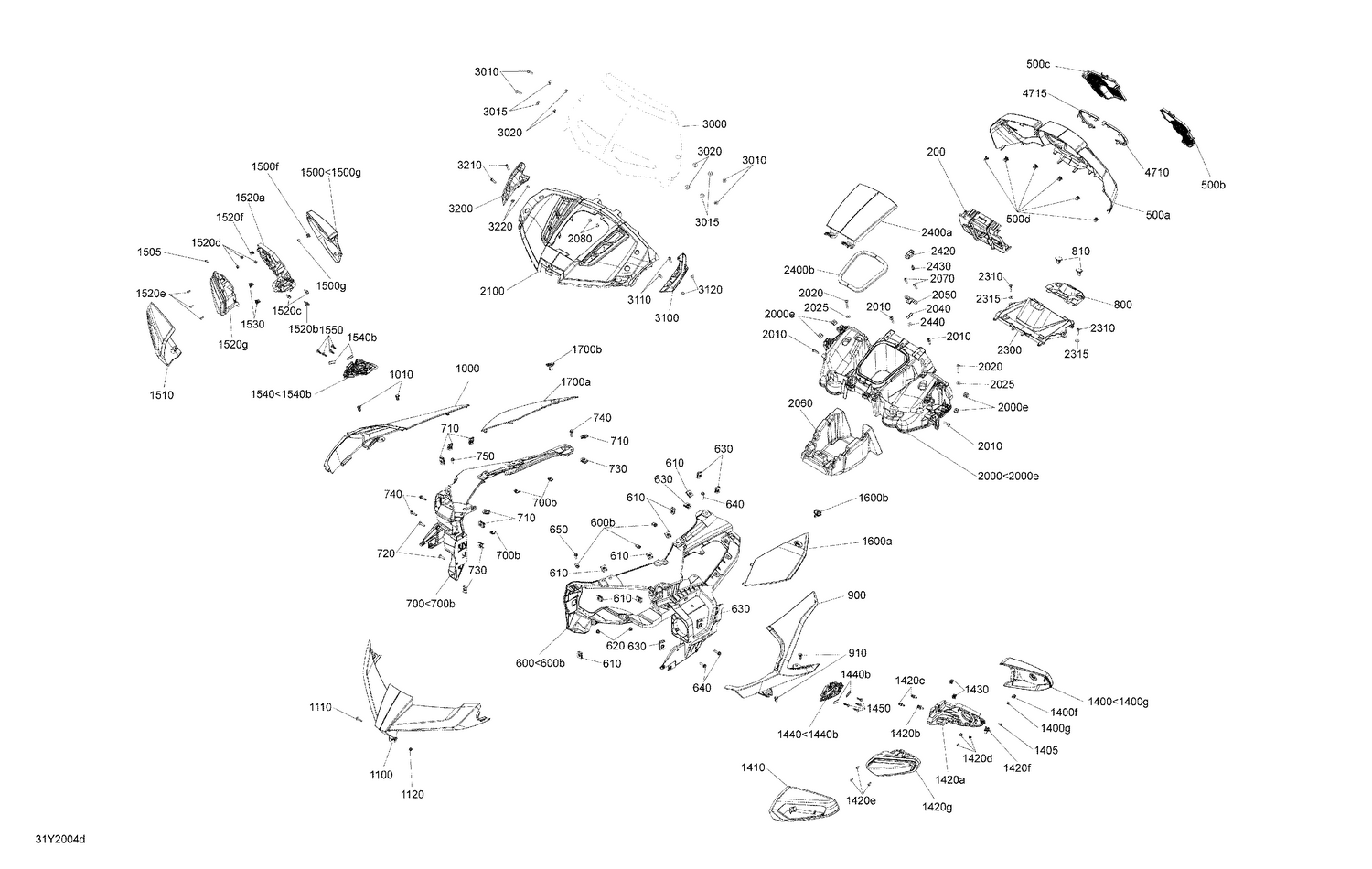

| Ref | Part Number | Description |
|---|
| 200 |
705012178 |
Speedometer Support |
| 500a |
708400230 |
Dashboard |
| 500b |
708400231 |
LH Grille |
| 500c |
708400232 |
RH Grille |
| 500d |
517302785 |
Edge Clip |
| 600b |
250000958 |
Panel Nut M5 X 0.8 |
| 610 |
250100208 |
Panel Nut M6 X 1.0 |
| 620 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 630 |
250100208 |
Panel Nut M6 X 1.0 |
| 640 |
250000793 |
Hex. Flange Screw M6 X 25 |
| 650 |
210261650 |
Hex. Flange Screw M6 X 16 |
| 700b |
250000958 |
Panel Nut M5 X 0.8 |
| 710 |
250100208 |
Panel Nut M6 X 1.0 |
| 720 |
250000758 |
Torx Screw M6 X 25 |
| 730 |
250100208 |
Panel Nut M6 X 1.0 |
| 740 |
250000793 |
Hex. Flange Screw M6 X 25 |
| 750 |
210261650 |
Hex. Flange Screw M6 X 16 |
| 800 |
708400205 |
Switch Bezel |
| 810 |
708400046 |
Cap |
| 900 |
708400340 |
Deep Black, LH Consol Fairing |
| 910 |
293150230 |
Tuflok Plastic Rivet |
| 1000 |
708400338 |
Deep Black, RH Consol Fairing |
| 1010 |
293150230 |
Tuflok Plastic Rivet |
| 1100 |
708400337 |
Deep Black, Nose Fairing |
| 1110 |
250000762 |
Torx Screw M5 X 25 |
| 1120 |
233251494 |
Elastic Flange Nut M5 |
| 1400f |
705010625 |
Spring |
| 1400g |
232561600 |
Hex. Elastic Stop Nut M6 |
| 1405 |
250000577 |
Torx Truss Screw K40 X 12 |
| 1420a |
708400224 |
LH Mirror Support |
| 1420b |
705006733 |
Flat Head Stud M5 |
| 1420c |
708400538 |
Stud Ball M5 This part replaces 705006734. |
| 1420d |
233251434 |
Flange Elastic Nut M5 |
| 1420f |
517302785 |
Edge Clip |
| 1430 |
517306478 |
Clip |
| 1440b |
705006661 |
Spring |
| 1450 |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 1500f |
705010625 |
Spring |
| 1500g |
232561600 |
Hex. Elastic Stop Nut M6 |
| 1505 |
250000577 |
Torx Truss Screw K40 X 12 |
| 1520a |
708400225 |
RH Mirror Support |
| 1520b |
705006733 |
Flat Head Stud M5 |
| 1520c |
708400538 |
Stud Ball M5 This part replaces 705006734. |
| 1520d |
233251434 |
Flange Elastic Nut M5 |
| 1520f |
517302785 |
Edge Clip |
| 1530 |
517306478 |
Clip |
| 1540b |
705006661 |
Spring |
| 1550 |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 1600a |
708400238 |
Black Polycarbonate, LH Acces Panel |
| 1600b |
708400065 |
Cover Latch Quarter Turn |
| 1700a |
708400239 |
Black Polycarbonate, RH Acces Panel |
| 1700b |
708400065 |
Cover Latch Quarter Turn |
| 2000e |
269502408 |
Housing Nut M6 This part replaces 269501166. |
| 2010 |
250000807 |
Torx Truss Screw M6 X 25 |
| 2020 |
250000732 |
Torx Screw Nylon |
| 2025 |
234052670 |
Stainless Steel Flat Washer M5 |
| 2040 |
705006661 |
Spring |
| 2050 |
708400215 |
Receptacle |
| 2060 |
708400103 |
Pod Foam |
| 2070 |
250000762 |
Torx Screw M5 X 25 |
| 2080 |
233251494 |
Elastic Flange Nut M5 |
| 2300 |
708400108 |
Column Fairing |
| 2310 |
250000762 |
Torx Screw M5 X 25 |
| 2315 |
234052670 |
Stainless Steel Flat Washer M5 |
| 2400a |
708400217 |
Glove Box Door |
| 2400b |
293250406 |
Seal |
| 2420 |
708400213 |
Lever |
| 2430 |
705011056 |
Stud M5 |
| 2440 |
234052670 |
Stainless Steel Flat Washer M5 |
| 3000 |
708400342 |
Windshield |
| 3010 |
250000528 |
Torx Screw M5 X 20 |
| 3015 |
234052670 |
Stainless Steel Flat Washer M5 |
| 3020 |
293830190 |
Rubber Washer |
| 3100 |
708400127 |
Carbon Black, LH Windshield Base |
| 3110 |
250000328 |
Torx Screw M6 X 25, Scotch Grip |
| 3120 |
234061600 |
Stainless Flat Washer M6 |
| 3200 |
708400128 |
Carbon Black, RH Windshield Base |
| 3210 |
250000328 |
Torx Screw M6 X 25, Scotch Grip |
| 3220 |
234061600 |
Stainless Flat Washer M6 |
| 4710 |
705012349 |
Deep Black, LH Trim Gauge |
