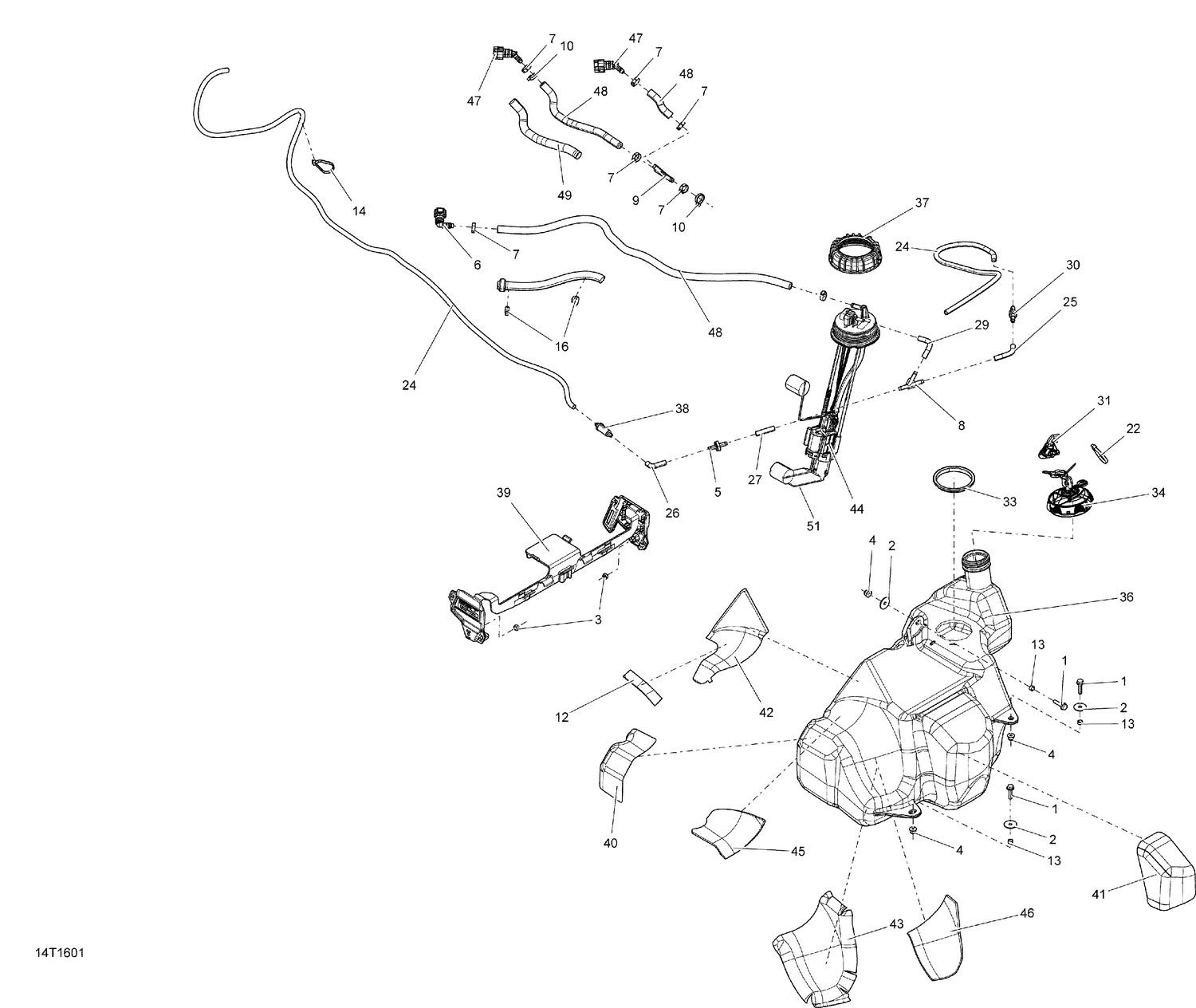

02- Fuel System - All Models
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207662544 | Hex. Flange Screw M6 X 25 |
| 2 | 224060251 | Washer |
| 3 | 232561600 | Hex. Elastic Stop Nut M6 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 5 | 275500398 | Check Valve |
| 7 | 293650047 | Crimp Clamp, 15.3-706R |
| 8 | 293710059 | Y-Fitting |
| 12 | 293830172 | Rubber Pad |
| 13 | 293900104 | Bushing |
| 14 | 414115200 | Tie-Rap 180 mm |
| 24 | 219704410 | Polyurethane Hose 10000Mm Long |
| 30 | 513033469 | Check Valve |
| 33 | 709000208 | Seal |
| 34a | 707000666 | Padlock with Key |
| 36 | 709000799 | Fuel Tank Ass'y This part replaces 709000310. |
| 37 | 709000328 | Fuel Pump Module Nut |
| 38 | 709000330 | Filter |
| 39 | 709000359 | Hose Support Ass'y |
| 40 | 709000381 | Heat Reflective Sheet |
| 41 | 709001071 | Heat Reflective Sheet This part replaces 709000382. |
| 42 | 709000387 | Heat Reflective Sheet |
| 43 | 709000388 | Heat Reflective Sheet |
| 44 | 709000461 | Fuel Pump |
| 48 | 219704440 | Was 709000163 Fuel Line |
