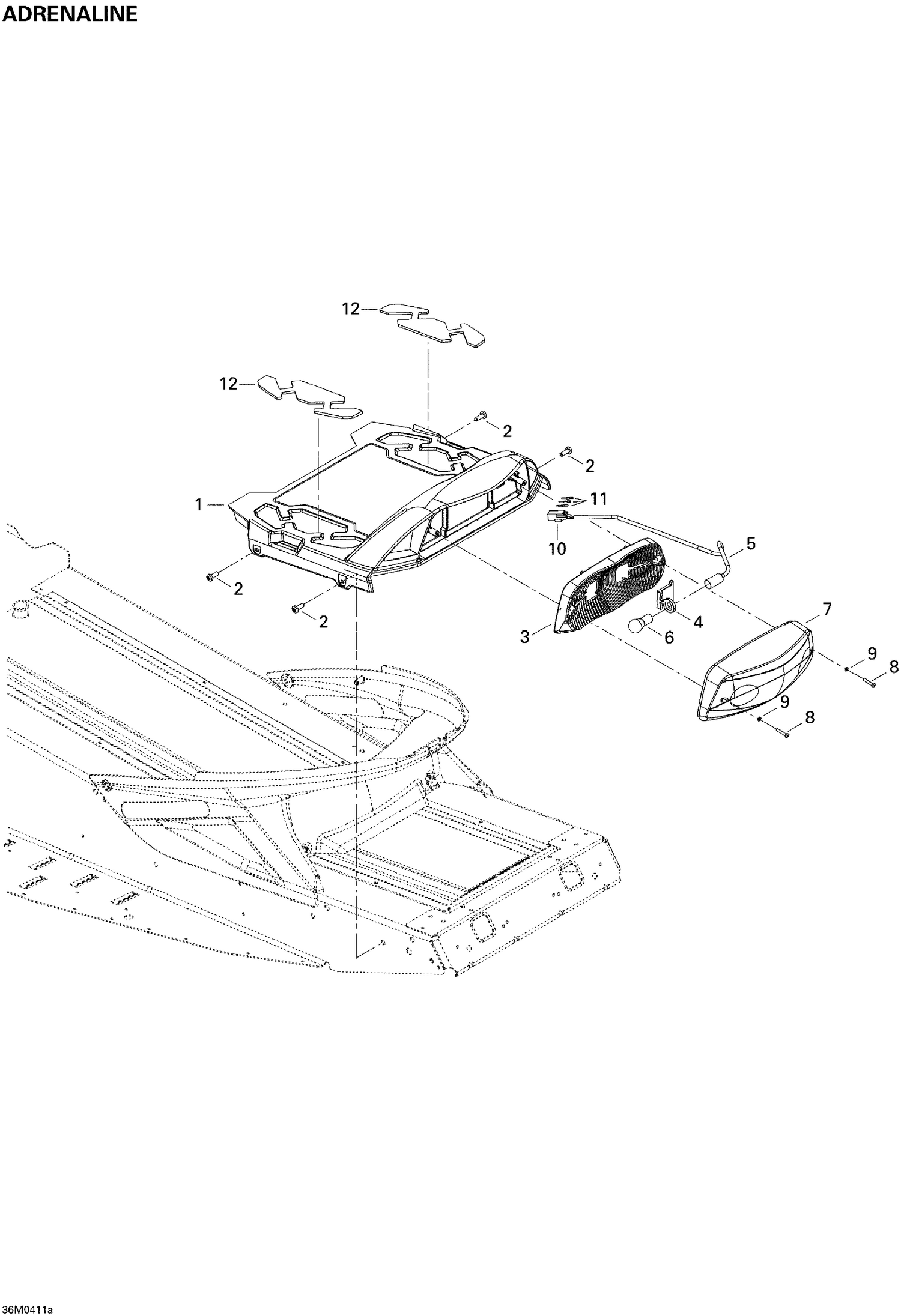

09- Luggage Rack (Adrenaline)
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 511000242 | Luggage Rack |
| 2 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 3 | 510004018 | REFLECTOR - Call your local BRP dealership |
| 4 | 414979411 | Rubber Damper |
| 5 | 515176045 | Fitting |
| 6 | 520000758 | Bulb This part replaces 410504100. |
| 7 | 511000315 | Lens |
| 8 | 209632580 | PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership |
| 9 | 414516400 | Washer - Call your local BRP dealership |
| 10 | 515175494 | Male Housing, 3 Circuits |
| 11 | 515175232 | Male Terminal |
