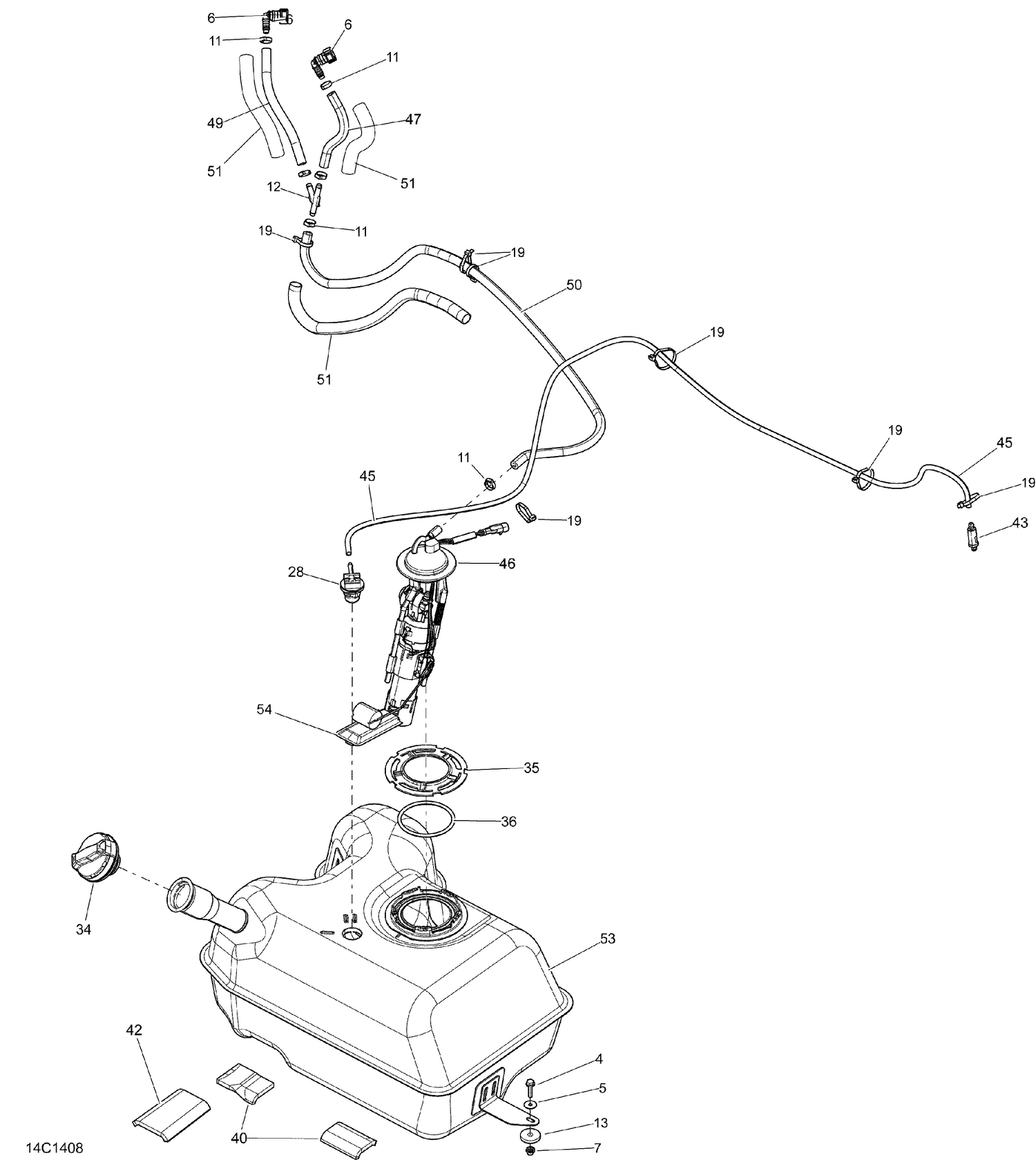

02- Fuel System
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 207662544 | Hex. Flange Screw M6 X 25 |
| 5 | 224060201 | Flat Washer |
| 6 | 275500700 | Quick Attach 90° |
| 7 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 11 | 293650047 | Crimp Clamp, 15.3-706R |
| 12 | 293710136 | Y-Fitting, 5/16'' |
| 13 | 293830037 | Rubber Washer |
| 19 | 414115200 | Tie-Rap 180 mm |
| 28 | 709000413 | Rollover Valve This part replaces 709000127. |
| 34 | 709000529 | Fuel Cap This part replaces 709000268. |
| 35 | 709000274 | Ring |
| 36 | 709000275 | O-Ring |
| 40 | 709000288 | Neoprene Pad |
| 42 | 709000289 | NEOPRENE PAD - Call your local BRP dealership |
| 43 | 709000330 | Filter |
| 45 | 219704410 | Polyurethane Hose 10000Mm Long |
| 46 | 709000759 | Fuel Pump This part replaces 709000362. |
| 47 | 219704440 | Was 709000163 Fuel Line |
| 49 | 219704440 | Was 709000163 Fuel Line |
| 50 | 219704440 | Was 709000163 Fuel Line |
| 51 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 53 | 709000753 | Fuel Tank This part replaces 709000467. |
