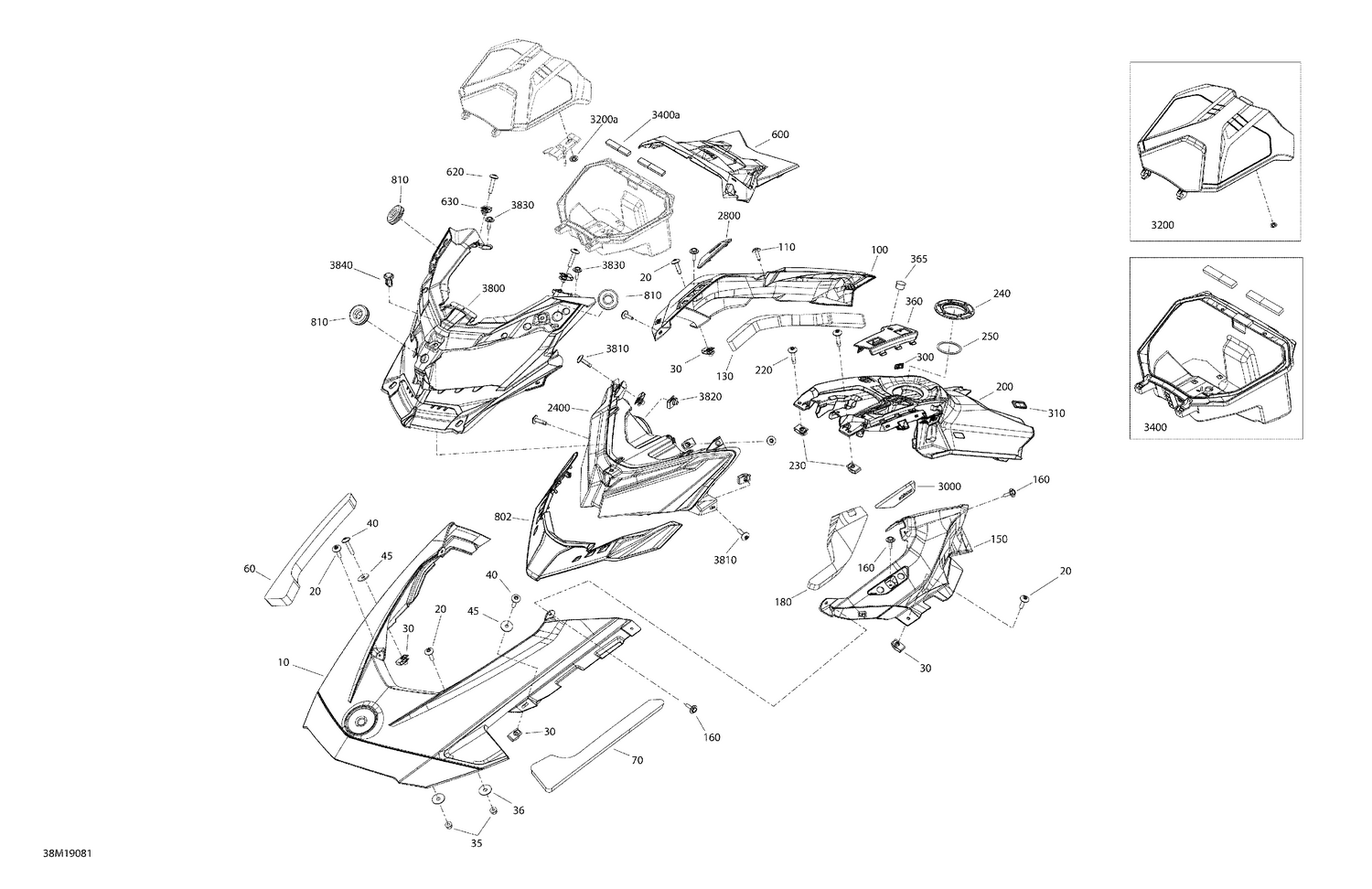

09- Hood - Hood Section
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 517306650 | Nordic Teal, Front Hood |
| 20 | 250000528 | Torx Screw M5 X 20 |
| 30 | 250000958 | Panel Nut M5 X 0.8 |
| 35 | 233151414 | Hex. Flange Nut M5 |
| 36 | 250200040 | Flat Washer |
| 40 | 250000587 | Torx Screw M5 X 26 |
| 45 | 250200166 | Washer |
| 60 | 517305763 | RH Front Hood Foam |
| 70 | 517305764 | LH Front Hood Foam |
| 100 | 517306651 | Nordic Teal, RH Hood |
| 110 | 250000725 | Screw M4 X 16 |
| 130 | 517306001 | RH Hood Foam |
| 150 | 517306652 | Nordic Teal, LH Hood |
| 160 | 250000725 | Screw M4 X 16 |
| 180 | 517306002 | LH Hood Foam |
| 200 | 517307685 | Rear Console This part replaces 517306898. |
| 220 | 250000587 | Torx Screw M5 X 26 |
| 230 | 250000958 | Panel Nut M5 X 0.8 |
| 240 | 517306602 | Console Nut |
| 250 | 706002839 | O-Ring |
| 300 | 517306587 | RH Cap |
| 310 | 517306588 | LH Cap |
| 360 | 517306583 | LH Front Console |
| 365 | 572051500 | Cap |
| 600 | 517305782 | Indicator Support |
| 620 | 250000587 | Torx Screw M5 X 26 |
| 630 | 250000958 | Panel Nut M5 X 0.8 |
| 802 | 517305875 | Deep Black, Wind Deflector |
| 810 | 517303756 | Grommet |
| 2400 | 517305752 | Headlamp |
| 2400a | 415130081 | Bulb |
| 2800 | 517306049 | RH Hood Plate |
| 3000 | 517306050 | LH Hood Plate |
| 3200a | 732610072 | Push Nut |
| 3400a | 517305157 | Seal Joint |
| 3800 | 517306653 | Headlamp Fairing |
| 3810 | 250000528 | Torx Screw M5 X 20 |
| 3820 | 250000958 | Panel Nut M5 X 0.8 |
| 3830 | 250000725 | Screw M4 X 16 |
