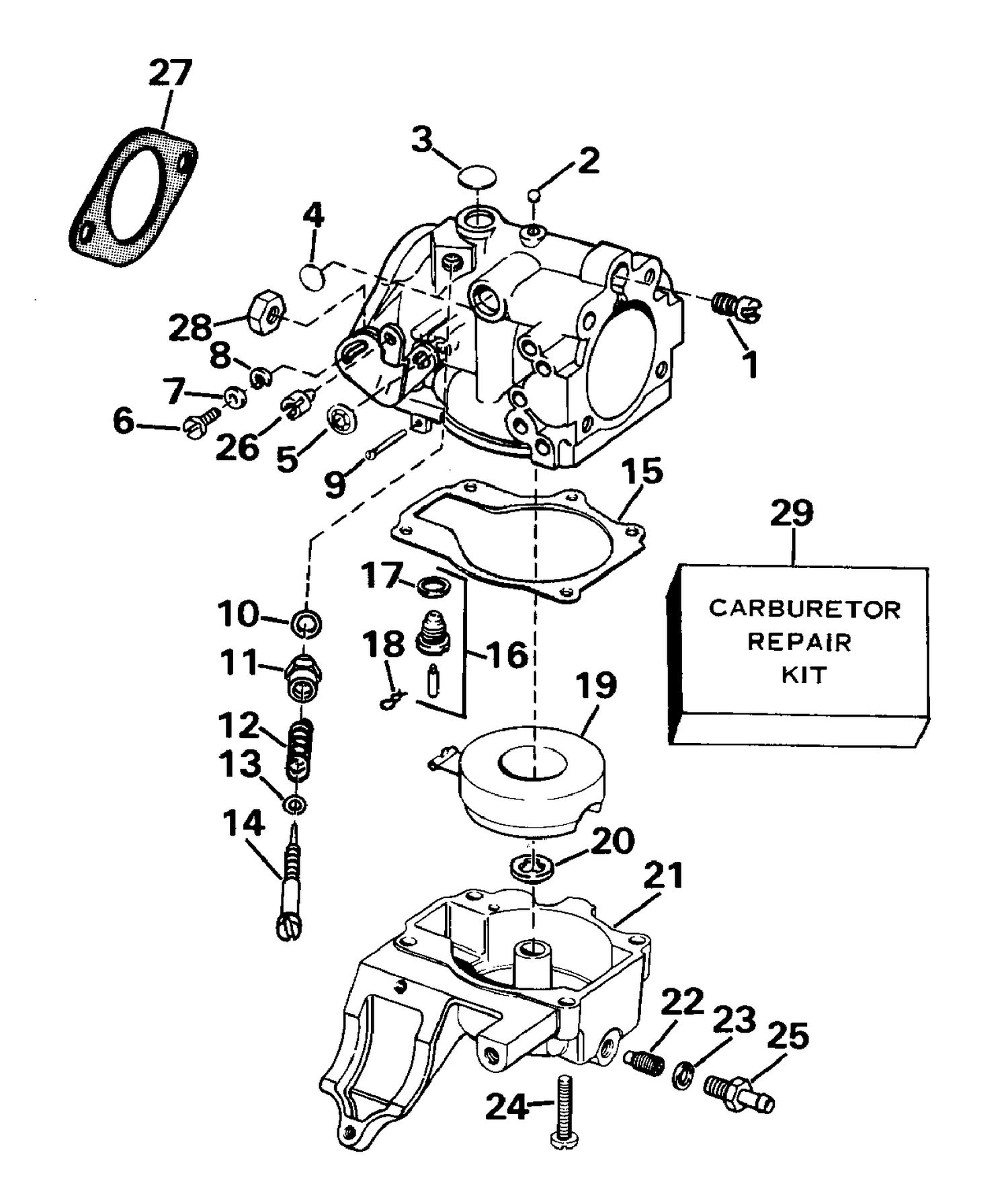

CARBURETOR
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 18 | 0336842 | CLIP, SPRING This part replaces 0603145. |
| 21 | 0439383 | FLOAT CHAMBER This part replaces 0393131. |
| 22 | 0327541 | ORIFICE PLUG (#51D) |
| 24 | 0329513 | SCREW, Float bowl |
| 26 | 0313329 | LOCKWASHER, Carburetor link |
| 27 | 0325092 | GASKET |
| 28 | 0316355 | BUT, Carburetor mounting |
| 0432704 | 0439388 | CARBURETOR ASSEMBLY This part replaces 0432704. |
| 0432705 | 0432705 | CARBURETOR ASSEMBLY |
