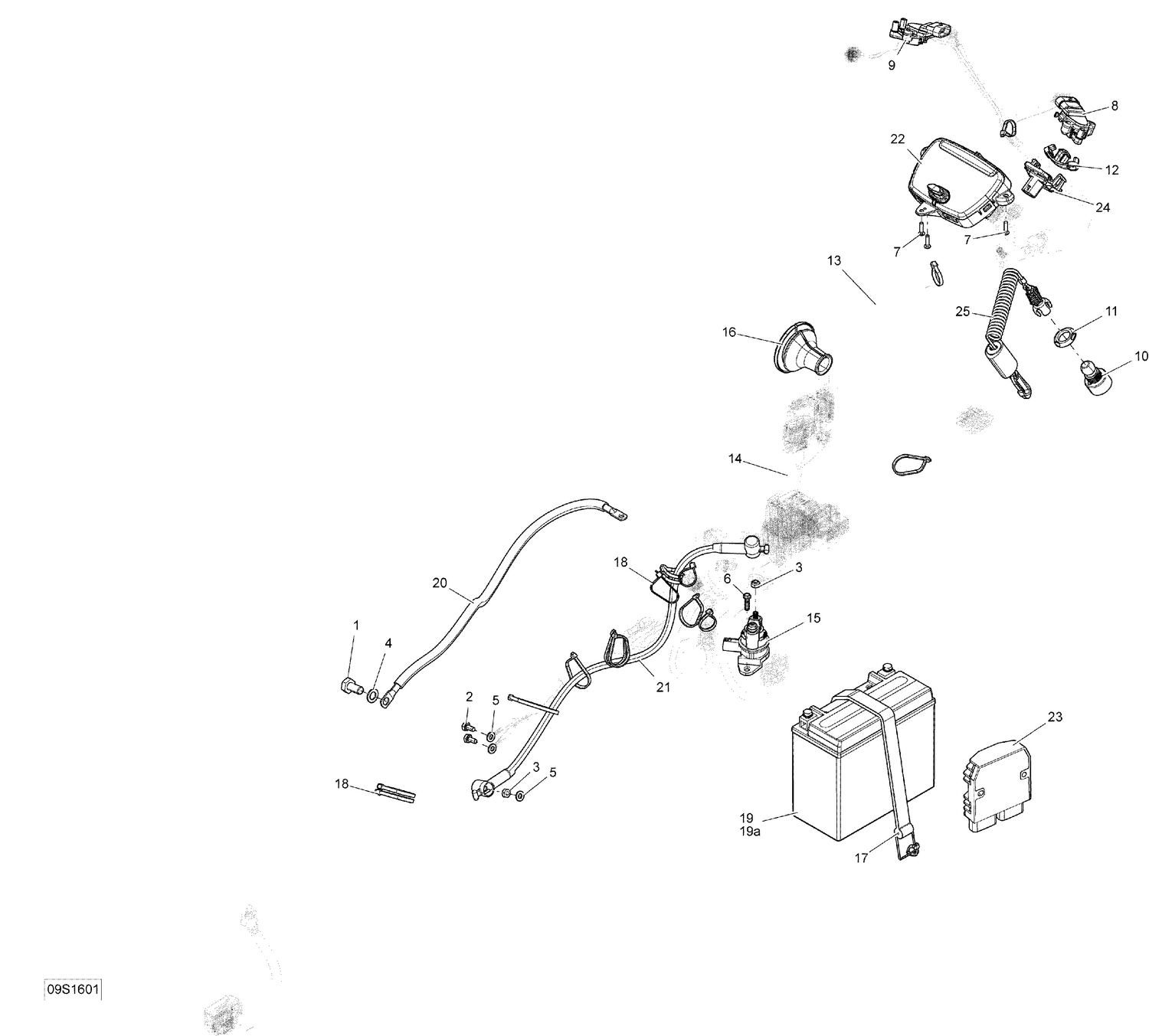

10- Electrical System
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207302060 | Hex. Screw M10 X 20, Scotch Grip |
| 2 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 3 | 232561200 | Brass Elastic Stop Nut M6 |
| 4 | 234000600 | Flat Washer 10 mm, Stainless |
| 5 | 234061600 | Stainless Flat Washer M6 |
| 6 | 241152060 | Hex. Flange Screw K50 X 20 |
| 7 | 250000287 | Flange Torx Screw K40 X 16 |
| 8 | 278002283 | Throttle Position Sensor |
| 9 | 278002284 | LH Throttle Sensor |
| 11 | 278002963 | Safety Nut (DESS Switch) |
| 12 | 278003537 | O.T.A.S Actuator This part replaces 278003053. |
| 15 | 278003012 | Starter Relay |
| 16 | 293720092 | Cable Grommet |
| 17 | 293850093 | Fuel Tank Strap |
| 18 | 414115200 | Tie-Rap 180 mm |
| 19 | 410301203 | Battery YUASA YTX20L |
| 19a | 250000282 | Battery Bolt Kit |
| 21 | 278003268 | Starter Cable |
| 23 | 710001103 | Voltage Regulator |
| 24 | 278003008 | O.T.A.S. Sensor |
