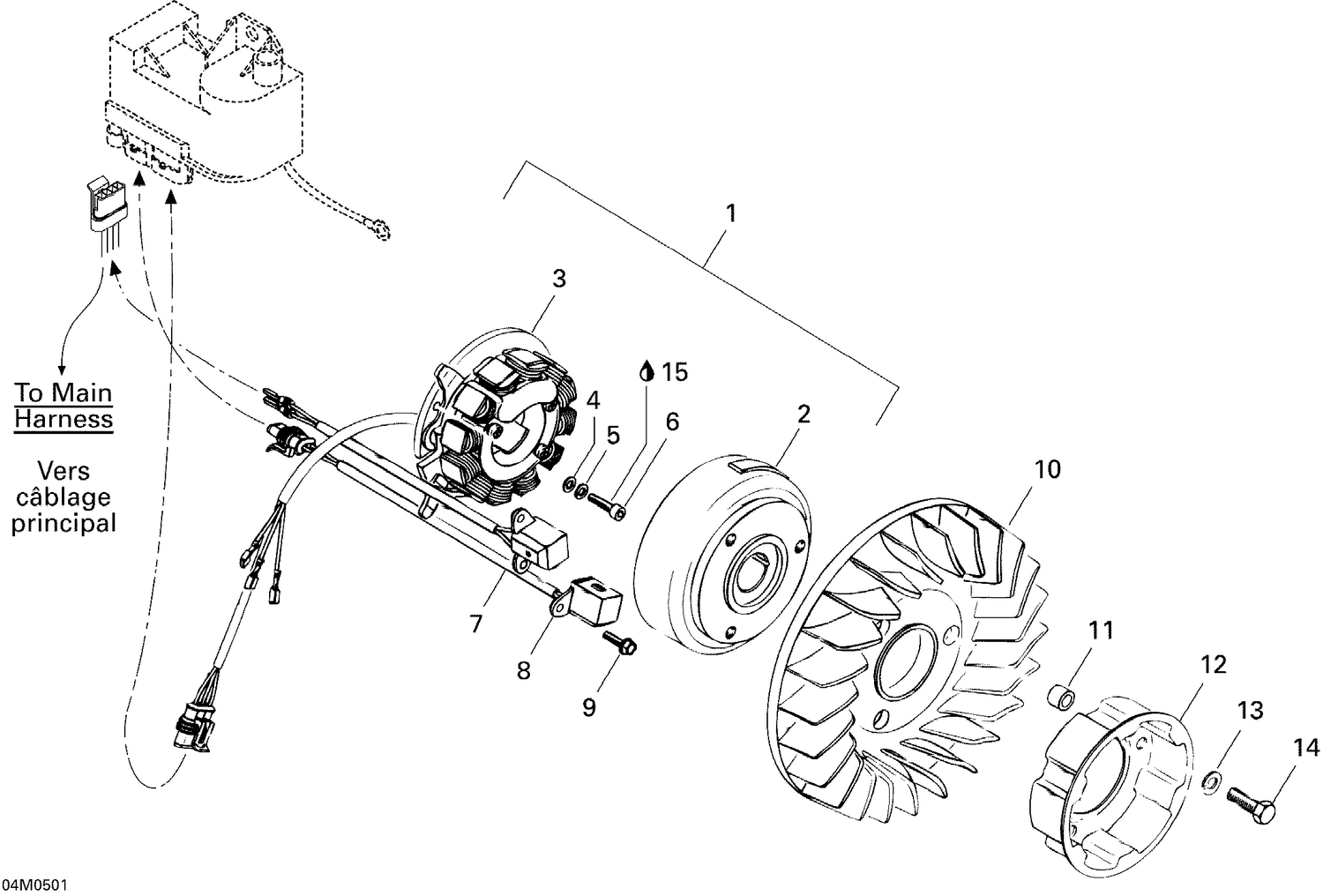

| Ref | Part Number | Description |
|---|
| 1 |
420887658 |
DUCATI MAGNETO 12 V 240W ASS'Y - Call your local BRP dealership |
| 2 |
420996829 |
FLYWHEEL - Call your local BRP dealership |
| 3 |
420886608 |
STATOR PLATE ASS'Y - Call your local BRP dealership |
| 4 |
420927574 |
Washer 5.3 This part replaces 420927571. |
| 5 |
420945750 |
Lock Washer |
| 6 |
420840515 |
SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership |
| 7 |
420966544 |
Pick Up Ass'y |
| 8 |
420966542 |
Pick Up Ass'y |
| 9 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 10 |
420866435 |
FAN - Call your local BRP dealership |
| 11 |
420847440 |
SPACER BUSHING - Call your local BRP dealership |
| 12 |
420852590 |
Starting Pulley This part replaces 420852419. |
| 13 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 14 |
207182544 |
Hex. Screw M8 X 25 |
