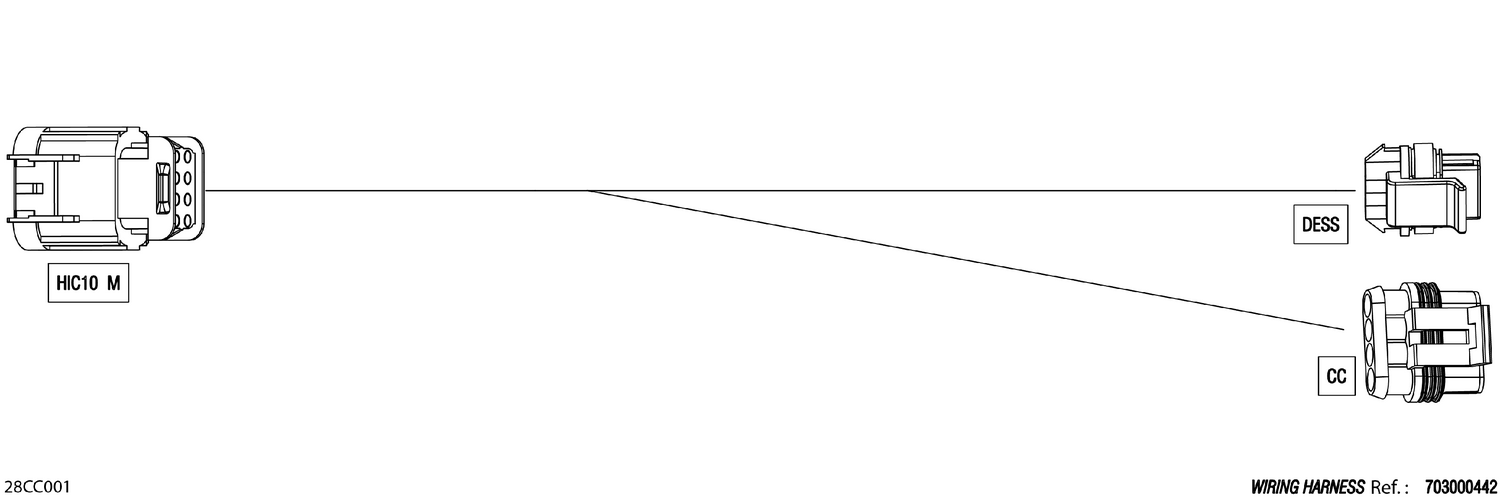

08- Electric - Key Wiring Harness - 710008863
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| CC | 409209700 | Female Housing, 4 Circuits |
| CC | 515176621 | Wire Seal |
| CC | 710001340 | Female Terminal |
| DESS | 710001161 | Housing |
| DESS | 710001162 | Lock |
| DESS | 710001163 | Wire Seal |
| DESS | 710001164 | Female Terminal |
| DESS | 710001225 | Cap |
| HIC10_M | 710001225 | Cap |
| HIC10_M | 710001233 | Seal |
| HIC10_M | 710001927 | Housing |
| HIC10_M | 710006181 | Lock |
| 25 | 710008863 | Wiring Harness |
