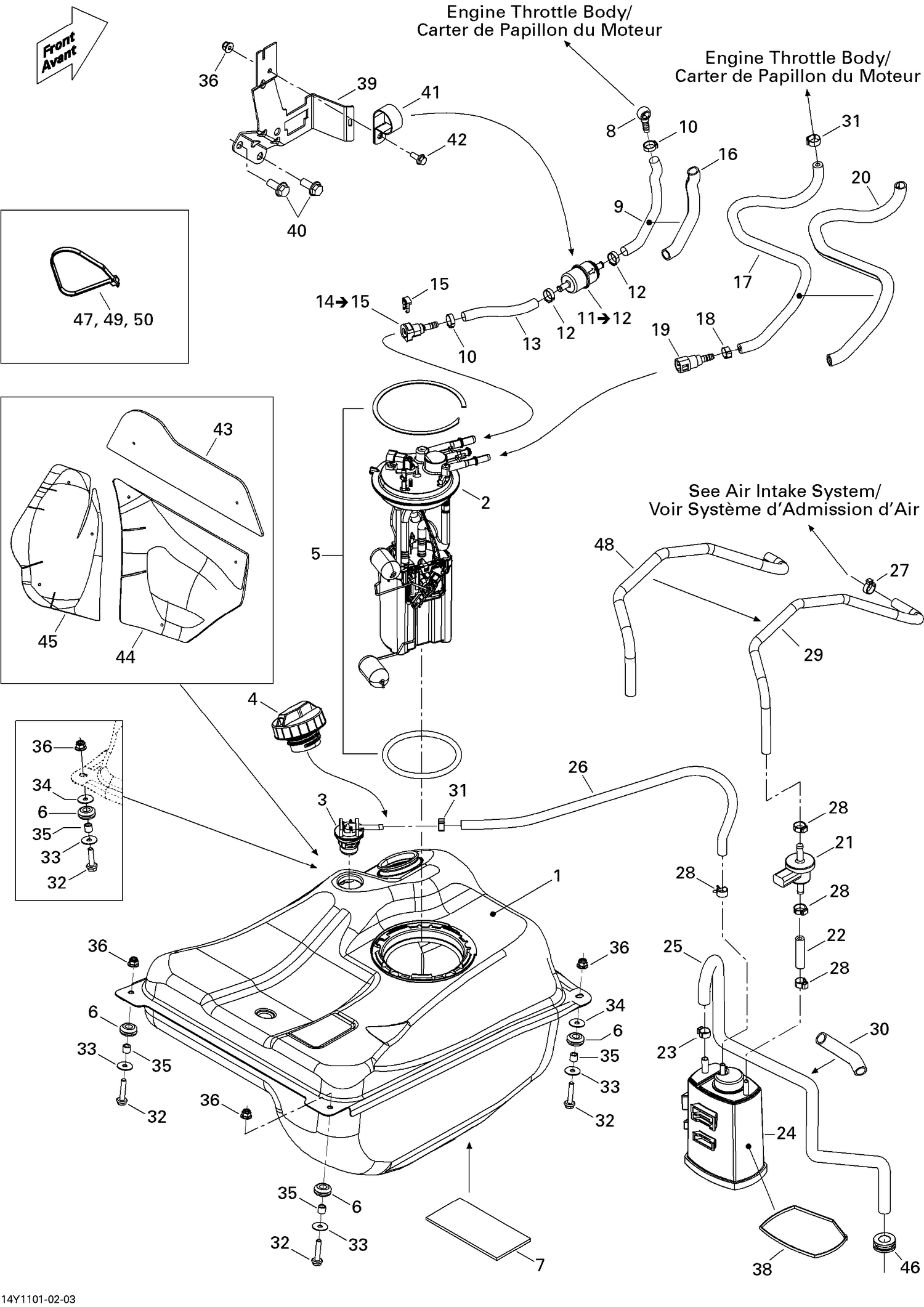

02- Fuel System
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 709000314 | Fuel Tank |
| 2 | 709000088 | Pump Module |
| 3 | 709000413 | Rollover Valve This part replaces 709000127. |
| 4 | 709000660 | Fuel Cap This part replaces 709000414. |
| 5 | 219800248 | Seal Kit This part replaces 709000203. |
| 6 | 709000582 | Grommet This part replaces 293720053. |
| 7 | 709000130 | Carpet |
| 8 | 709000137 | BANJO FITTING - Call your local BRP dealership |
| 9 | 709000264 | Fuel Line 7.9 mm, Meter |
| 10 | 293650125 | Oetiker Clamp |
| 12 | 293650125 | Oetiker Clamp |
| 13 | 709000265 | Fuel Line 7.9 mm, Meter |
| 15 | 513033135 | Locking Clip |
| 16 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 17 | 709000266 | HOSE 6,35MM ID - 620MM - Call your local BRP dealership |
| 18 | 293650046 | Oetiker Clamp |
| 19 | 293710192 | Quick Connect Pipe Fitting This part replaces 709000141. |
| 20 | 513033412 | Tubing |
| 21 | 709000443 | Bleed Valve This part replaces 709000108. |
| 22 | 709000254 | HOSE - Call your local BRP dealership |
| 23 | 293650047 | Crimp Clamp, 15.3-706R |
| 24 | 709000090 | Vapor Canister |
| 25 | 709000277 | Formed Hose |
| 26 | 513033565 | Hose |
| 27 | 293650047 | Crimp Clamp, 15.3-706R |
| 28 | 293650025 | Oetiker Gear Clamp |
| 30 | 513033412 | Tubing |
| 31 | 293650025 | Oetiker Gear Clamp |
| 32 | 207662544 | Hex. Flange Screw M6 X 25 |
| 33 | 224060201 | Flat Washer |
| 34 | 224060201 | Flat Washer |
| 35 | 709000162 | Bushing |
| 36 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 38 | 293750008 | Tie Wrap 368 mm |
| 39 | 709000150 | Support |
| 40 | 207602544 | Hex. Flange Screw M10 X 25 |
| 41 | 513033047 | Open Clamp |
| 42 | 207661644 | Hex. Flange Screw M6 X 16 |
| 43 | 709000157 | Reflective Sheet |
| 44 | 709000158 | REFLECTIVE SHEET - Call your local BRP dealership |
| 45 | 709000159 | REFLECTIVE SHEET - Call your local BRP dealership |
