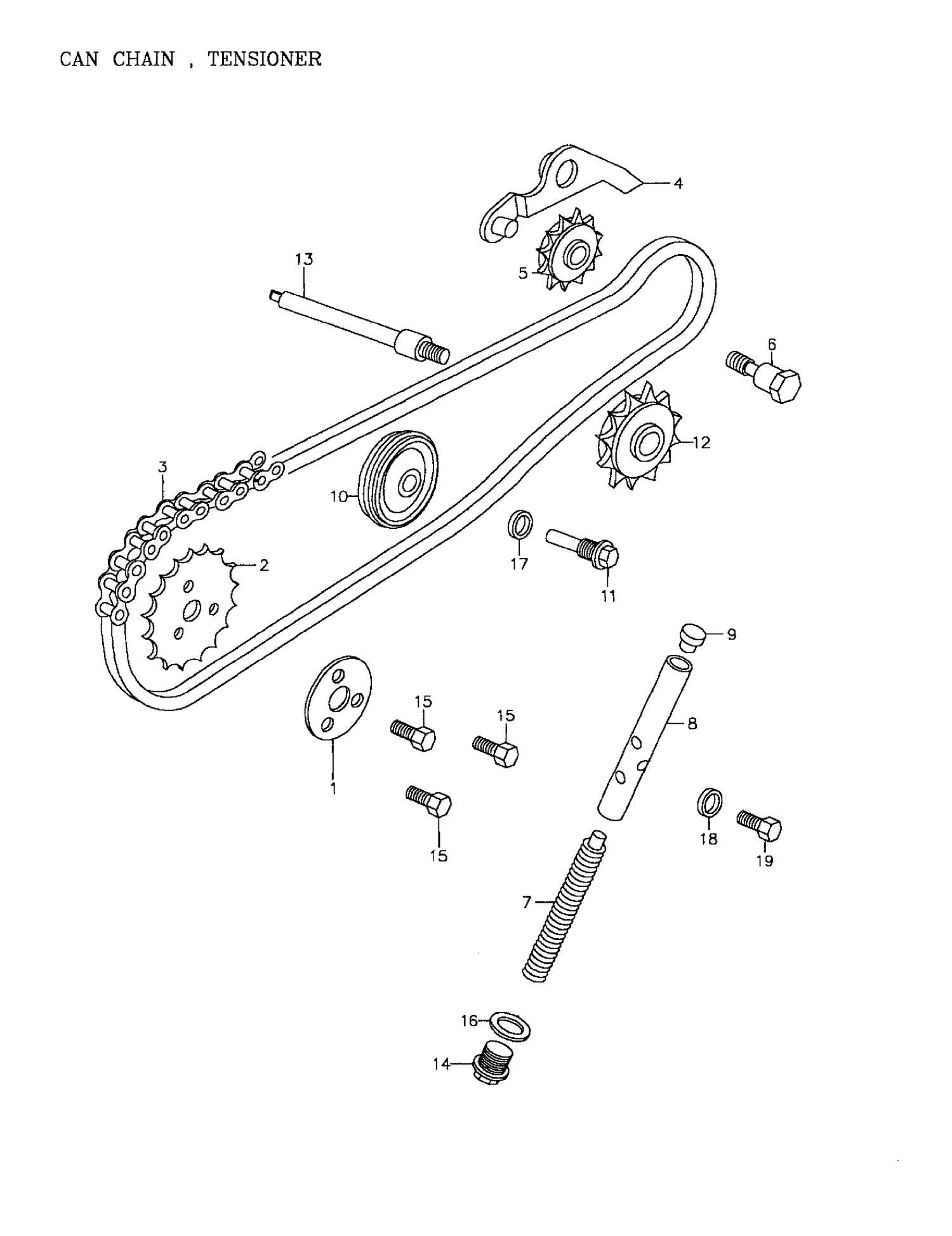

05- Cam Chain, Tensioner 172-04
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A14101152000 | Cam Shaft Washer |
| 2 | A14321152000 | Cam Sprocket |
| 3 | A14401152000 | CAM CHAIN - Call your local BRP dealership |
| 4 | A14500152000 | Cam Chain Tensioner |
| 5 | A14502152000 | Cam Chain Tensioner Roller |
| 6 | A14531152000 | Cam Chain Tensioner Pivot |
| 7 | A14530152000 | CAM CHAIN TENSION ARM SPRING - Call your local BRP dealership |
| 8 | A14564152000 | TENSIONER PUSH ROD - Call your local BRP dealership |
| 9 | A14562152000 | TENSIONER PUSH ROD HEAD - Call your local BRP dealership |
| 10 | A14610152000 | Cam Chain Roller Guide |
| 11 | A14615152000 | Roller Pin Guide |
| 12 | A14670152000 | CAM CHAIN SPROCKET - Call your local BRP dealership |
| 13 | A14675152000 | CAM CHAIN SPROCKET SPINDLE - Call your local BRP dealership |
| 14 | A960001401114 | Hex. Washer Face Bolt M14 X 11.5 |
| 15 | A920000501209 | Hex. Bolt M5 X 12 |
| 16 | A941041420016 | Plain Washer, 14 X 20 X 1.6 |
| 17 | A941010814010 | Plain Washer (8 x 14 x 1) |
| 18 | A941030612010 | Sealing Washer, 6 X 12 X 1 |
| 19 | A960000601610 | Hex. Washer Face Bolt M6 X 16 |
