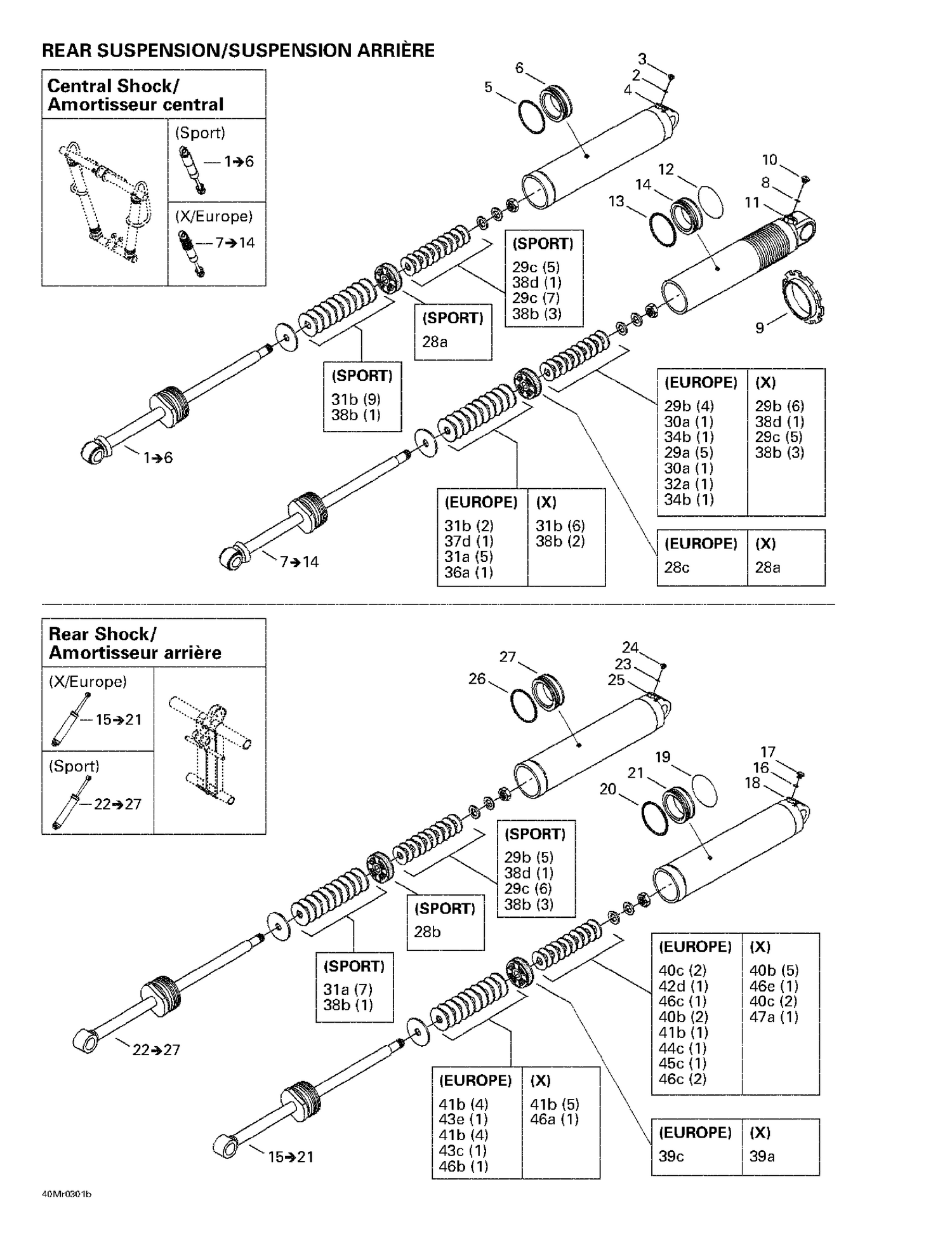

08- Rear Take Apart Shocks

08- Rear Take Apart Shocks

Parts (92)

RefPart NumberDescription
2 505070400 O-Ring
3 505070399 Screw
4 505070398 Air Valve
5 414888312 O-Ring
6 415097900 Free Piston
8 505070400 O-Ring
9 414888316 SPRING COLLAR - Call your local BRP dealership
10 505070399 Screw
11 505070398 Air Valve
12 503189308 Piston Ring
13 414888312 O-Ring
14 503189309 FREE PISTON - Call your local BRP dealership
16 505070400 O-Ring
17 505070399 Screw
18 505070398 Air Valve
19 503189006 PISTON RING - Call your local BRP dealership
20 503189007 O-RING - Call your local BRP dealership
21 503189008 FLOTTING PISTON - Call your local BRP dealership
23 505070400 O-Ring
24 505070399 Screw
25 505070398 Air Valve
26 414888312 O-Ring
27 415097900 Free Piston
28A 414888307 Piston (2 X 0.3-6) (C36)
28B 414888306 Piston (2 X 0.3-4) (C36)
28C 414888305 Piston (2 X 0.3-2) (C36)
28D 414888304 Piston (C36)
29A 415039100 Leaf Valve Ø30 X 0.254 (C36)
29B 414888318 Leaf Valve Ø30 X 0.203 (C36)
29C 414888319 Leaf Valve Ø30 X 0.152 (C36)
30A 414888320 Leaf Valve Ø28 X 0.203 (C36)
30B 414888321 Leaf Valve Ø28 X 0.152 (C36)
31A 415039000 Leaf Valve Ø26 X 0.254 (C36)
31B 414888322 Leaf Valve Ø26 X 0.203 (C36)
31C 414888323 Leaf Valve Ø26 X 0.152 (C36)
32A 414888324 Leaf Valve Ø22 X 0.203 (C36)
32B 414888325 Leaf Valve Ø22 X 0.152 (C36)
33A 414888340 Leaf Valve Ø21 X 0.114 (C36)
34A 414888326 Leaf Valve Ø20 X 0.203 (C36)
34B 414888327 Leaf Valve Ø20 X 0.152 (C36)
34C 414888328 Leaf Valve Ø20 X 0.114 (C36)
35A 414888329 Leaf Valve Ø18 X 0.203 (C36)
35B 414888330 Leaf Valve Ø18 X 0.152 (C36)
36A 414888331 Leaf Valve Ø16 X 0.254 (C36)
36B 414888332 Leaf Valve Ø16 X 0.203 (C36)
36C 414888333 Leaf Valve Ø16 X 0.152 (C36)
36D 415038900 Leaf Valve Ø16 X 0.114 (C36)
37A 414888334 Leaf Valve Ø15 X 0.254 (C36)
37B 414888335 Leaf Valve Ø15 X 0.203 (C36)
37C 414888336 Leaf Valve Ø15 X 0.152 (C36)
37D 414888337 Leaf Valve Ø15 X 0.114 (C36)
38A 503189538 Leaf Valve Ø12 X 0.254 (C36)
38B 414888338 Leaf Valve Ø12 X 0.203 (C36)
38C 414888339 Leaf Valve Ø12 X 0.152 (C36)
38D 415038800 Leaf Valve Ø12 X 0.114 (C36)
39A Not Available As Spare Part - Piston (Ø2.0) (C46)
39B 503189002 Piston, Ø1.7 (C46)
39C Not Available As Spare Part - Piston (Ø1.4) (C46)
39D 503189003 Piston, Ø1.2 (C46)
39E 503189004 Piston (C46)
40A 503189041 Leaf Valve Ø40 X 0.254 (C46)
40B 503189040 Leaf Valve Ø40 X 0.203 (C46)
40C 503189039 Leaf Valve Ø40 X 0.152 (C46)
41A 503189038 Leaf Valve Ø36 X 0.254 (C46)
41B 503189037 Leaf Valve Ø36 X 0.203 (C46)
41C 503189036 Leaf Valve Ø36 X 0.152 (C46)
41E 503189031 Leaf Valve Ø30 X 0.114 (C46)
42A 503189035 Leaf Valve Ø30 X 0.305 (C46)
42B 503189034 Leaf Valve Ø30 X 0.254 (C46)
42C 503189033 Leaf Valve Ø30 X 0.203 (C46)
42D 503189032 Leaf Valve Ø30 X 0.152 (C46)
43A 503189030 Leaf Valve Ø28 X 0.305 (C46)
43B 503189029 Leaf Valve Ø28 X 0.254 (C46)
43C 503189028 Leaf Valve Ø28 X 0.203 (C46)
43D 503189027 Leaf Valve Ø28 X 0.152 (C46)
43E 503189026 Leaf Valve Ø28 X 0.114 (C46)
44A 503189025 Leaf Valve Ø26 X 0.305 (C46)
44B 503189024 Leaf Valve Ø26 X 0.254 (C46)
44C 503189023 Leaf Valve Ø26 X 0.203 (C46)
44D 503189022 Leaf Valve Ø26 X 0.152 (C46)
44E 503189021 Leaf Valve Ø26 X 0.114 (C46)
45A 503189020 Leaf Valve Ø24 X 0.305 (C46)
45B 503189019 Leaf Valve Ø24 X 0.254 (C46)
45C 503189018 Leaf Valve Ø24 X 0.203 (C46)
45D 503189017 Leaf Valve Ø24 X 0.152 (C46)
45E 503189016 Leaf Valve Ø24 X 0.114 (C46)
46A 503189015 Leaf Valve Ø22 X 0.305 (C46)
46B 503189014 Leaf Valve Ø22 X 0.254 (C46)
46C 503189013 Leaf Valve Ø22 X 0.203 (C46)
46D 503189012 Leaf Valve Ø22 X 0.152 (C46)
46E 503189011 Leaf Valve Ø22 X 0.114 (C46)
47A Not Available As Spare Part - Leaf valve Ø19 x 0.700 (C46)
