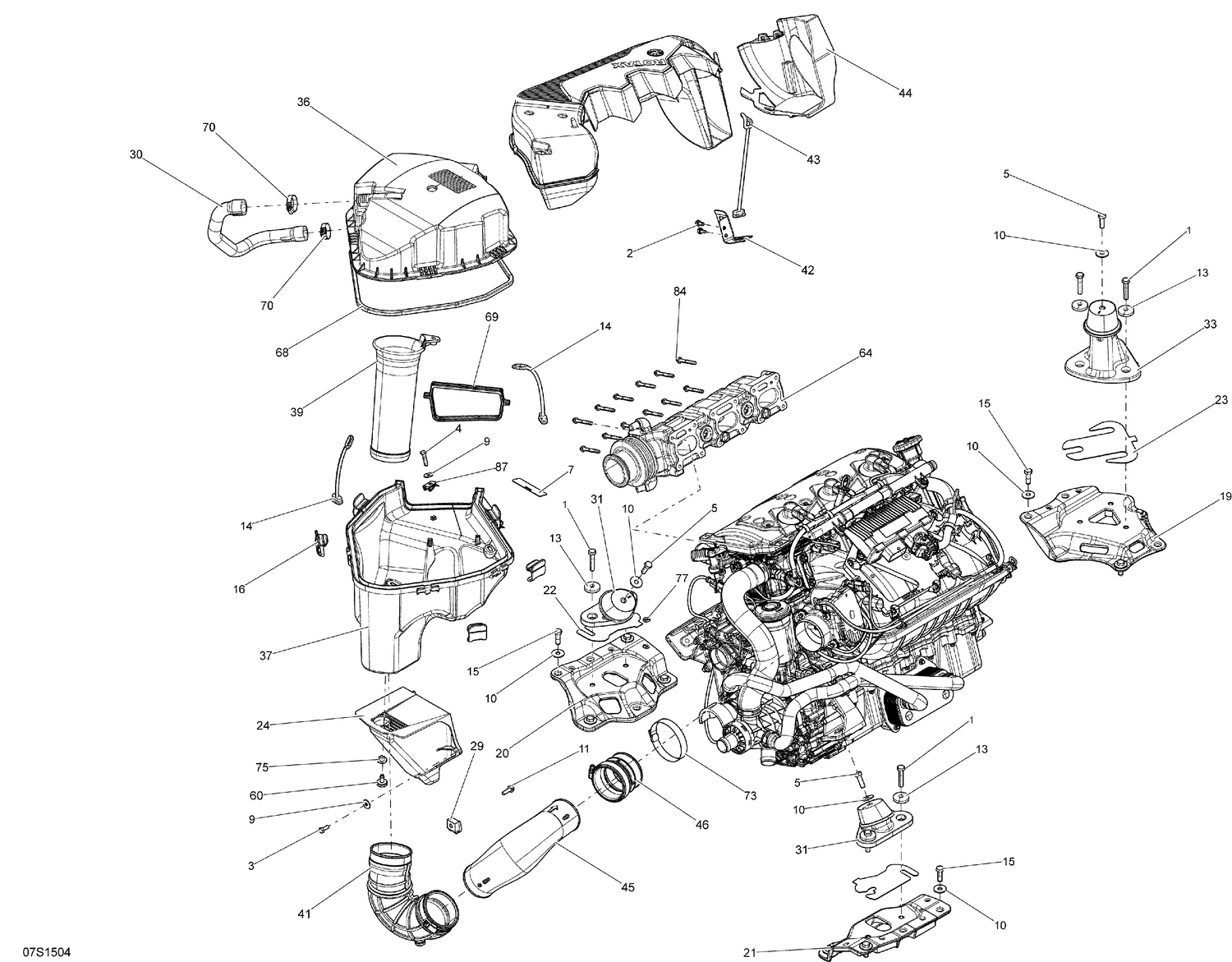

01- Engine _07S1504
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 3 | 207361660 | Hex. Screw M6 X 16, Scotch Grip |
| 4 | 207362560 | Hex. Screw M6 X 25, Scotch Grip |
| 5 | 207382560 | Hex. Screw M8 X 25, Scotch Grip |
| 7 | 219903177 | Air Silencer Notice Decal |
| 9 | 234062600 | Flat Washer M6, Stainless |
| 10 | 234082600 | Flat Washer 8 mm, Stainless |
| 11 | 243162060 | Hex. Flange Screw M6.81 x 20 |
| 13 | 250200018 | Cone Washer |
| 14 | 269502109 | Strap |
| 15 | 250000525 | Hex. Screw M8 X 25, Scotch Grip |
| 16 | 269501718 | Clip |
| 19 | 270000767 | SPACER - Call your local BRP dealership |
| 20 | 270000763 | SPACER - Call your local BRP dealership |
| 21 | 270000766 | Spacer |
| 22 | 270000762 | Shim 1.3 mm |
| 23 | 270000770 | Shim 1.3 mm |
| 24 | 270000791 | AIR BOX SUPPORT - Call your local BRP dealership |
| 30 | 270000948 | FORMED HOSE - Call your local BRP dealership |
| 36 | 273000249 | Air Silencer Upper |
| 37 | 273000250 | AIR SILENCER LOW - Call your local BRP dealership |
| 39 | 273000359 | Intake Hose This part replaces 273000252. |
| 41 | 273000257 | CONNECTOR HOSE - Call your local BRP dealership This part replaces 273000347. |
| 43 | 273000344 | Strap |
| 45 | 273000327 | HOSE INTAKE - Call your local BRP dealership |
| 46 | 273000277 | Intake Fitting |
| 60 | 275500454 | CHECK VALVE - Call your local BRP dealership |
| 64 | 296000422 | Engine Exhaust Manifold 0990732-00 - 150 This part replaces 274001553. |
| 68 | 293200123 | NEOPRENE SEAL - Call your local BRP dealership |
| 69 | 293250190 | SEAL - Call your local BRP dealership |
| 70 | 293650051 | Tridon Gear Clamp |
| 73 | 293650179 | Tridon Clamp |
| 75 | 293720107 | Wire Grommet |
| 77 | 293750002 | Tie Wrap 142 mm |
| 84 | 420641198 | Torx Flange Screw M6 X 45 |
