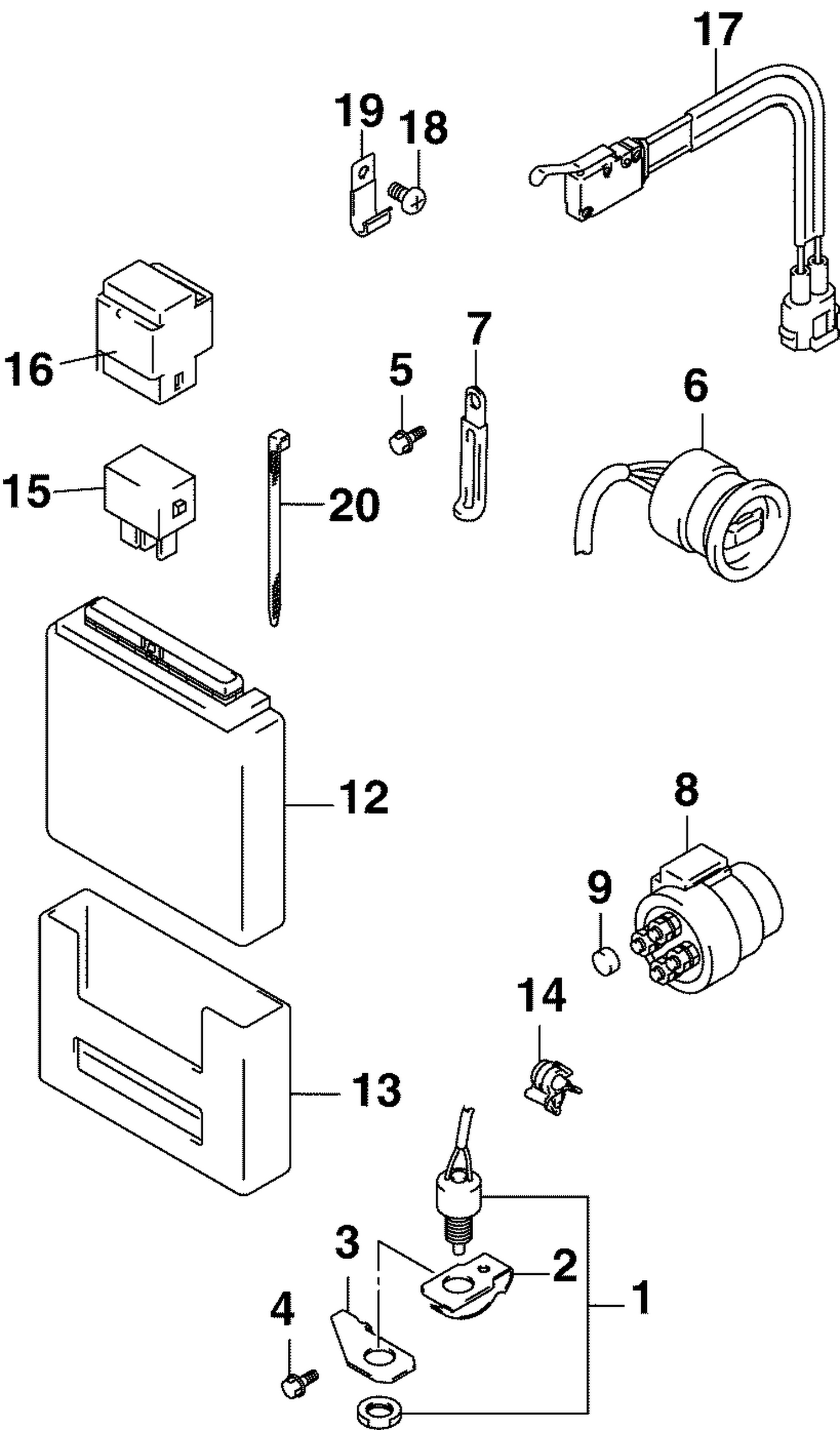

ENGINE CONTROL UNIT
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5033257 | SWITCH, NEUTRAL |
| 2 | 5030824 | COMMANDE, INTERRUPTEUR DE DÉMARRAGE AU POINT MORT |
| 3 | 5032855 | BRACKET, Neutral switch |
| 5 | 5030987 | BOLT |
| 6 | 5037191 | SWITCH, TRIM/TILT This part replaces 5030827. |
| 7 | 5030135 | BRIDE |
| 8 | 5031483 | RELAY, TRIM/TILT This part replaces 5034362. |
| 9 | 5030529 | CAP |
| 13 | 5032441 | CUSHION, ENGINE CONTROL UNIT |
| 14 | 5030583 | CLAMP |
| 17 | 5037194 | SWITCH, TILT LIMIT This part replaces 5034516. |
| 18 | 5034517 | BOLT |
| 19 | 5034518 | CLAMP |
