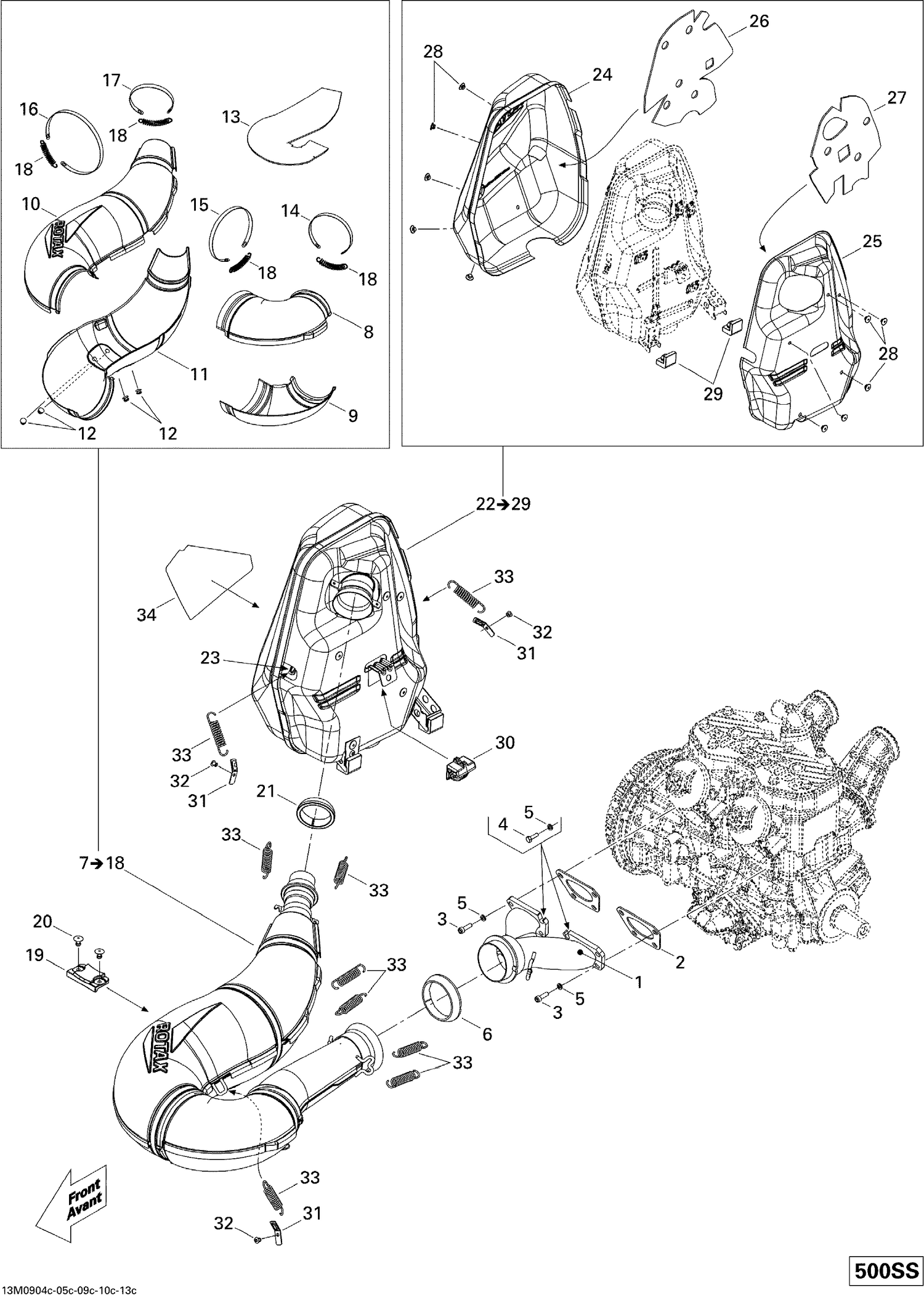

01- Exhaust System
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420673131 | Exhaust Manifold |
| 2 | 420931610 | Gasket |
| 3 | 205082544 | Socket Head Screw M8 X 25 |
| 4 | 207182044 | Hex. Screw M8 X 20 |
| 5 | 514053837 | Washer |
| 6 | 514053487 | Exhaust Gasket |
| 8 | 514054992 | Front Upper Half Enveloppe This part replaces 514054485. |
| 9 | 514054993 | Front Lower Half Enveloppe This part replaces 514054486. |
| 10 | 514055039 | Rear Upper Half Enveloppe This part replaces 514054590. |
| 11 | 514054990 | Rear Lower Half Enveloppe This part replaces 514054279. |
| 12 | 293150091 | Henrob Rivet |
| 13 | 514054487 | Insulating Wool |
| 14 | 514054408 | Retaining Strap |
| 15 | 514054409 | Retaining Strap |
| 16 | 514054410 | Retaining Strap |
| 17 | 514053499 | Retaining Strap |
| 18 | 514053643 | Spring |
| 19 | 514054275 | Bumper |
| 20 | 293150103 | Pop Rivet 3/16" |
| 21 | 514053812 | Exhaust Gasket |
| 23 | 514054155 | Spring Bracket |
| 24 | 514054984 | RH Deflector This part replaces 514054433. |
| 25 | 514054202 | LH DEFLECTOR - Call your local BRP dealership |
| 26 | 514054298 | RH INSULATING WOOL - Call your local BRP dealership |
| 27 | 514054299 | LH Insulating Wool |
| 28 | 390910000 | Pop Rivet 3/16” |
| 29 | 514054274 | Lower Stopper |
| 30 | 514054606 | Upper Stopper |
| 31 | 514054522 | Spring Bracket This part replaces 514054391. |
| 32 | 390402200 | Pop Rivet 3/16" |
| 33 | 514054226 | Spring |
