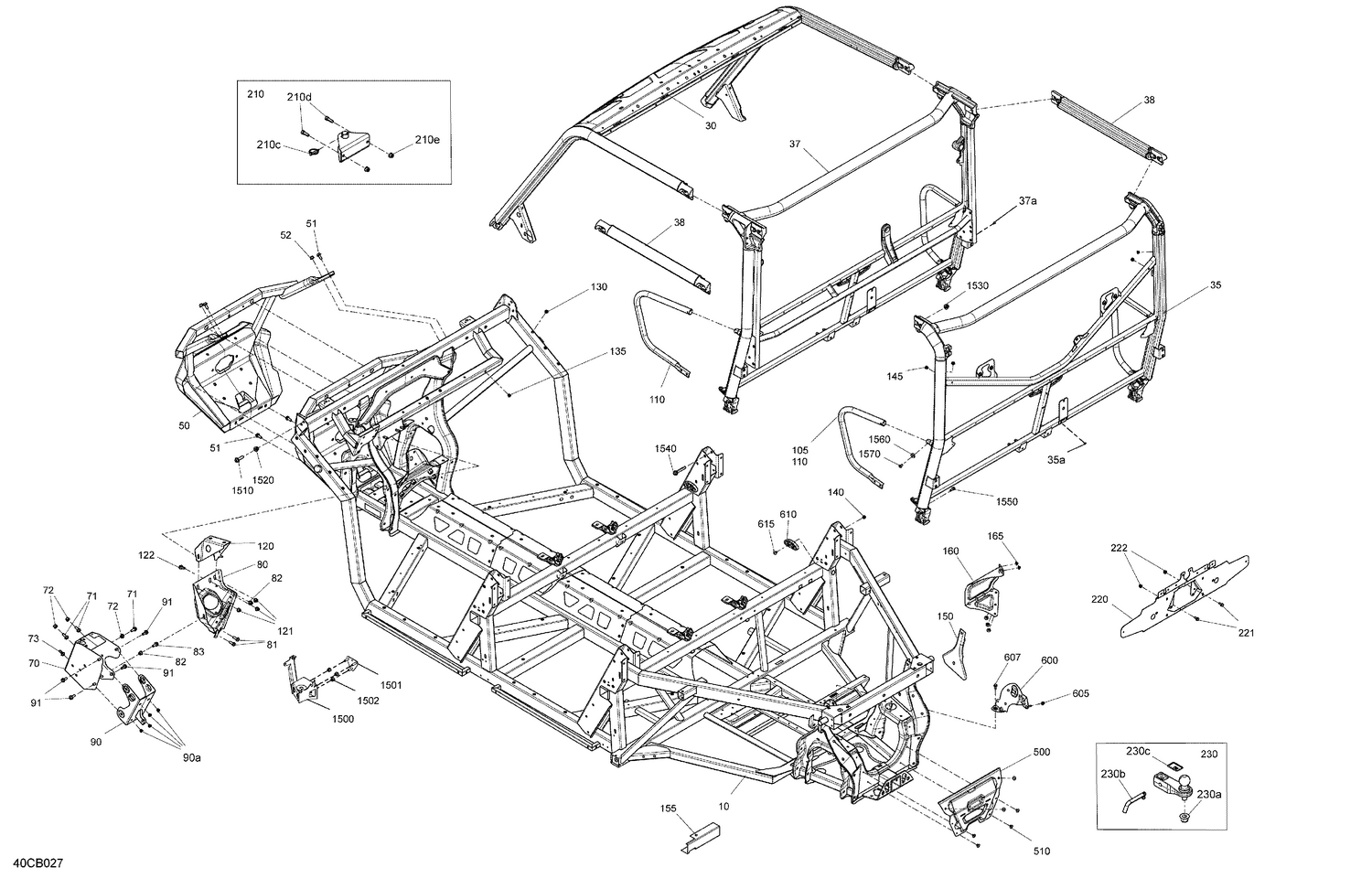

06- Frame - System
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 390402200 | Pop Rivet 3/16" |
| 30 | 715008425 | Front Cage Ass'y |
| 35a | 390402200 | Pop Rivet 3/16" |
| 37a | 390402200 | Pop Rivet 3/16" |
| 38 | 705209848 | Deep Black, Cage Extension |
| 50 | 705207588 | Deep Black, Front Bumper |
| 51 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 52 | 233281416 | Hex. Elastic Flange Nut M8 |
| 70 | 705209388 | Module Support |
| 71 | 207682044 | Hex. Flange Screw M8 X 20 |
| 72 | 233281416 | Hex. Elastic Flange Nut M8 |
| 73 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 80 | 705208741 | Power Steering Support |
| 81 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 82 | 233281416 | Hex. Elastic Flange Nut M8 |
| 83 | 207682044 | Hex. Flange Screw M8 X 20 |
| 90a | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 91 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 105 | 705204590 | LH Side Protect |
| 110 | 705204592 | Deep Black, RH Protector Tube |
| 120 | 705208742 | Support |
| 121 | 233281416 | Hex. Elastic Flange Nut M8 |
| 122 | 207682044 | Hex. Flange Screw M8 X 20 |
| 130 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 135 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 140 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 145 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 150 | 705014849 | Heat Shield |
| 155 | 705015496 | Heat Shield |
| 160 | 707002709 | Heat Shield |
| 165 | 293150103 | Pop Rivet 3/16" |
| 210c | 605456518 | Pin |
| 210d | 205003044 | Socket Screw M10 x 30 |
| 210e | 233201414 | Hex. Flange Elastic Nut M10 |
| 220 | 705014656 | Licence Plate Support |
| 221 | 207661644 | Hex. Flange Screw M6 X 16 |
| 222 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 230a | 250100104 | Elastic Flange Nut M20 |
| 230b | 705204490 | Hitch Pin |
| 230c | 704906897 | Hitch Approval Decal |
| 500 | 705207753 | Rear Chassis Reinforcement |
| 510 | 293150104 | Pop Rivet 3/16" |
| 600 | 710007522 | Voltage Regulator Support |
| 605 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 607 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 610 | 705208203 | Spacer |
| 615 | 293150104 | Pop Rivet 3/16" |
| 1500 | 705601905 | Module Support |
| 1501 | 705209564 | Support |
| 1502 | 233281416 | Hex. Elastic Flange Nut M8 |
| 1510 | 250000855 | Hex. Flange Screw M10 X 35 |
| 1520 | 233201436 | Hex. Flange Elastic Nut M10 |
| 1530 | 233201466 | Flange Elastic Nut M10 |
| 1540 | 207606046 | Hex. Flange Screw M10 X 6 |
| 1550 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 1560 | 705202223 | Offset Washer |
